Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Testing and Inspection >> Pinpoint Tests >> A: Drift Left or Right

A: Drift Left or Right

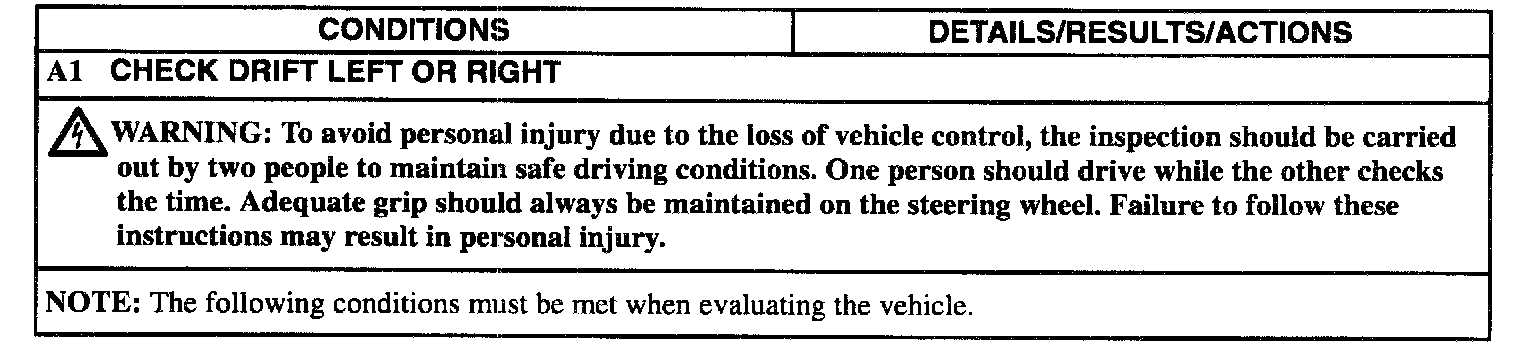

Test A1:

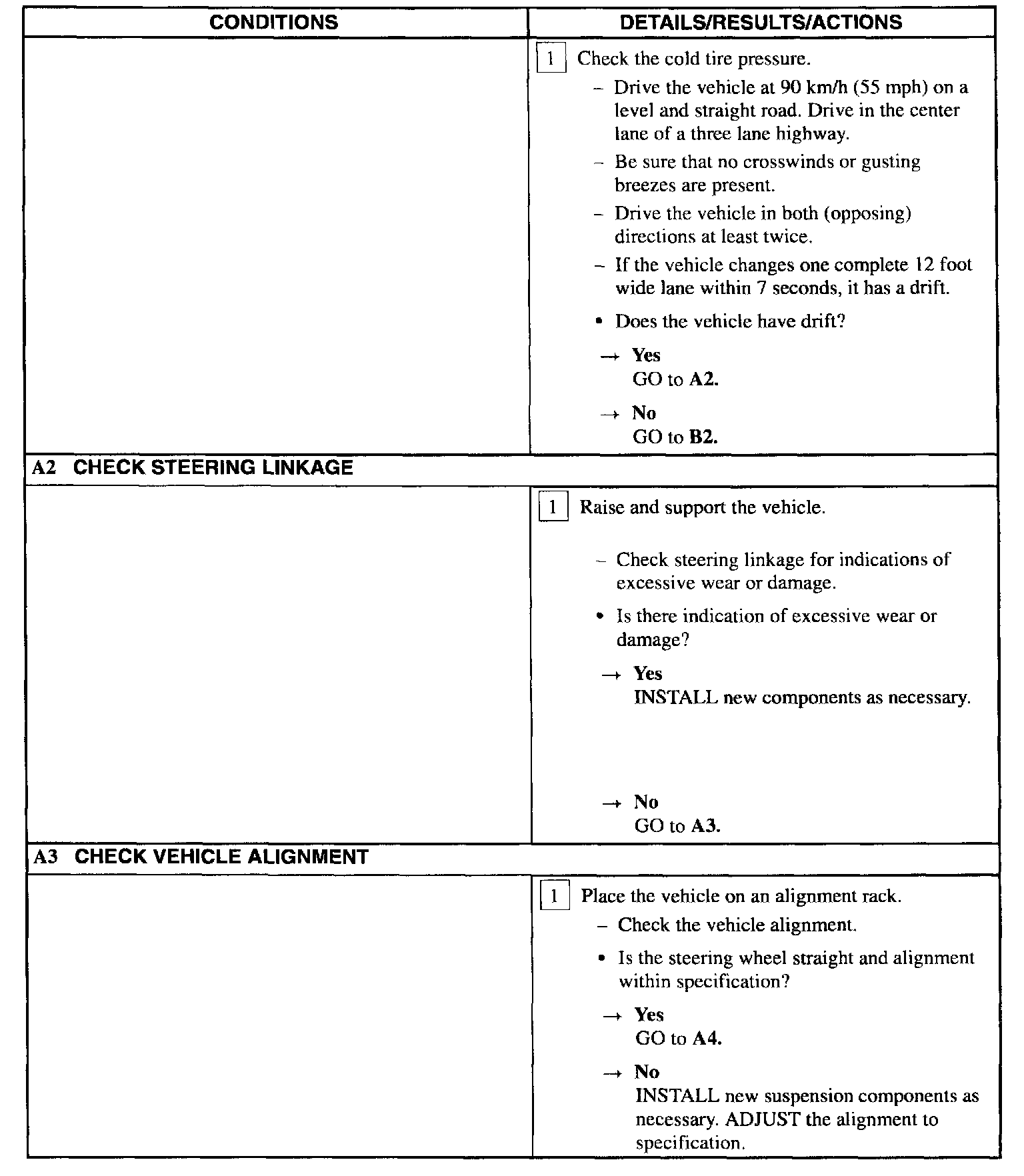

Test A1 - A3:

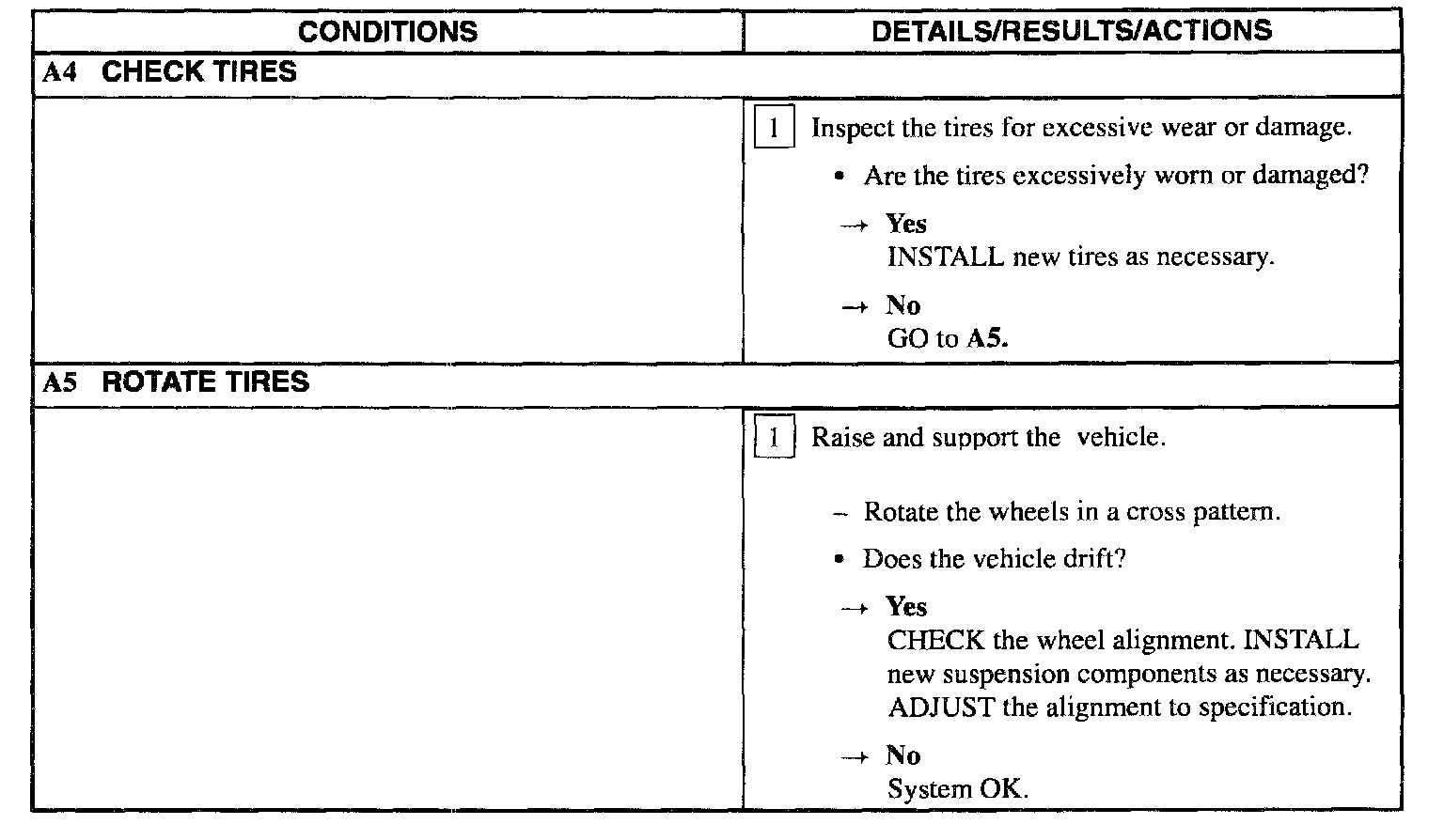

Test A4 - A5:
