Removal and Installation

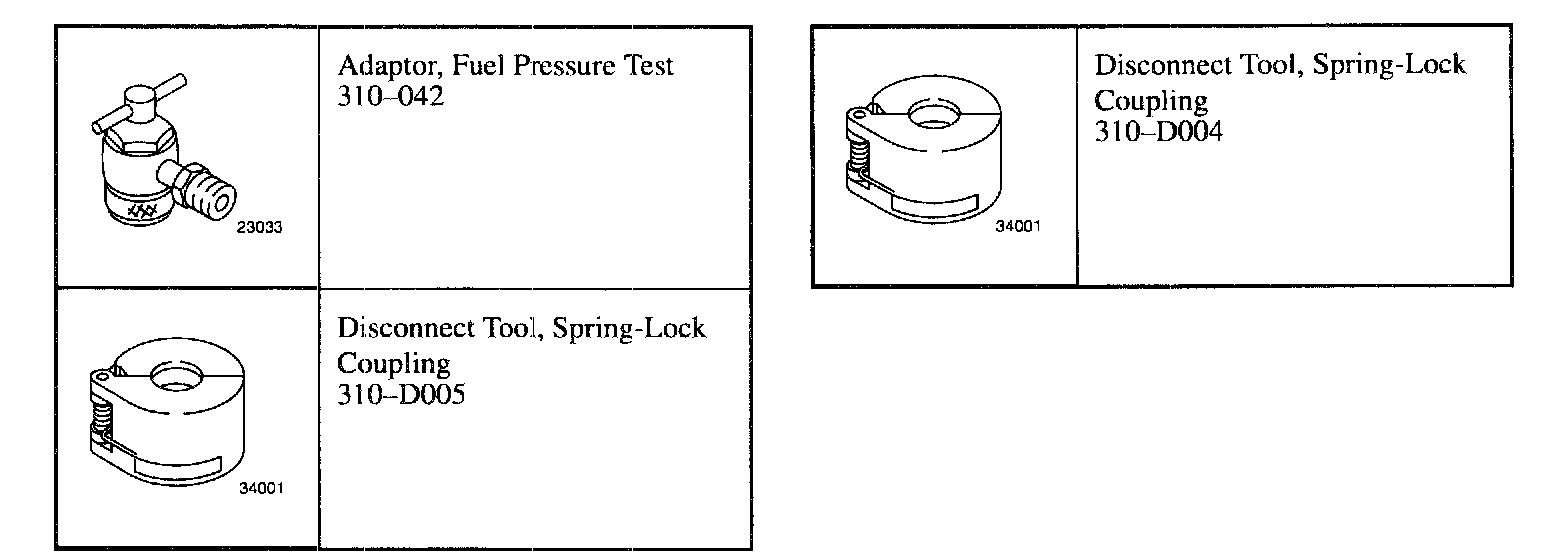

Special Tools






REMOVAL
1. Disconnect the battery ground cable.
2. Remove the air cleaner.





3. Remove the air cleaner bracket.






4. Disconnect the starter motor electrical connectors.

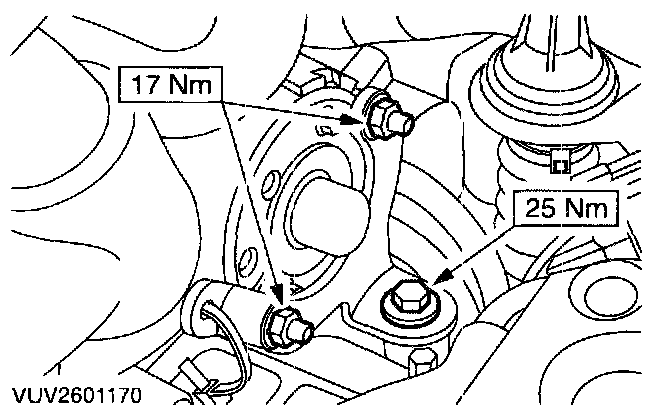

5. Remove the shift cable bracket bolts.
- Disconnect the shift cable.

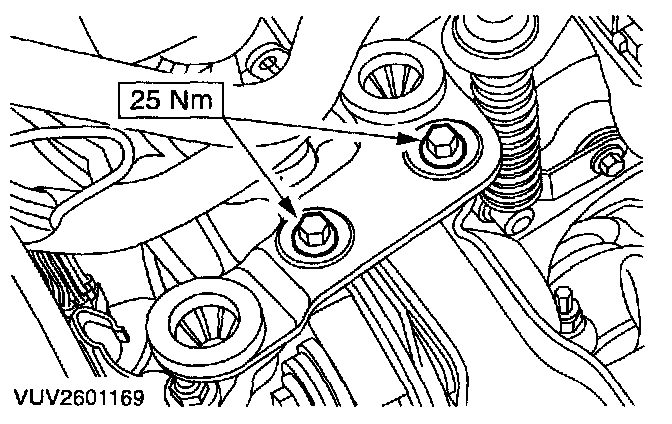

6. Remove the starter motor support bracket.

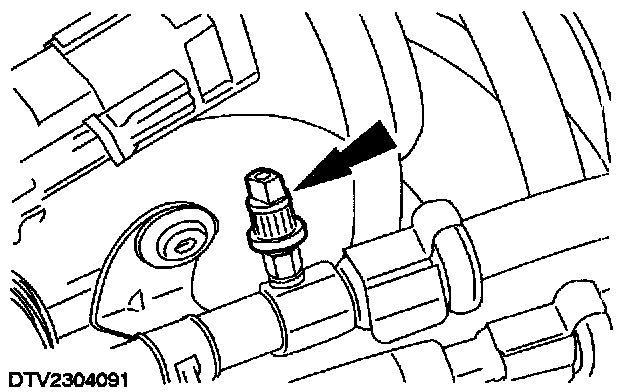

7. Remove the Schrader valve cap.






8. Using the special tool, turn the tap fully counterclockwise to relieve the fuel pressure.

WARNING: MAKE SURE THE TAP IS TURNED FULLY CLOCKWISE BEFORE FITTING THE FUEL PRESSURE GAUGE TO THE SCHRADER VALVE. FAILURE TO FOLLOW THIS INSTRUCTION MAY RESULT IN PERSONAL INJURY.

NOTE: When relieving the fuel pressure, catch any displaced fuel in a suitable container.

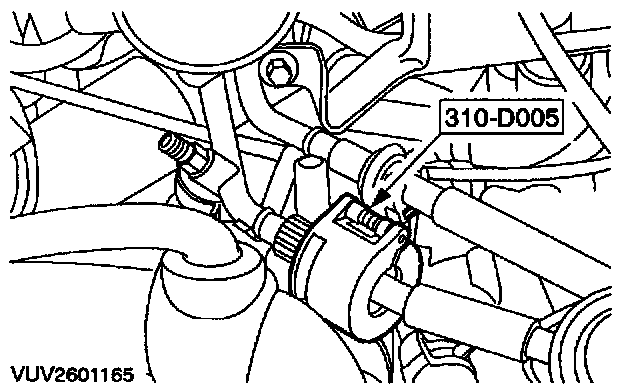

9. Using the special tool, disconnect the fuel return pipe.

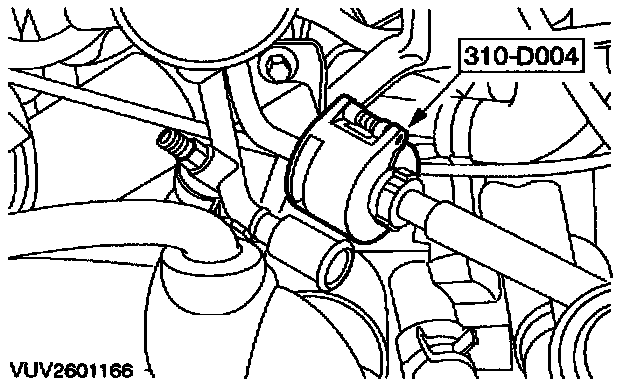

10. Using the special tool, disconnect the fuel supply pipe.

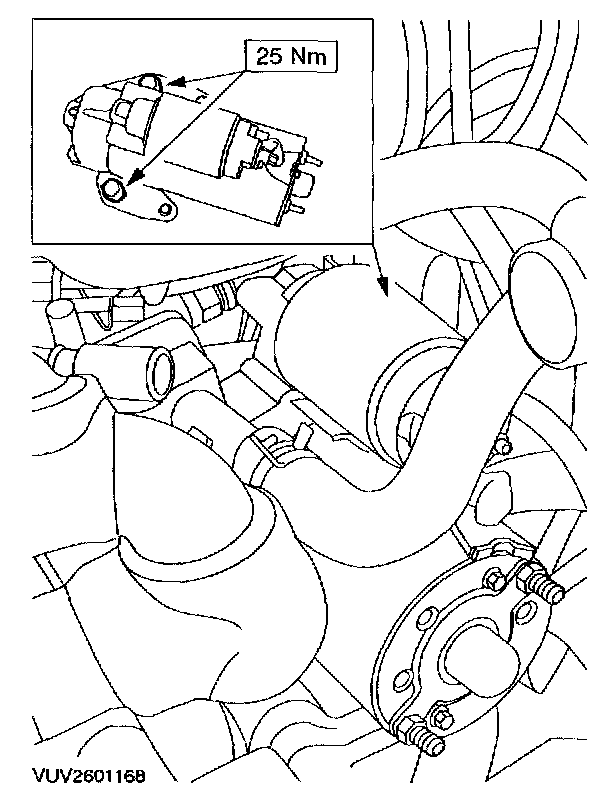

11. Remove the starter motor.
- Remove the starter bolts.
- Remove the starter.



INSTALLATION











1. To install, reverse the removal procedure.
