Ignition Lock: Service and Repair

Removal





1. Remove the steering column lower shroud.





2. Remove the steering column upper shroud.

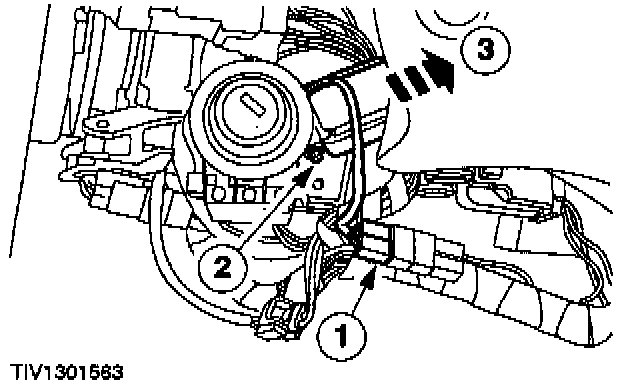

3. Remove the key release interlock actuator.
1 Disconnect the electrical connector.
2 Remove the bolt.
3 Remove the actuator.

Installation
1. To install, reverse the removal procedure.
