Fuse: Application and ID

The passenger compartment fuse panel is located on the drivers side under the instrument panel. The power distribution box is located on the driver's side of the engine compartment.

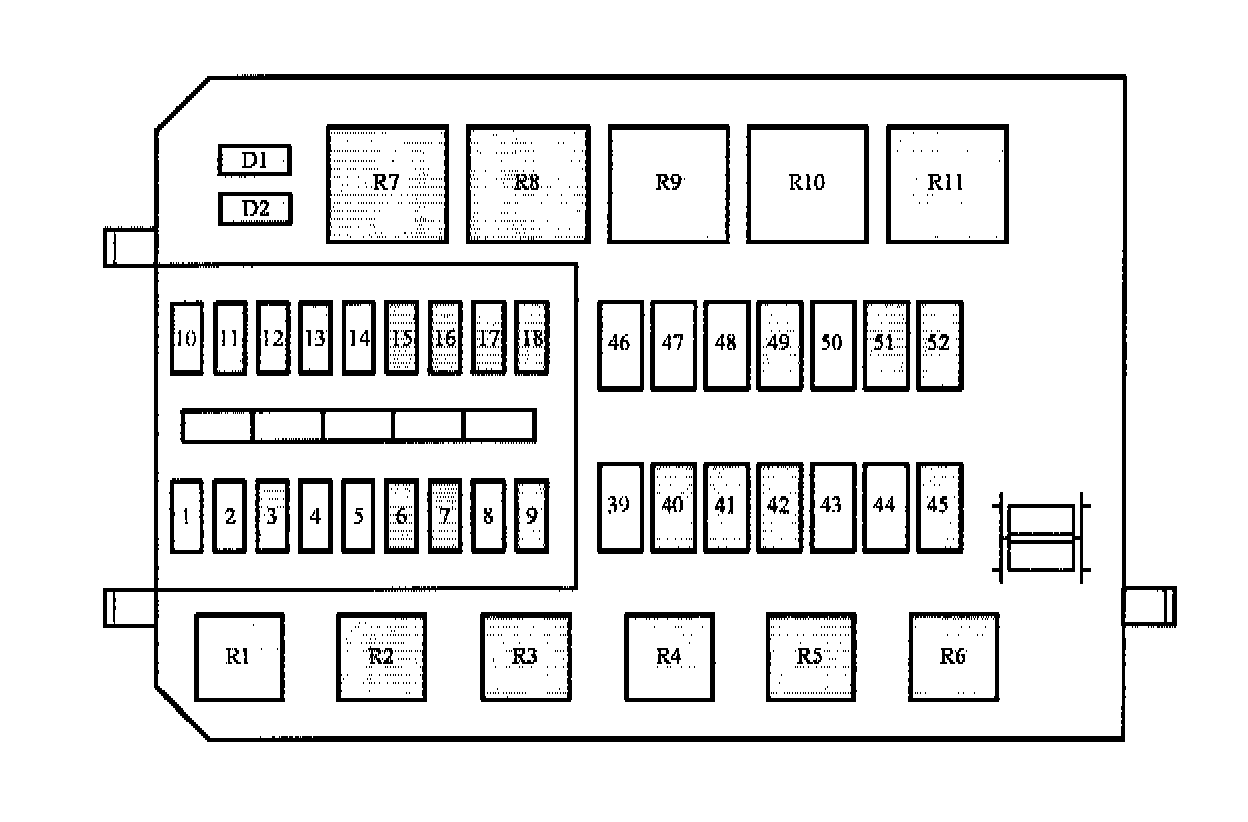

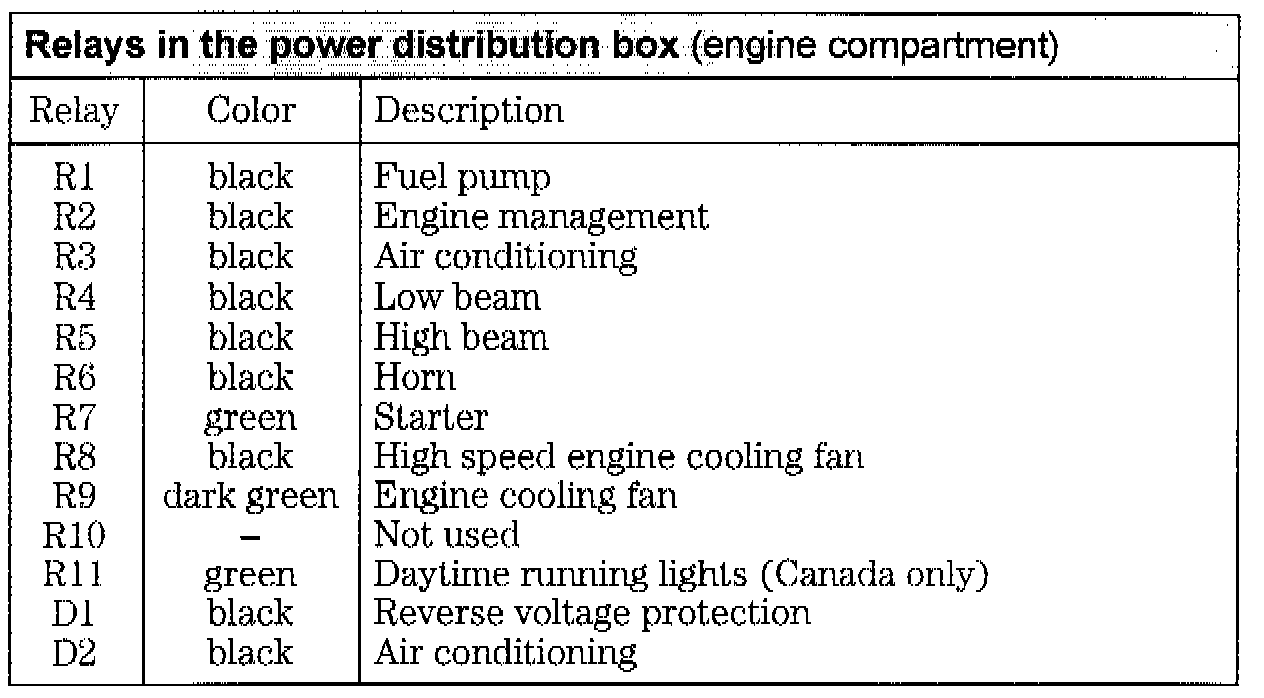

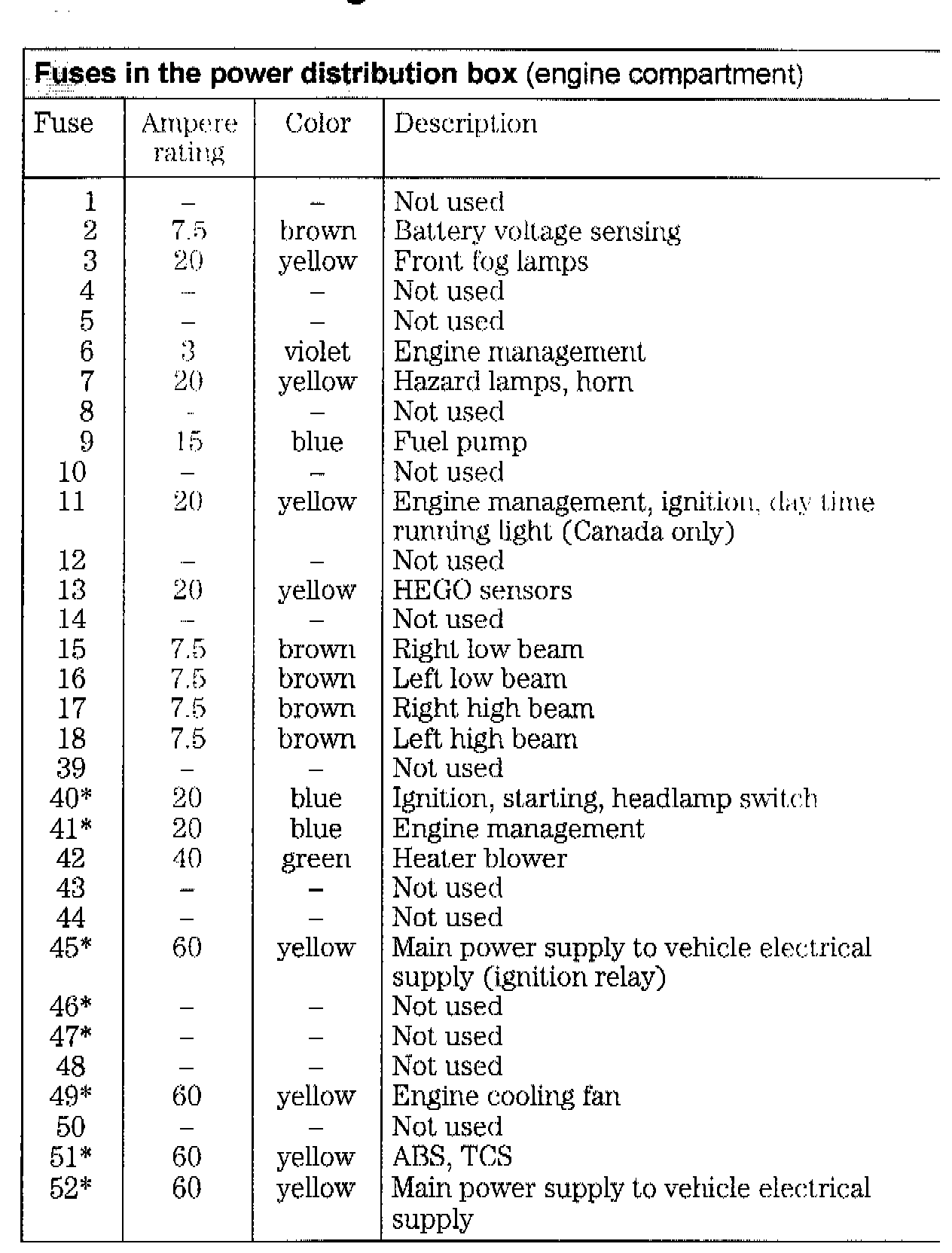

Power Distribution Box:

1 - 18 39 -52:

R1 - D2:

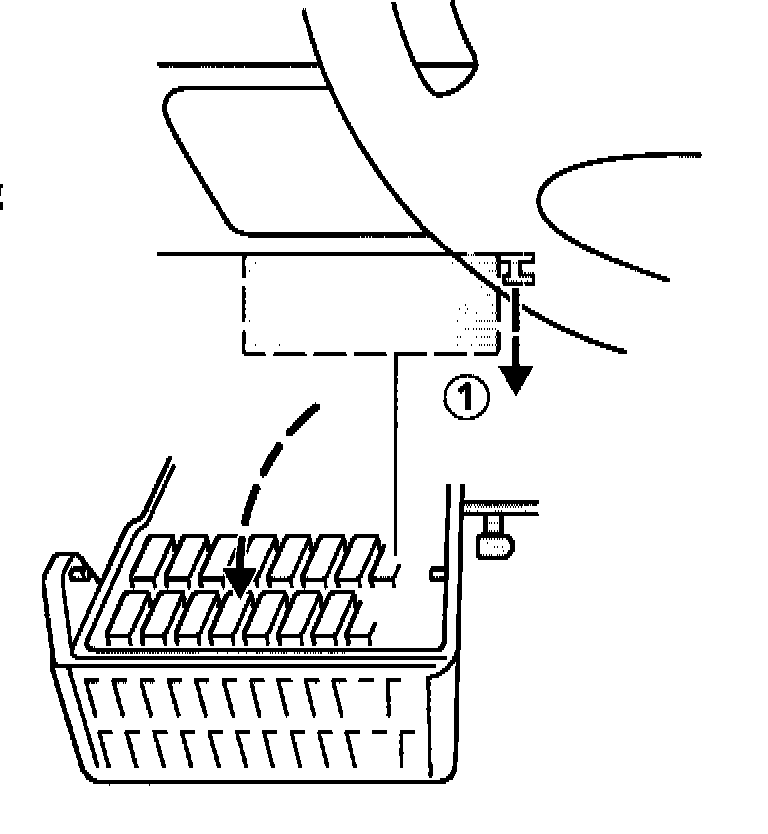

Passenger Compartment Fuse Panel (Location):

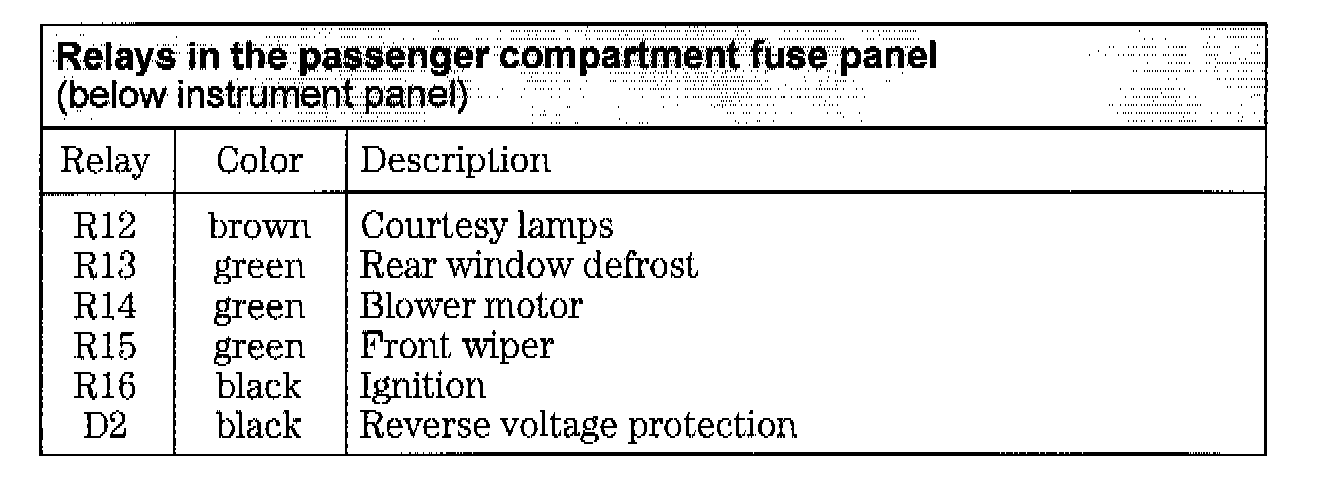

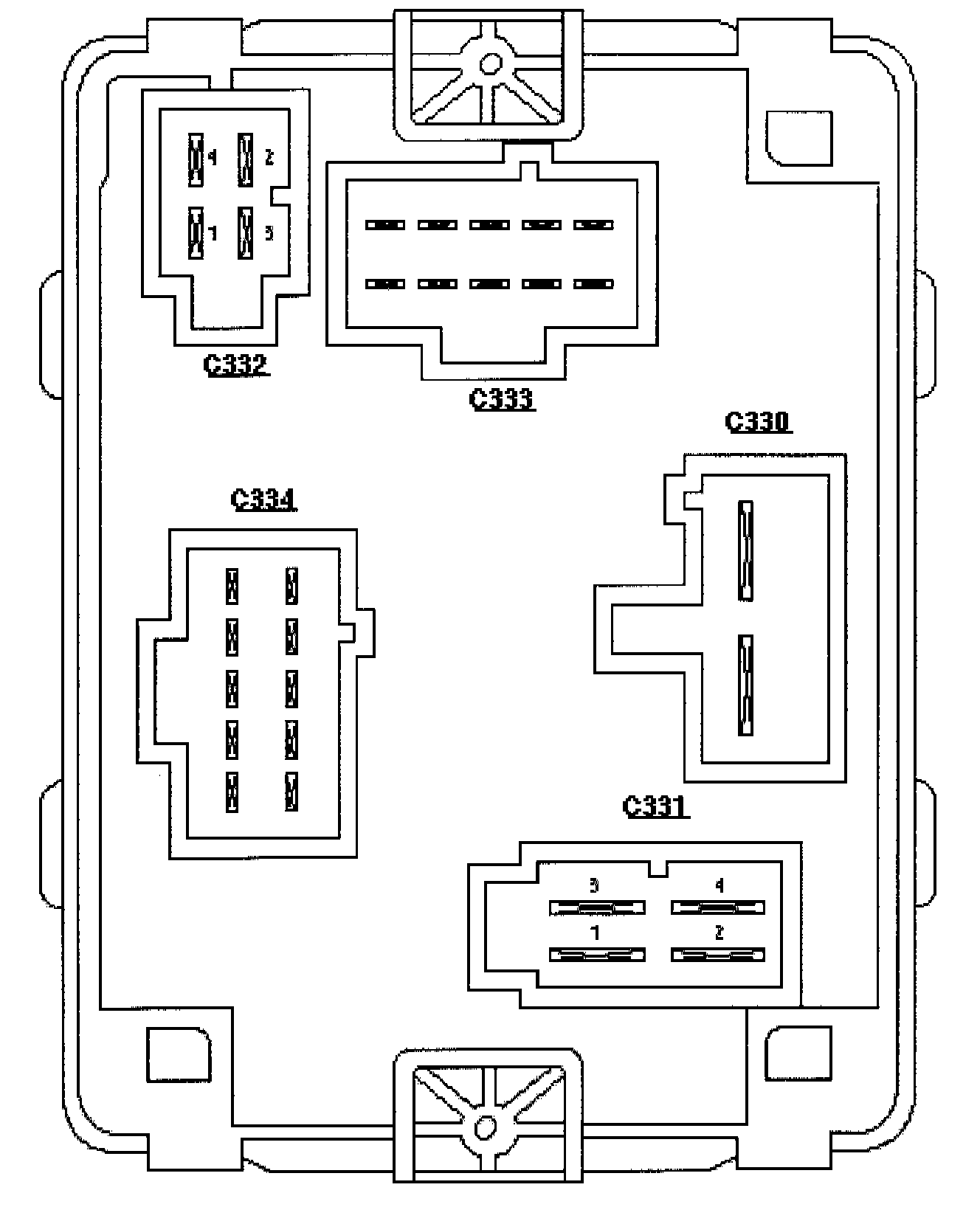

Passenger Compartment Fuse Panel:

R1 - D2:

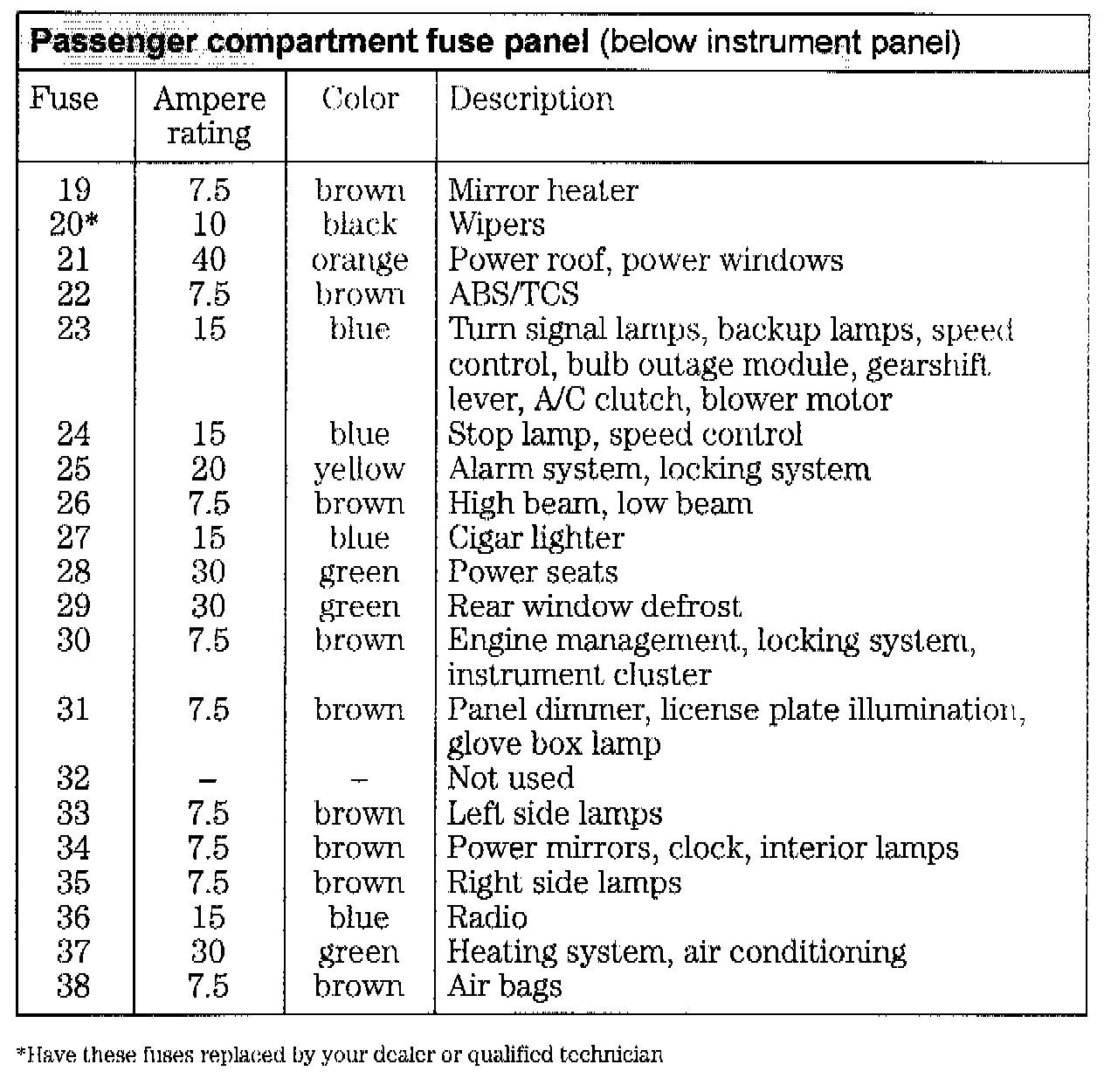

19 - 38:

Battery Junction Box (Built After May 24th 1999):

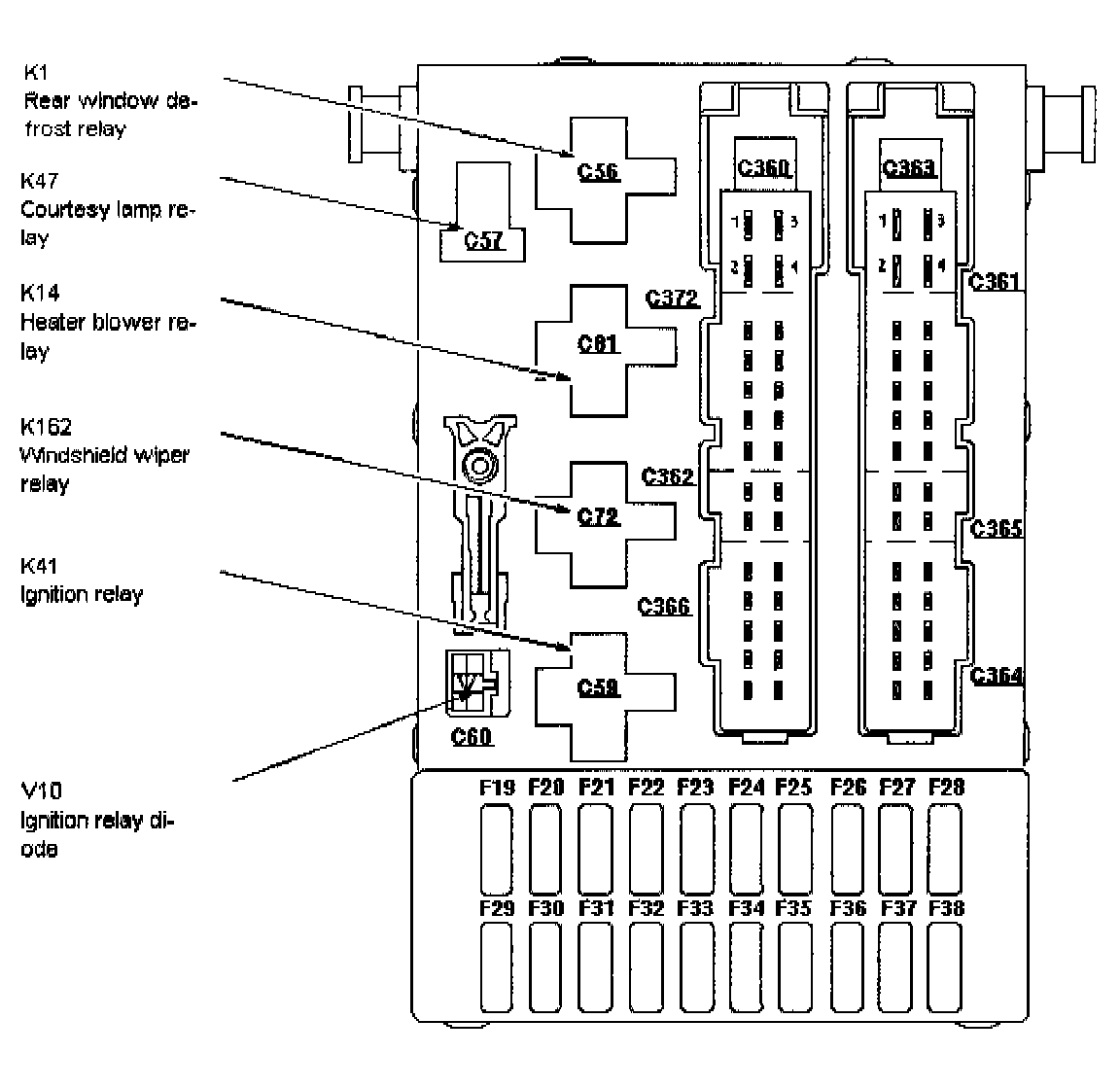

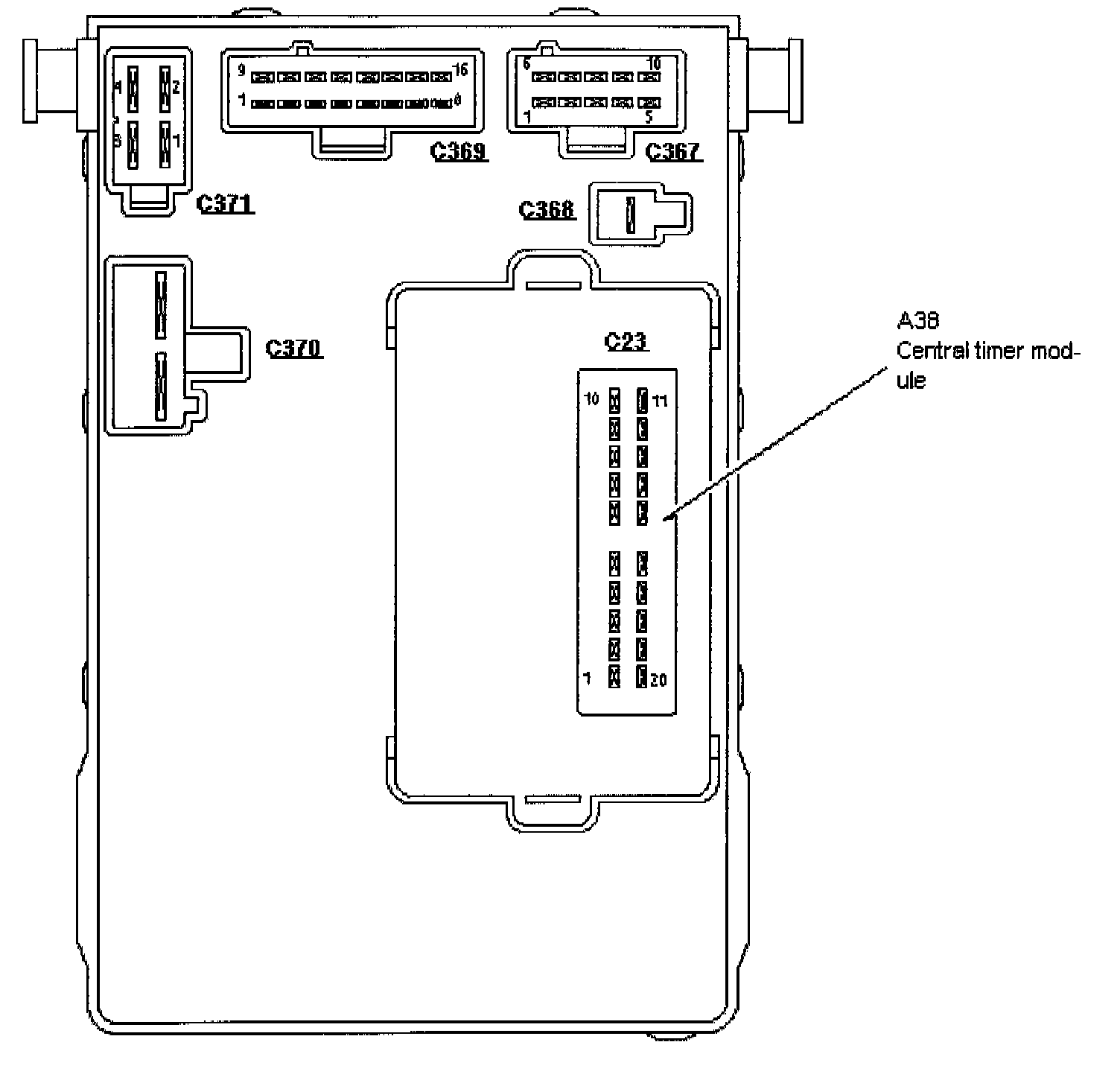

Central Junction Box (Built After May 24th 1999):

Central Junction Box (Built After May 24th 1999):

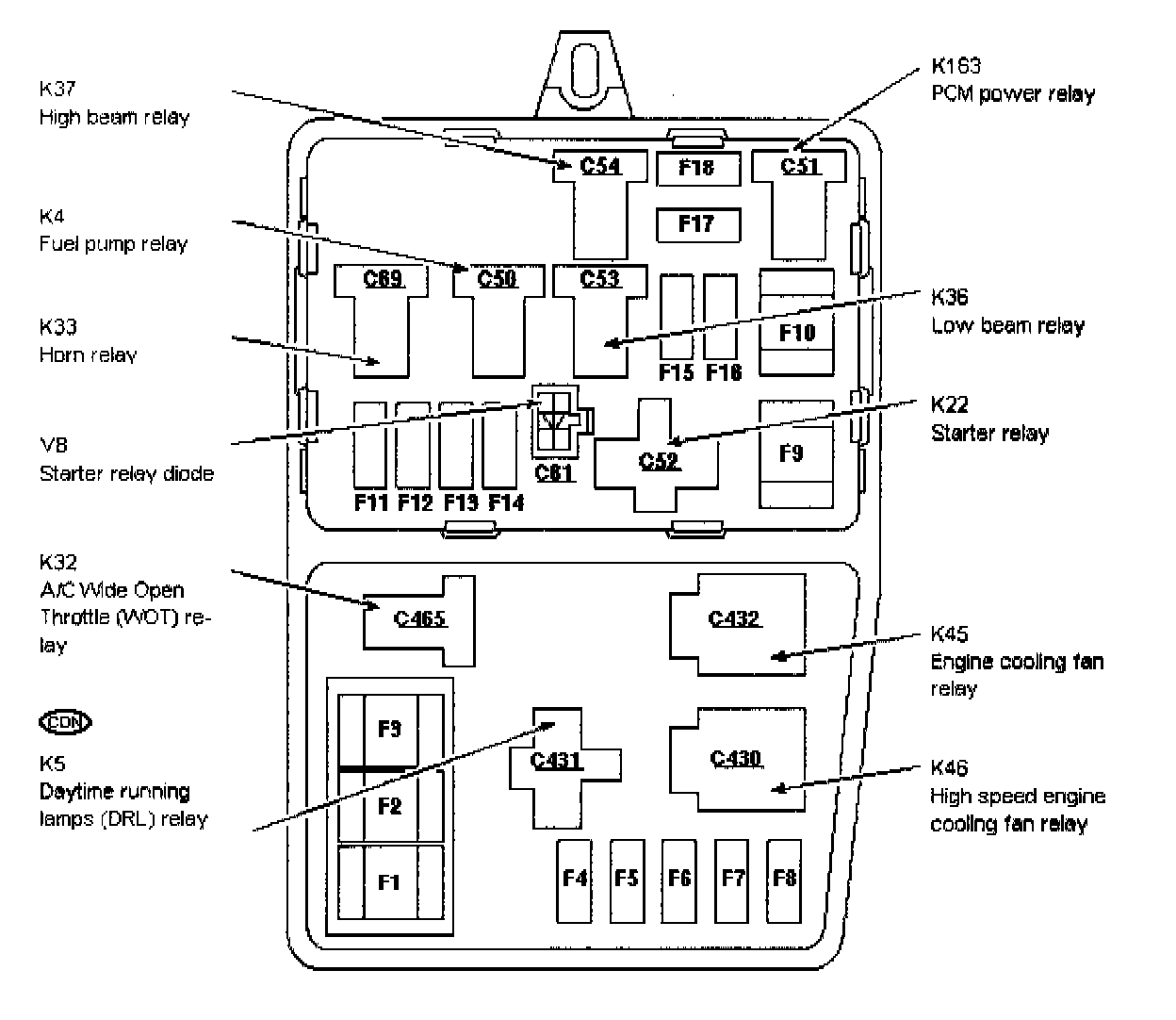

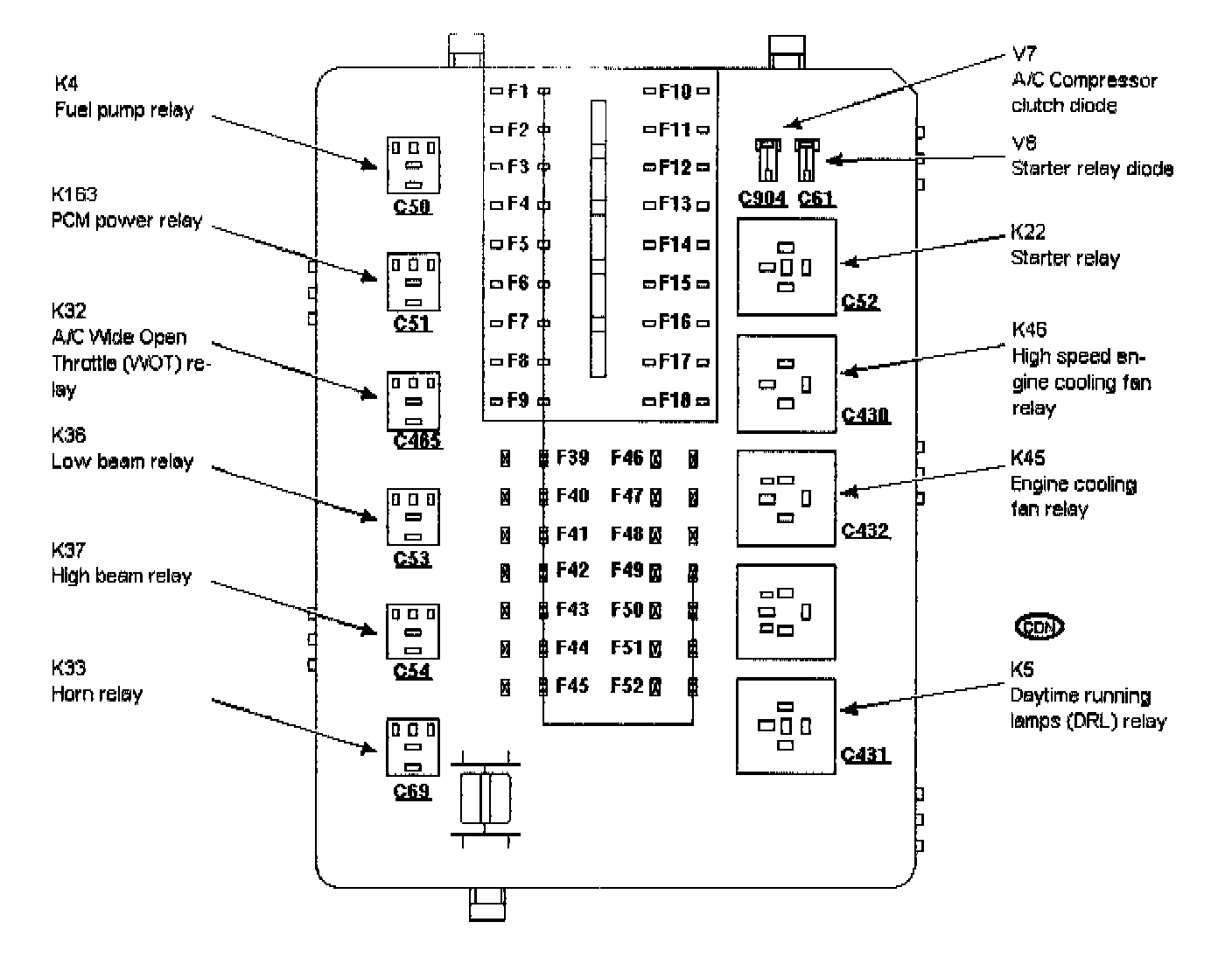

Battery Junction Box (Built Before May 24th 1999):

Battery Junction Box (Built Before May 24th 1999):

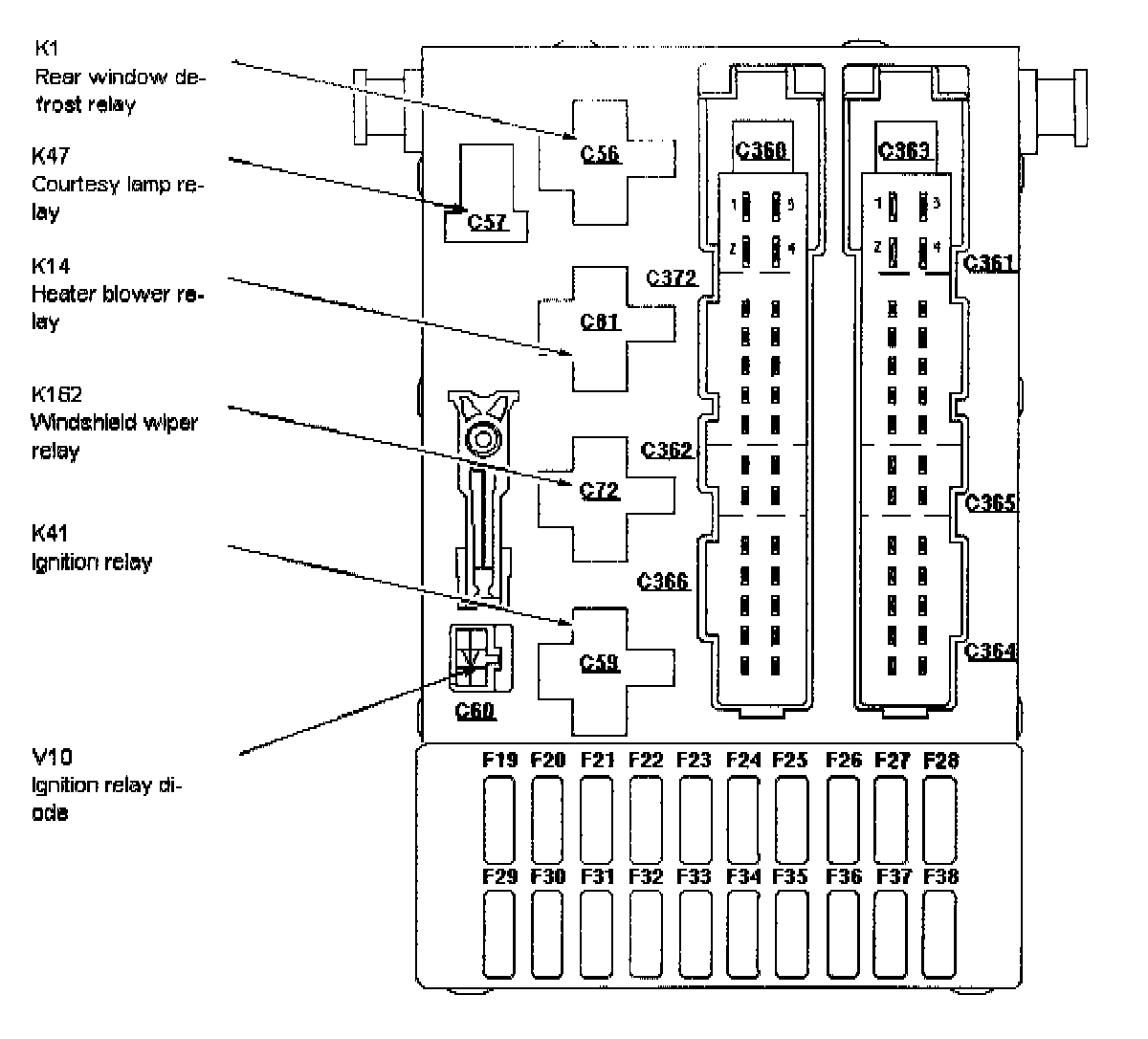

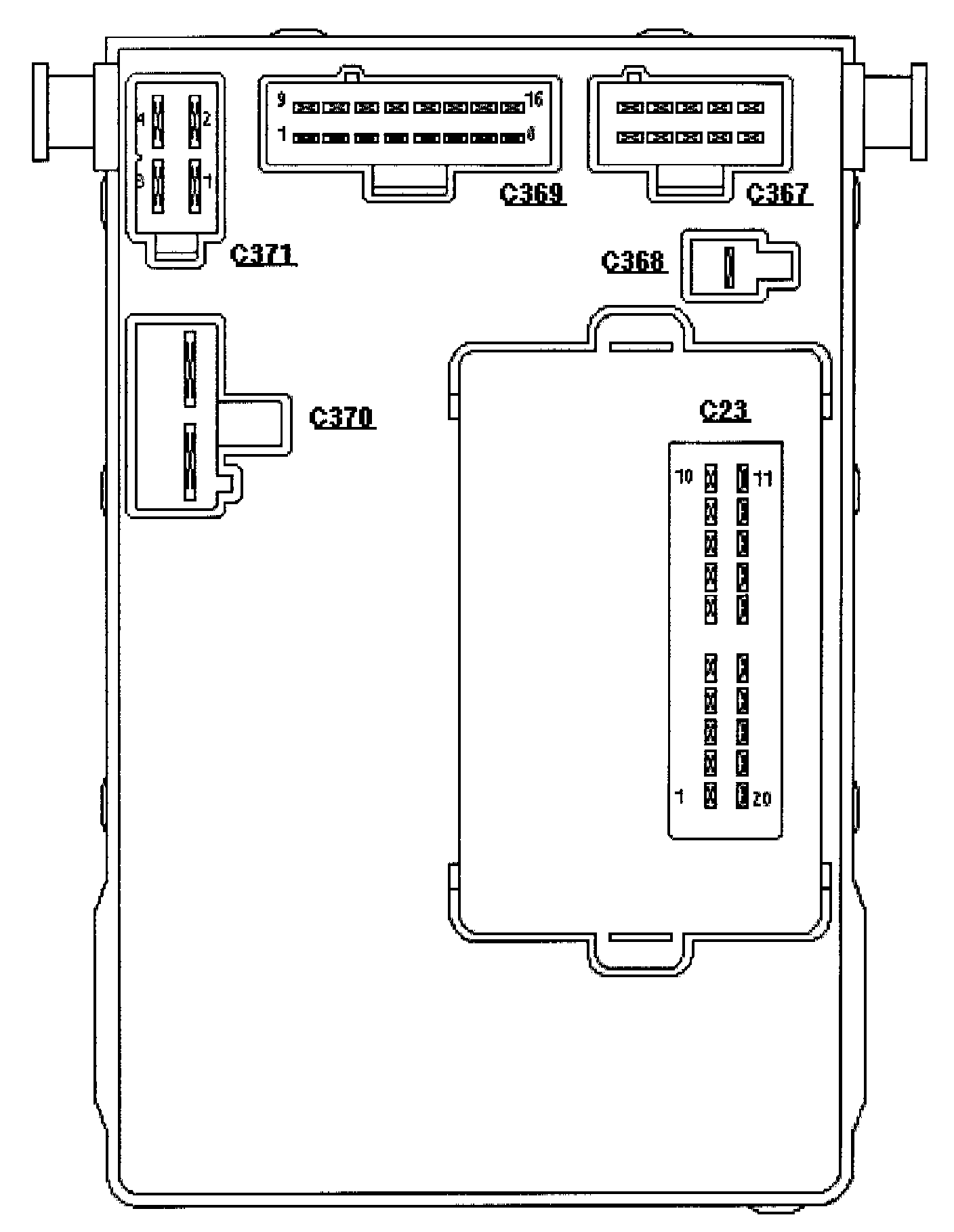

Central Junction Box (Built Before May 24th 1999):

Central Junction Box (Built Before May 24th 1999):

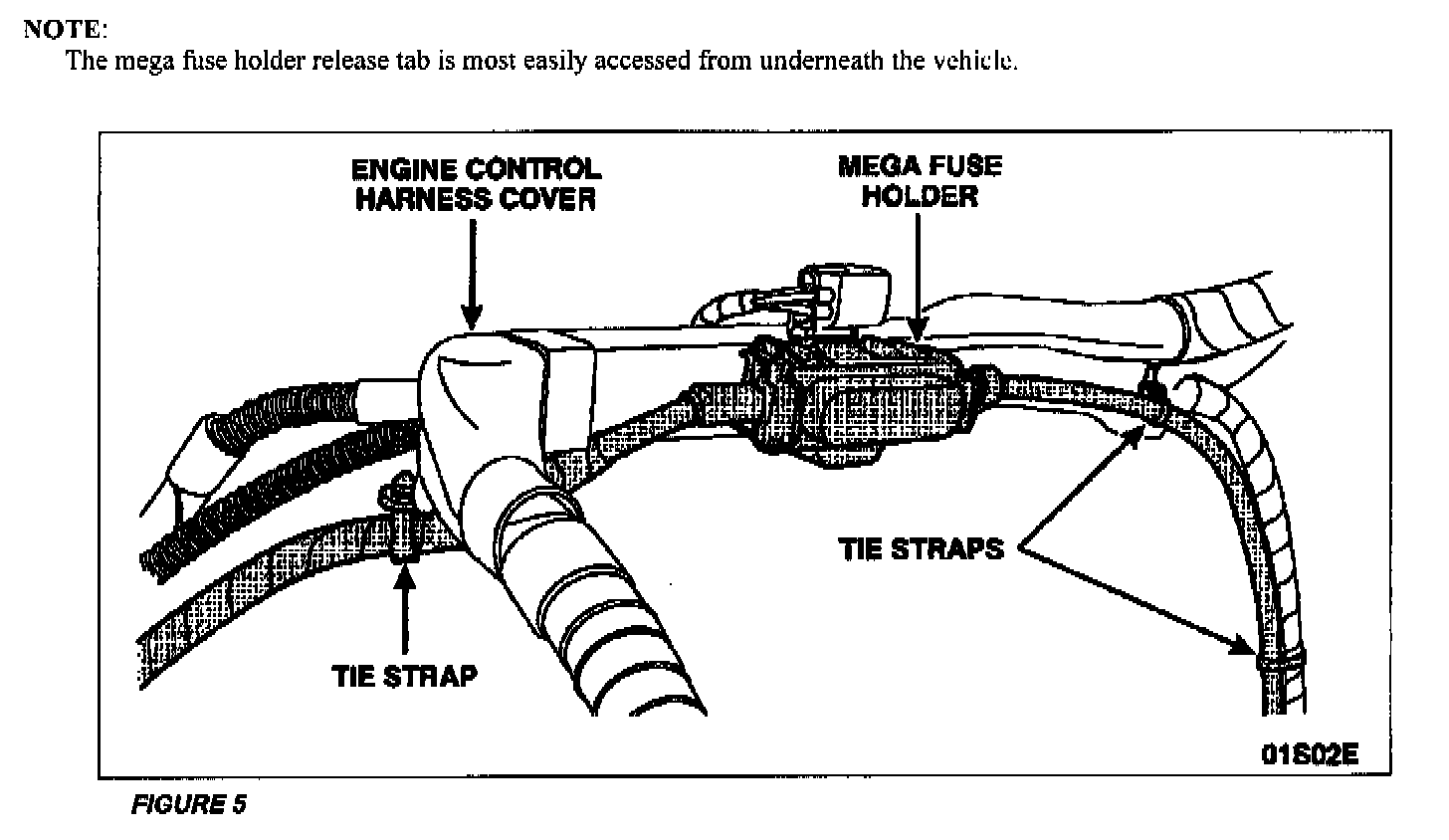

Mega Fuse:
