Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Ignition System >> Ignition Switch >> Testing and Inspection >> Pinpoint Tests >> Test A: Ignition Switch Inoperative

Test A: Ignition Switch Inoperative

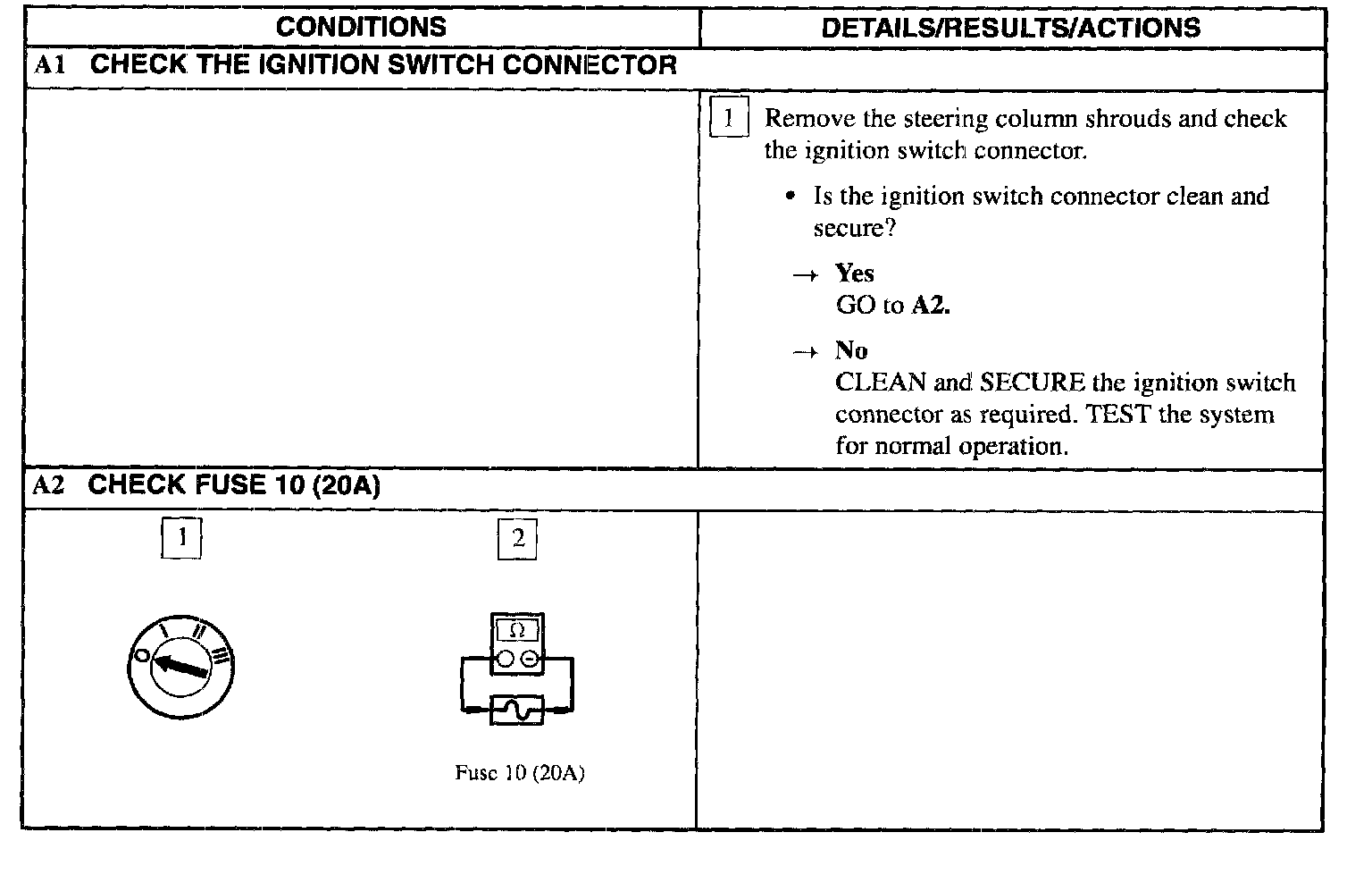

Test A1 - A2:

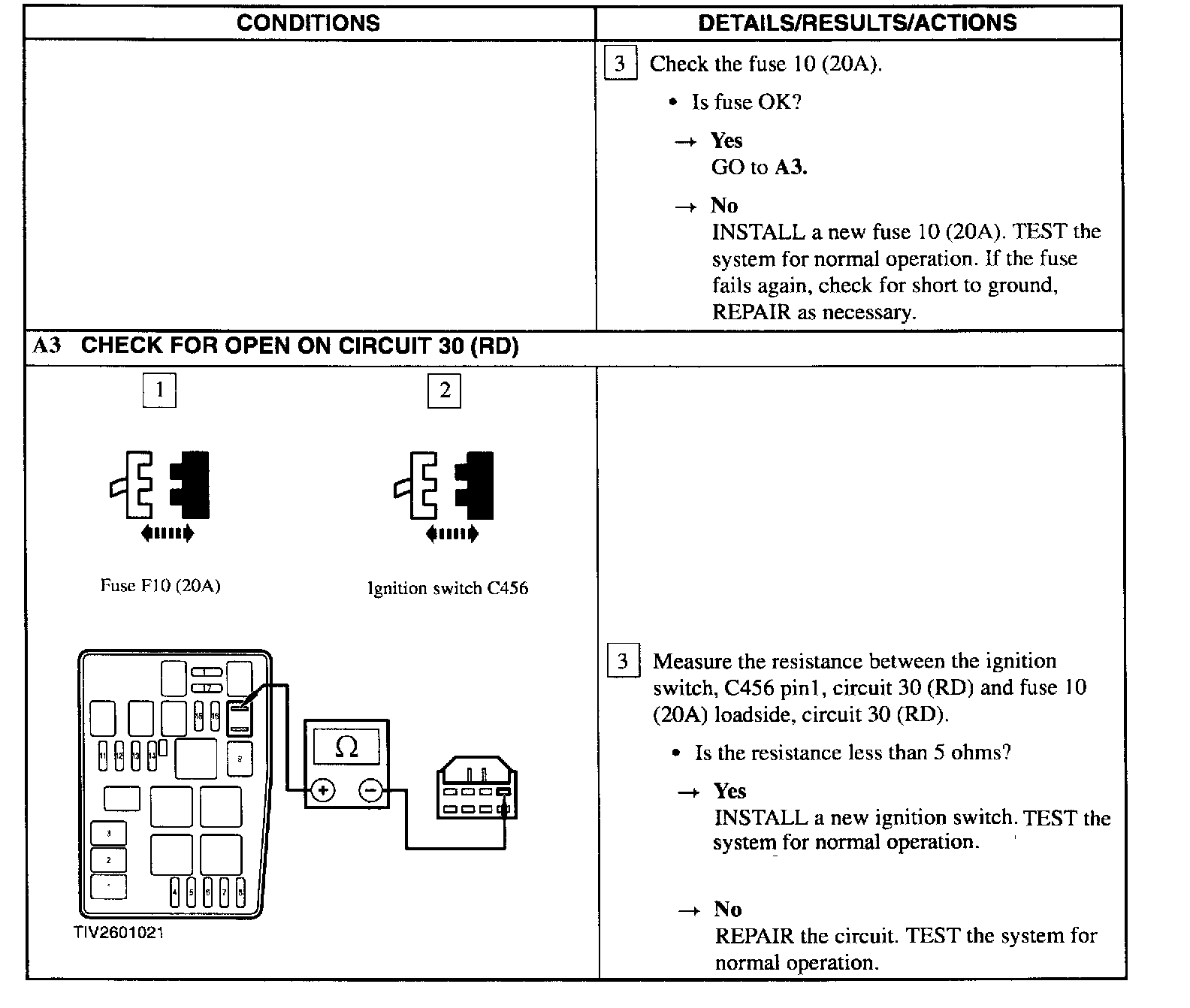

Test A2 - A3:
