Oil Pressure Sender: Service and Repair

Materials:

Removal
1. Raise and support the vehicle.

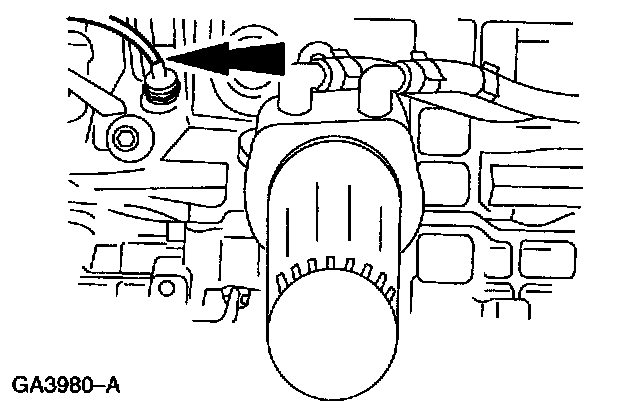

2. Disconnect the oil pressure switch electrical connector.





3. Remove the oil pressure switch.

Installation

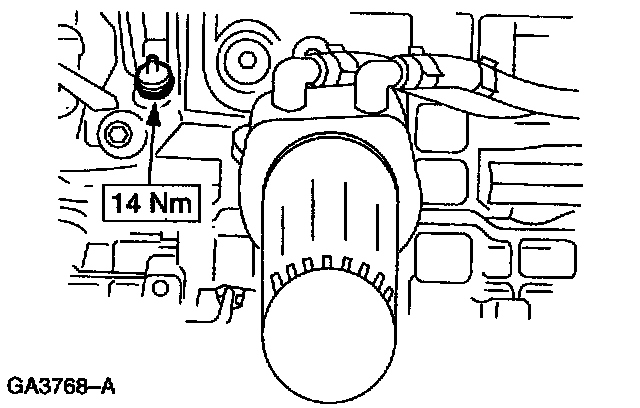

1. To install, reverse the removal procedure.

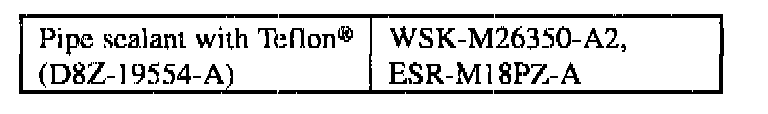

^ Use Pipe sealant with Teflon(R) or equivalent meeting Ford specification WSK-M26350-A2, ESR-M18PZ-A to seal the oil pressure switch.
