Sunroof / Moonroof Switch: Testing and Inspection

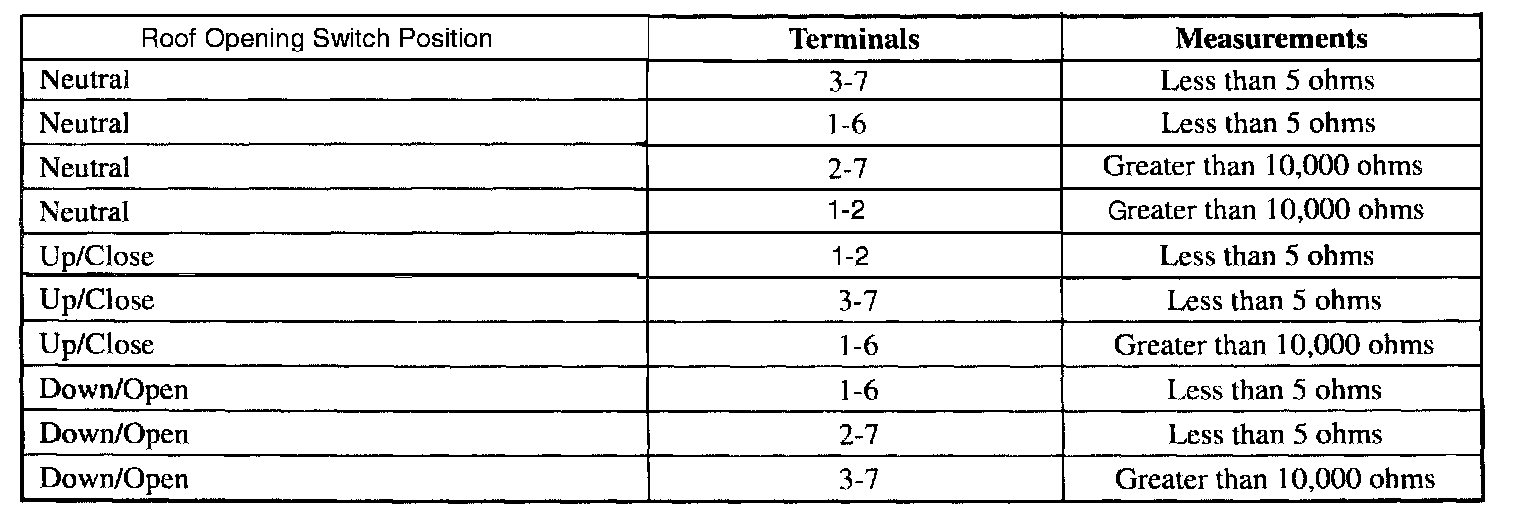

1. Measure the resistance between the terminals shown in the illustration:
2. If all measurements of the roof opening panel switch are as noted, return to the Pinpoint Test. Otherwise INSTALL a new roof opening panel switch.
