Removal and Installation

REMOVAL
1. Remove the front seat assembly.

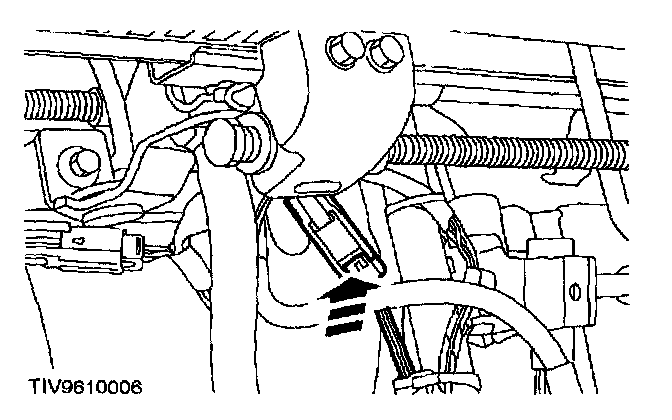

2. Disconnect the safety belt warning indicator electrical connector.
^ Detach the safety belt warning indicator harness from the seat base.

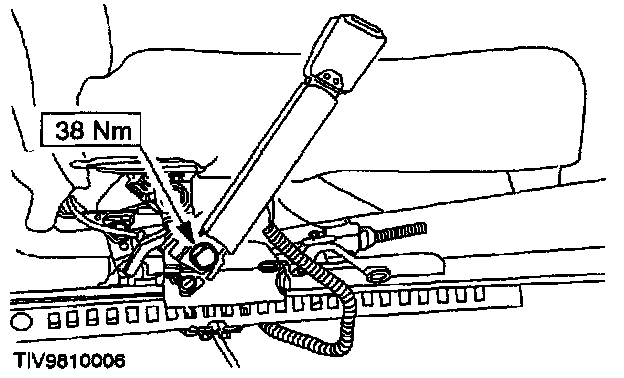

3. Remove the safety belt stalk.

NOTE: The safety belt buckle bolt is part of the buckle assembly and should not be separated.

INSTALLATION







1. To install reverse the removal procedure.
