Reading and Clearing Diagnostic Trouble Codes

The Safety Restraint System fitted to the Cougar will communicate faults/concerns by the air bag control module during a driving cycle or after initial key on be means of a warning lamp contained within the instrument cluster.

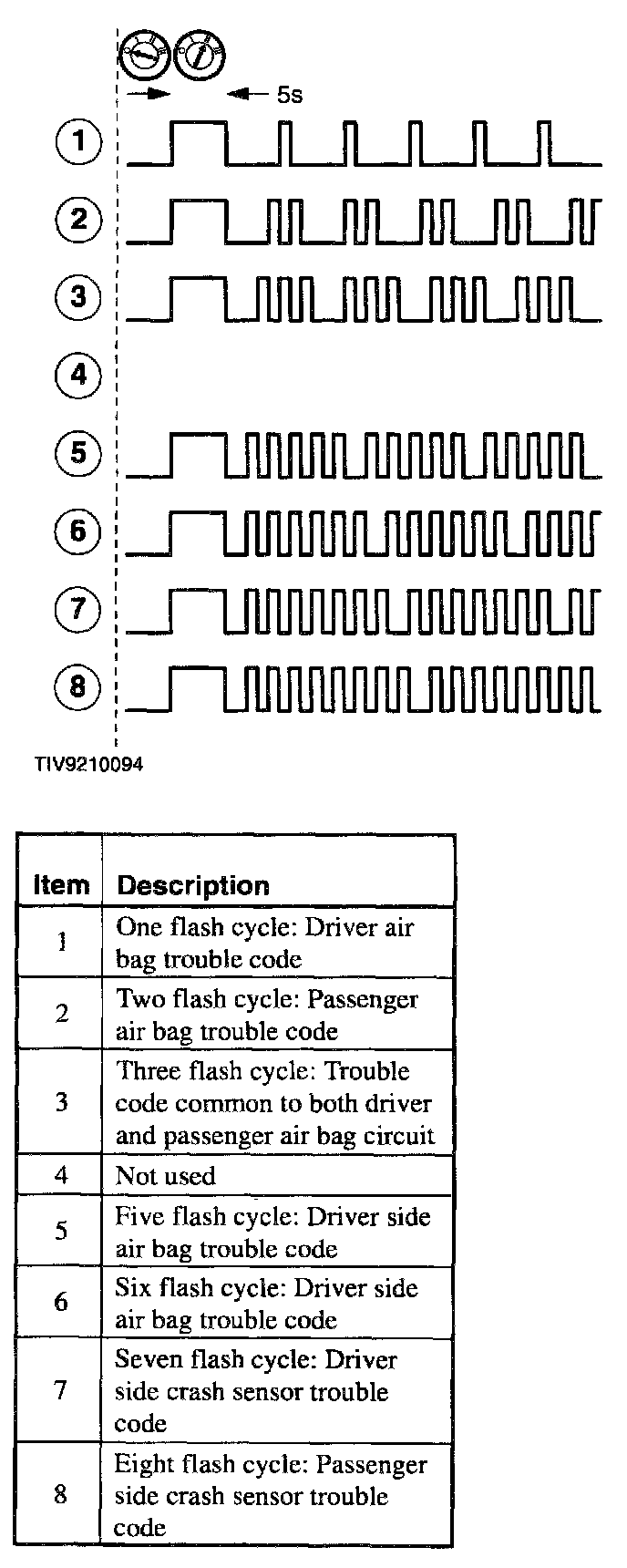

If a concern is detected, the control module will communicate by flashing the warning indicator to give a Diagnostic Trouble Code (DTC).
