Keyless Entry Module: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the glove compartment.







3. Detach the relay mounting bracket.

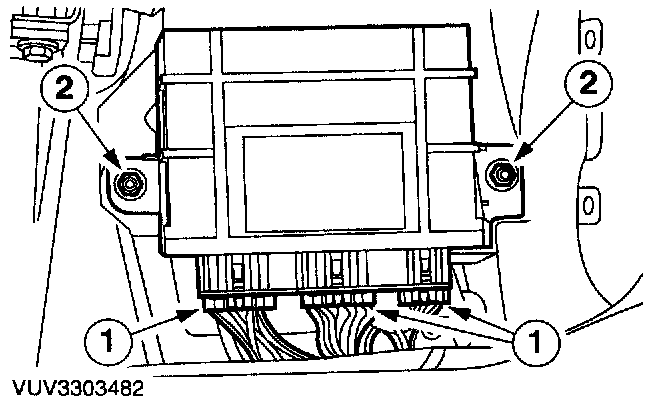

4. Remove the central security module.
1 Disconnect the electrical connectors.
2 Remove the nuts.

INSTALLATION
1. To install, reverse the removal procedure.
