Ignition Cable: Service and Repair

REMOVAL
1. Remove the ignition coil.

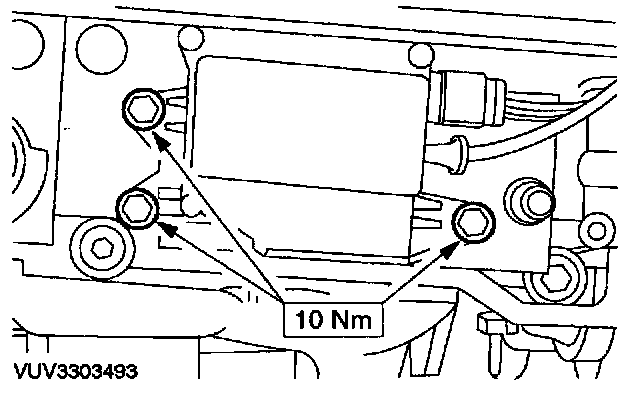

2. Remove the engine cover.







3. Disconnect the variable intake system actuator electrical connector.







4. Remove the variable intake system actuator bolts.







5. Position the variable intake system actuator to one side.







6. Disconnect the six spark plug wires from the spark plugs.







7. Open the spark plug wire separators.
8. Remove the spark plug wires.

INSTALLATION







1. To install, reverse removal procedure.
