Diagnostic Trouble Code Tests and Associated Procedures

1 Of 8:

2 Of 8:

3 Of 8:

4 Of 8:

5 Of 8:

6 Of 8:

7 Of 8:

8 Of 8:

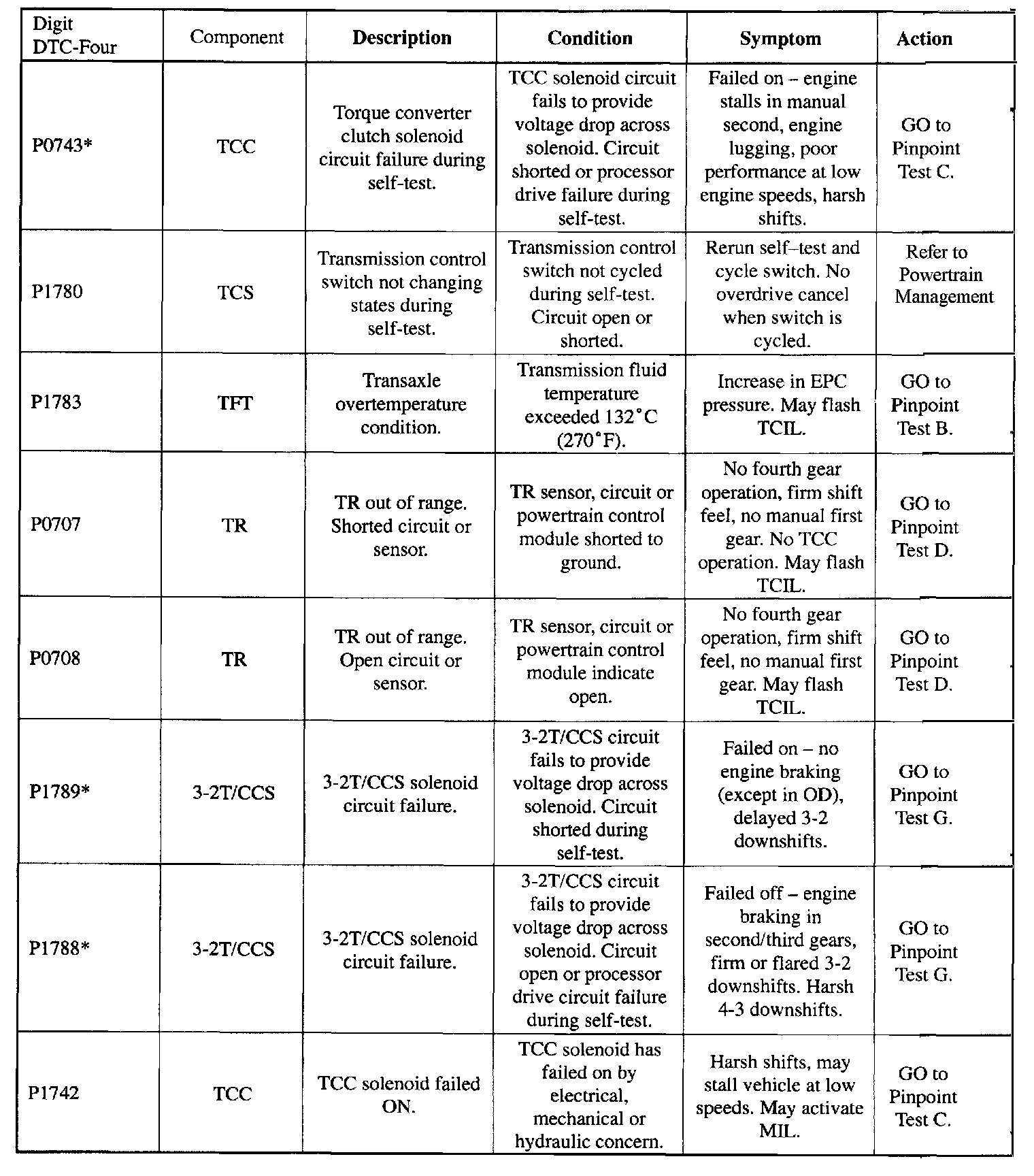

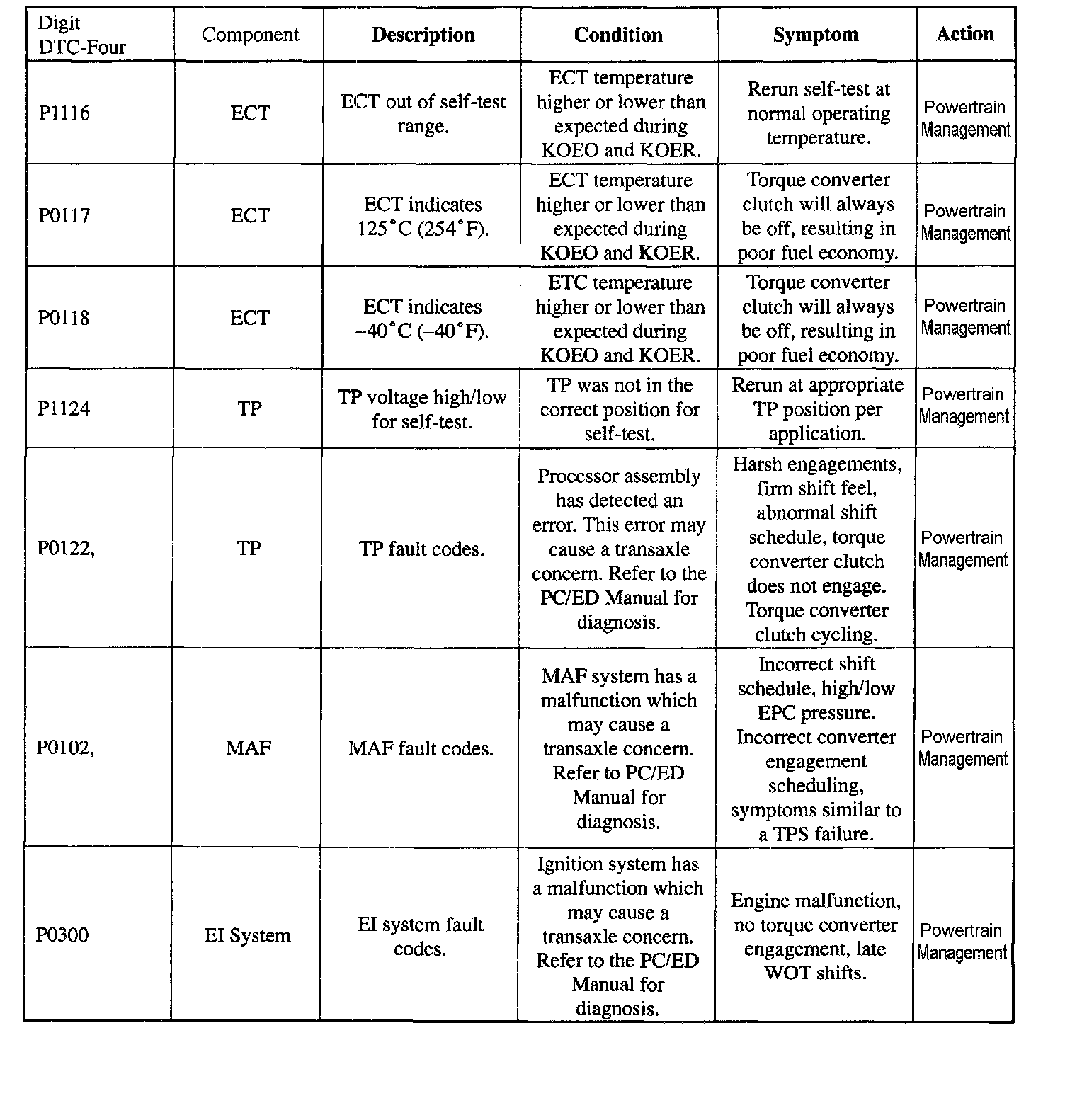

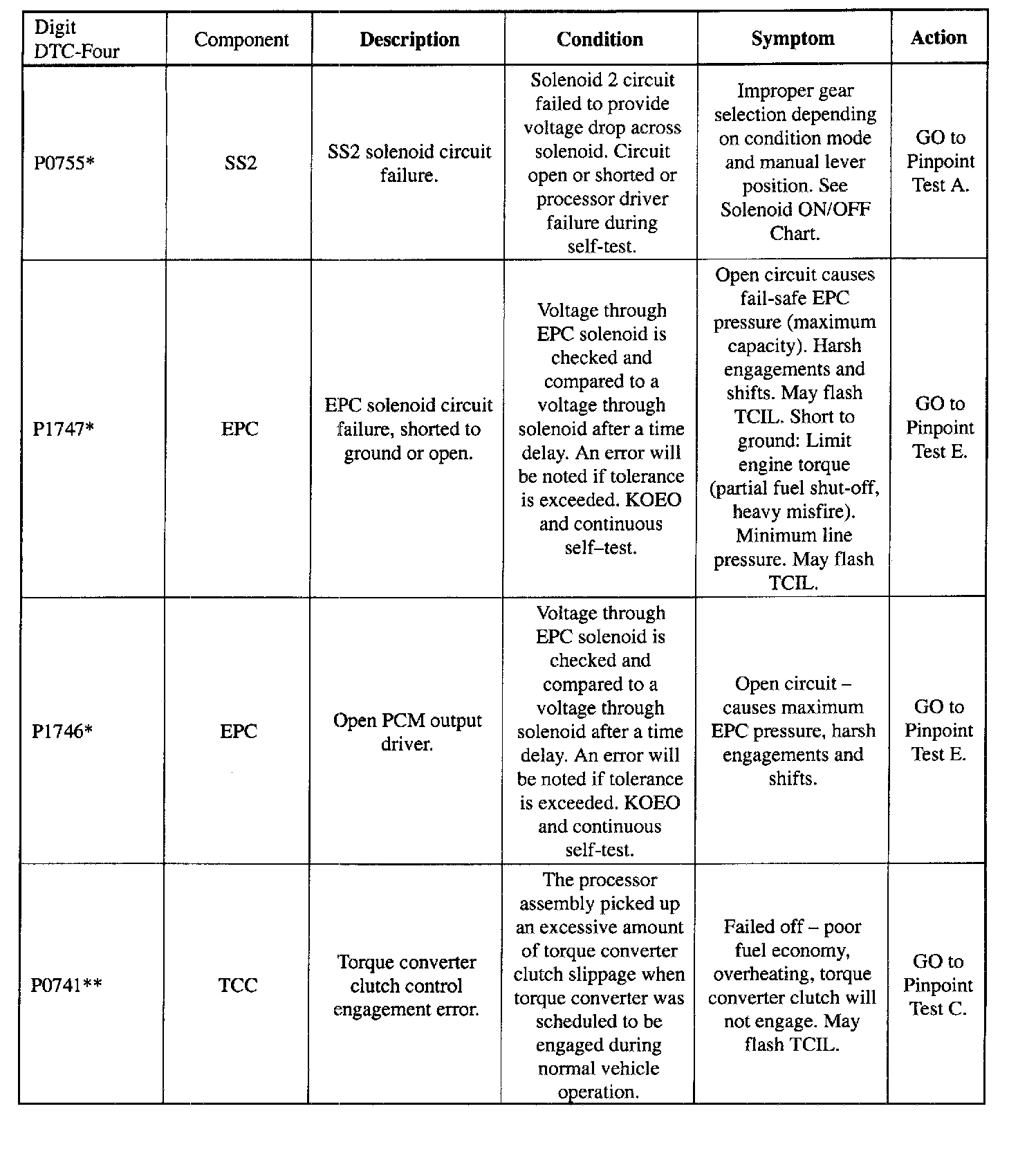

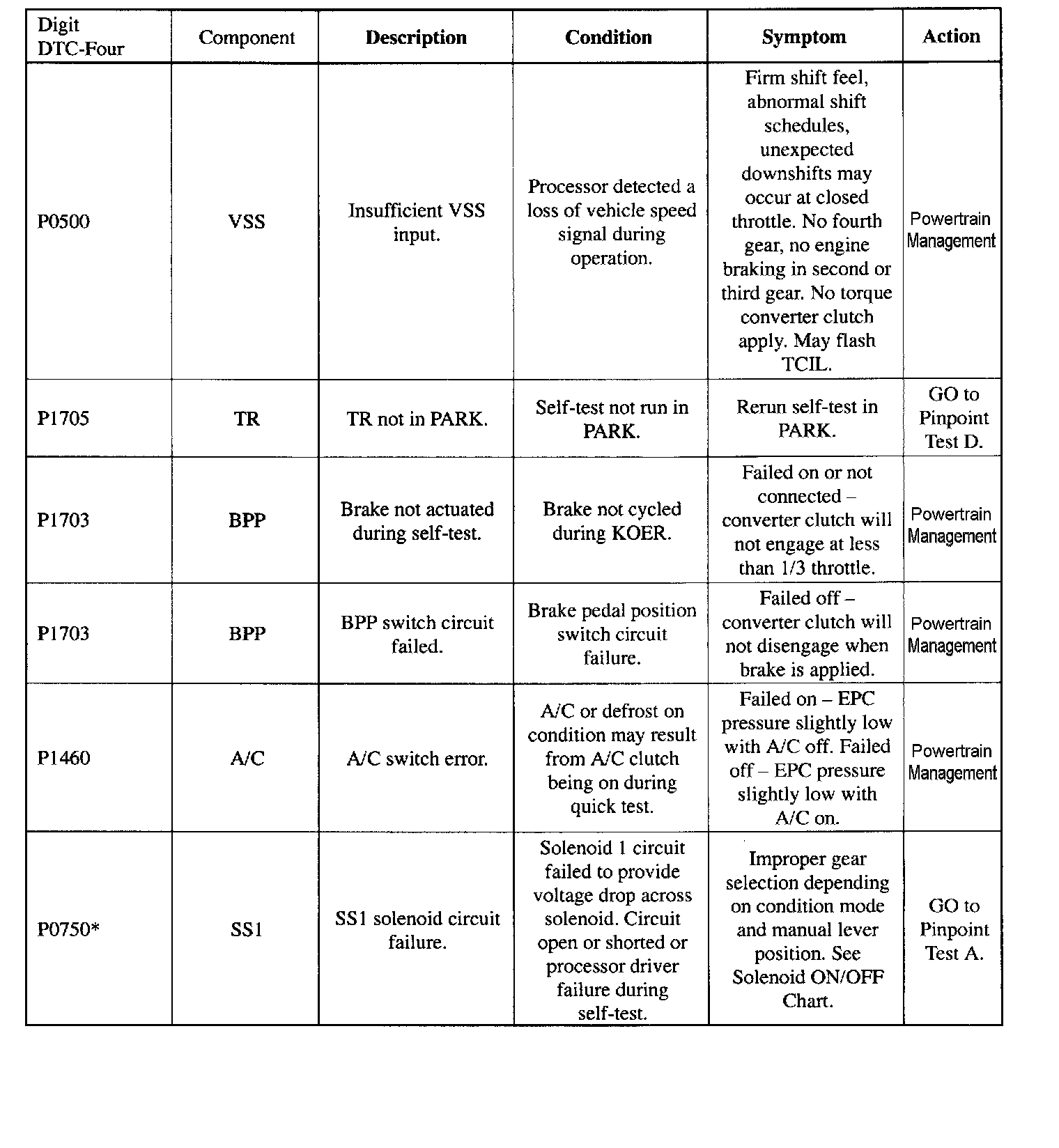

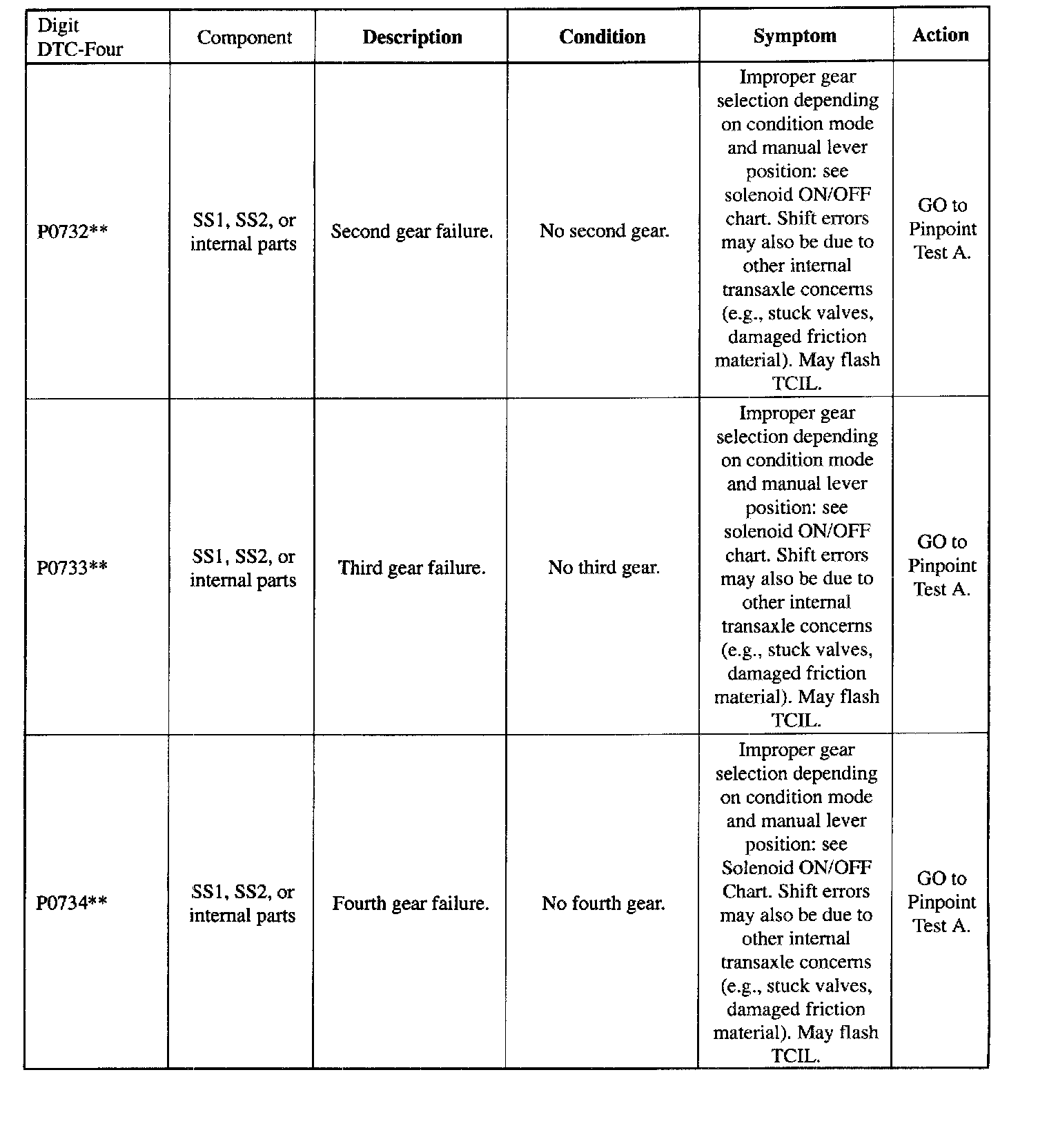

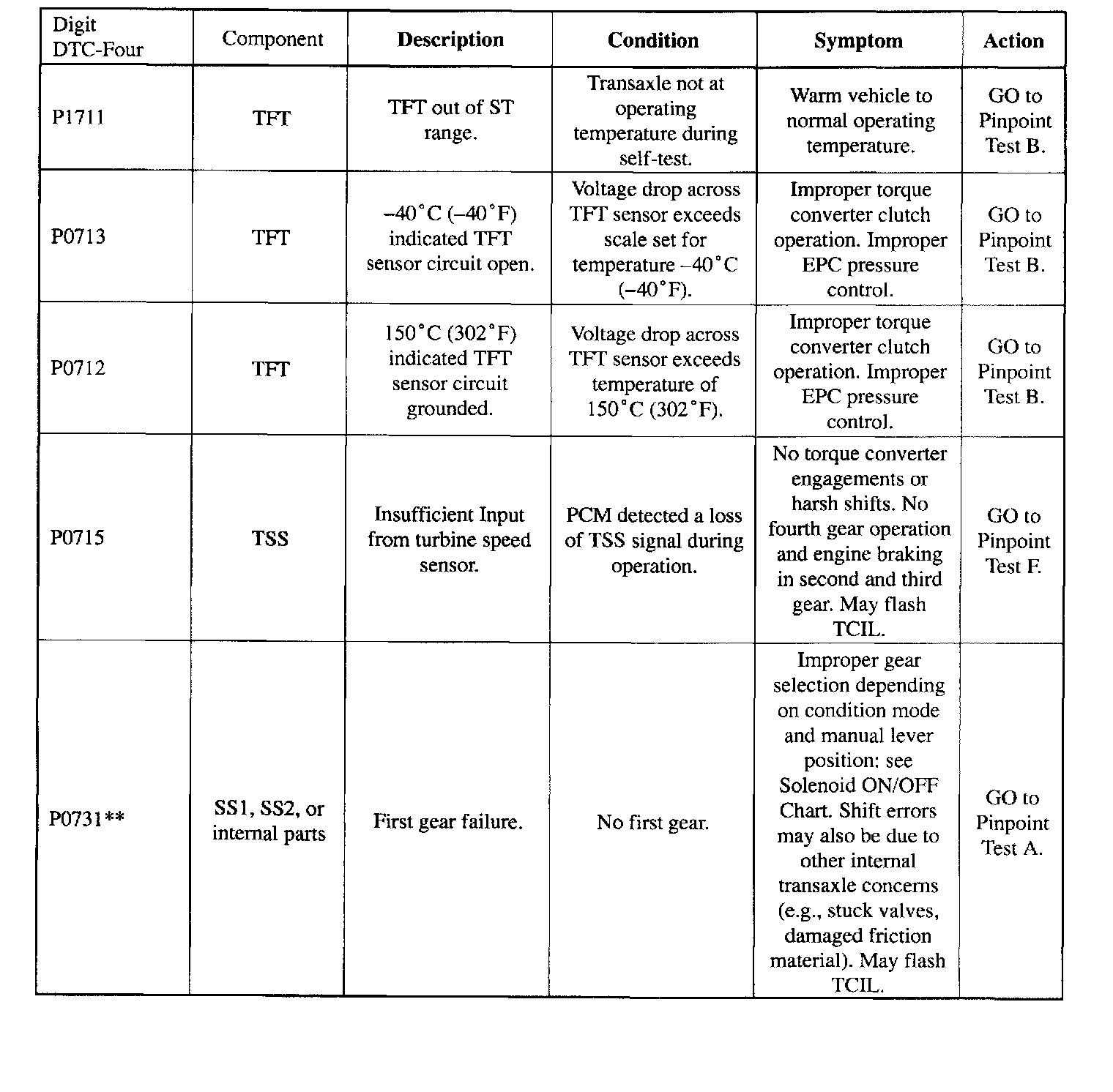

DIAGNOSTIC TROUBLE CODE CHART

Footnotes:

* Output circuit check, generated only by electrical symptoms.
** May also be generated by some other non-electric transaxle hardware system.
