Heated Oxygen Sensor - Rear (Right Hand)

REMOVAL
1. Remove the ignition coil.

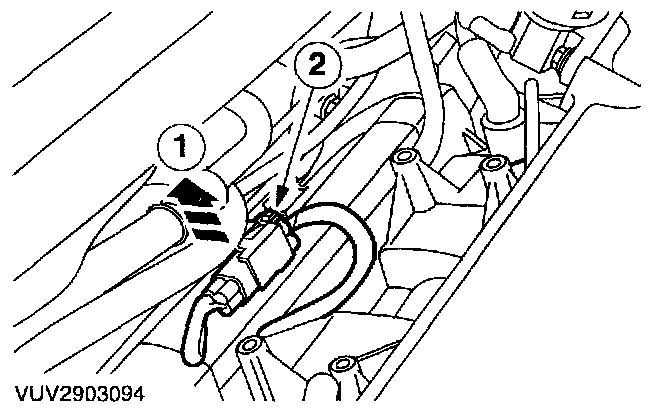

2. Disconnect the Heated Oxygen Sensor (HO2S) electrical connector.
1 Detach the electrical connector.
2 Disconnect the electrical connector.

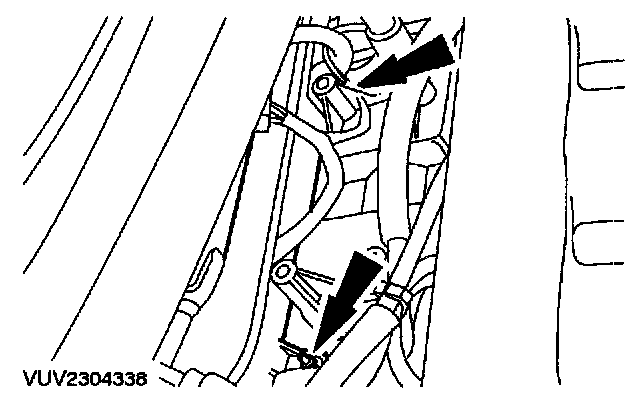

3. Detach the wiring harness.

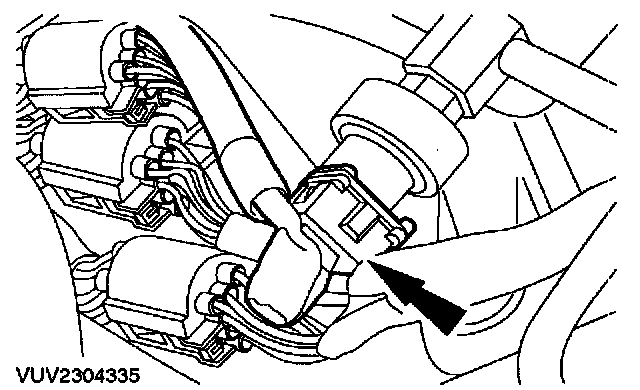

4. Disconnect the power steering pressure switch electrical connector.

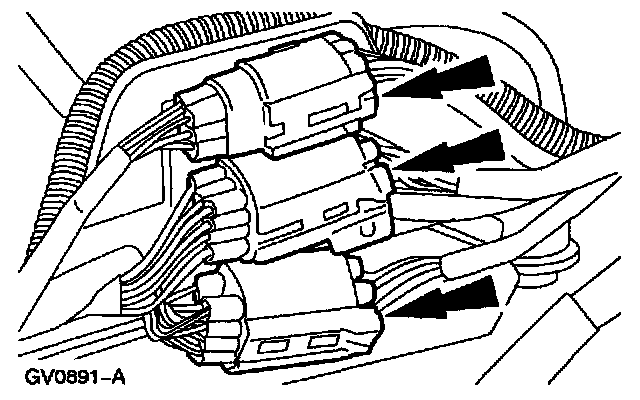

5. Disconnect the fuel charging harness main in-line electrical connector

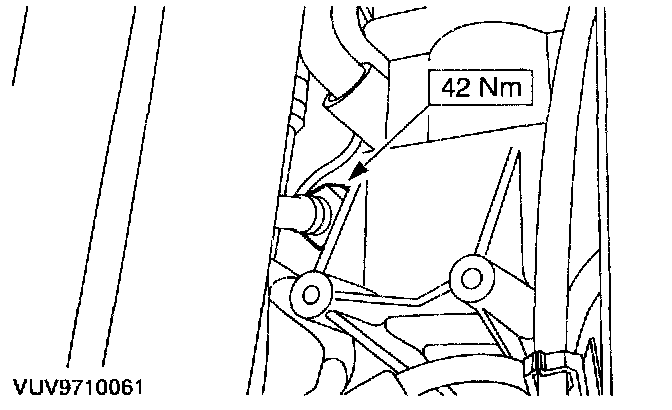

6. Remove the H02S.

INSTALLATION







1. To install, reverse the removal procedure.
