Heated Oxygen Sensor - CMS, Rear (Right-Hand)

REMOVAL

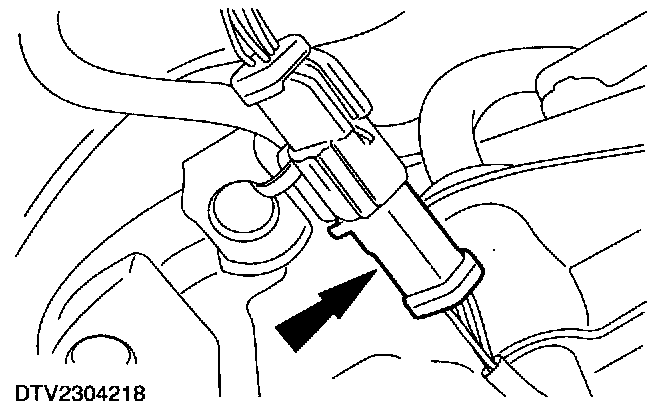

1. Disconnect the Catalyst Monitor Sensor (CMS) electrical connector.

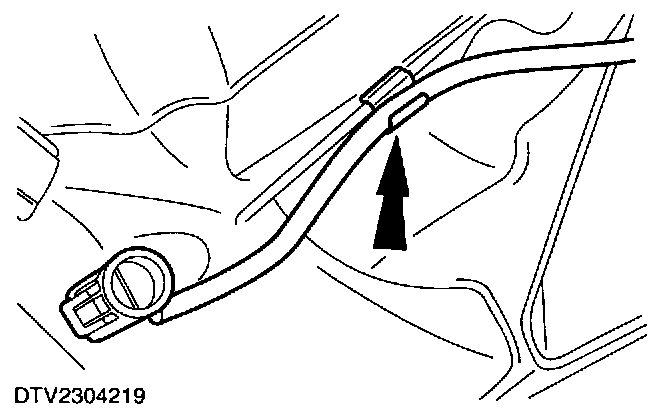

2. Detach the CMS wiring harness from the retaining dip on the transaxle housing.







3. Remove the CMS.

INSTALLATION







1. To install, reverse the removal procedure.
