Heated Oxygen Sensor - CMS, Front (Left Hand)

REMOVAL

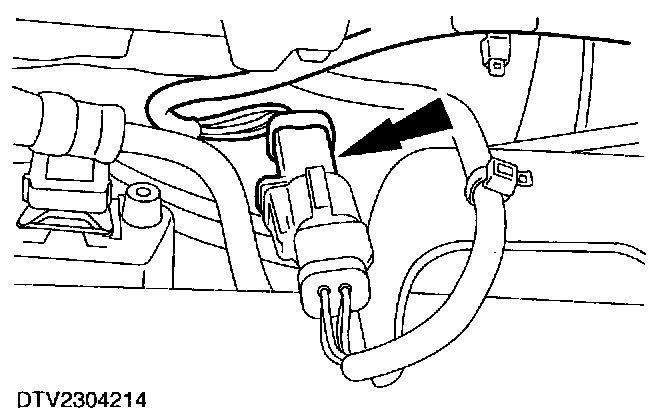

1. Disconnect the Catalyst Monitor Sensor (CMS) electrical connector.

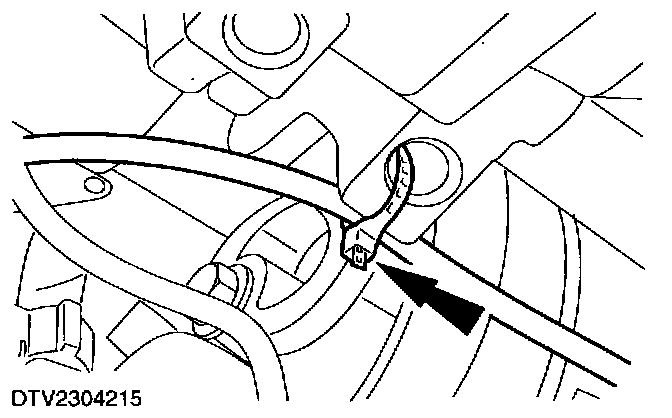

2. Detach the CMS wiring harness from the engine block.
^ Cut the cable tie.







3. Remove the CMS.

INSTALLATION







1. To install, reverse the removal procedure.
^ Install a new cable tie.
