Mercury
>>
1999
>>
Cougar V6-153 2.5L DOHC VIN L SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>

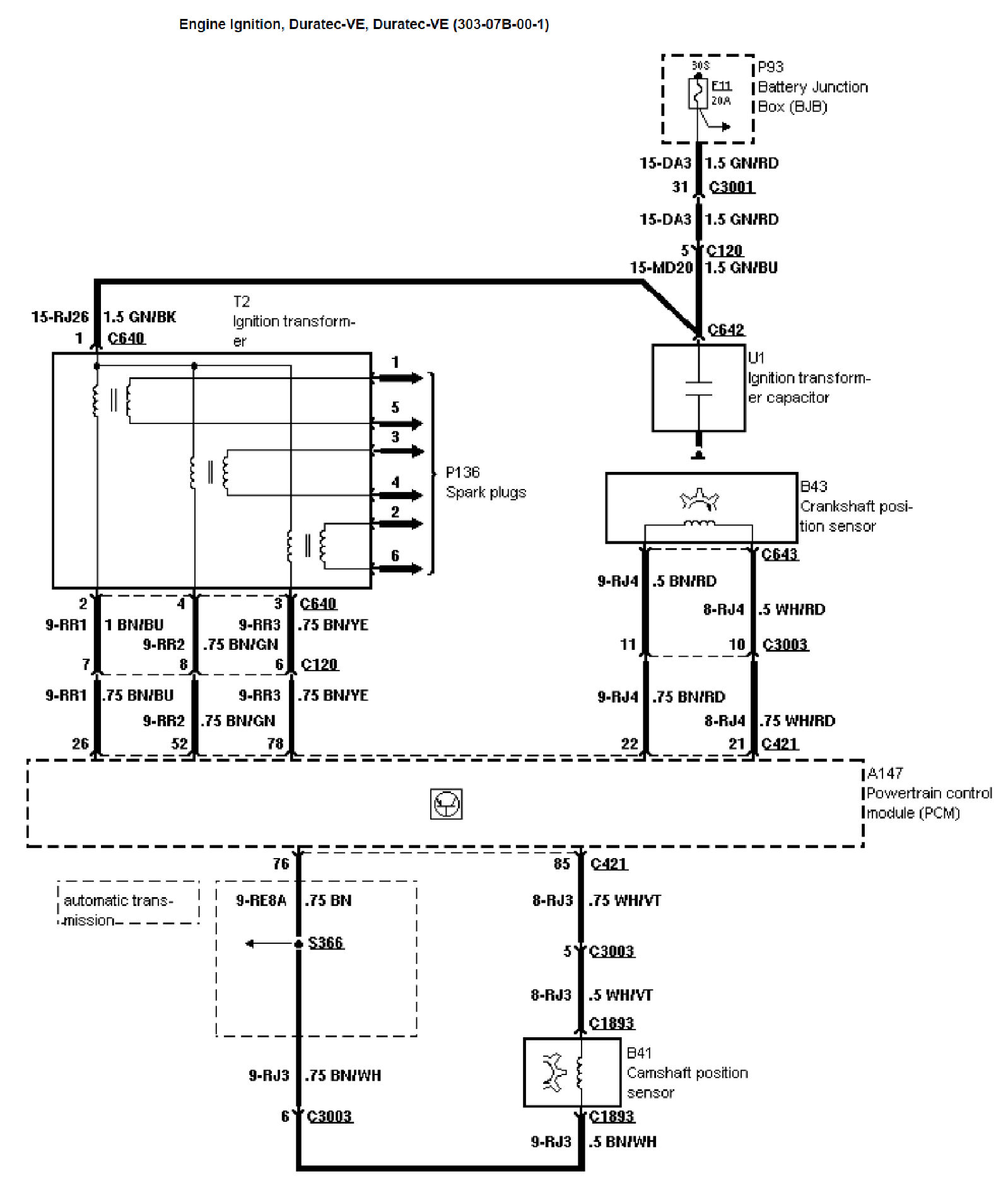

Electrical Diagrams
>>
Built After May 24, 1999
Built After May 24, 1999
Built After May 24, 1999:
