Catalytic Converter: Service and Repair

Removal
1. Raise and support the vehicle.

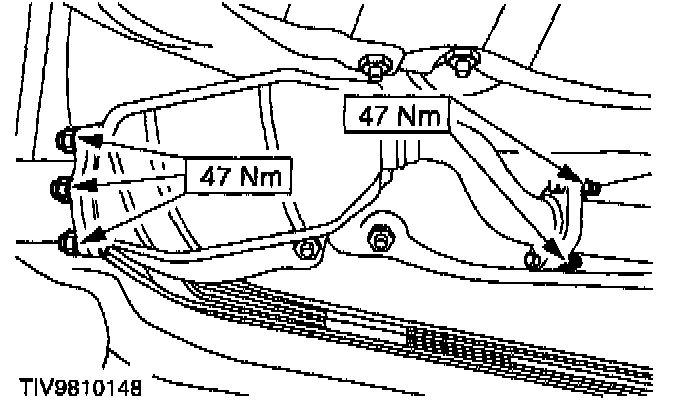

Vehicles with manual transaxle





2. Remove the catalytic converter.

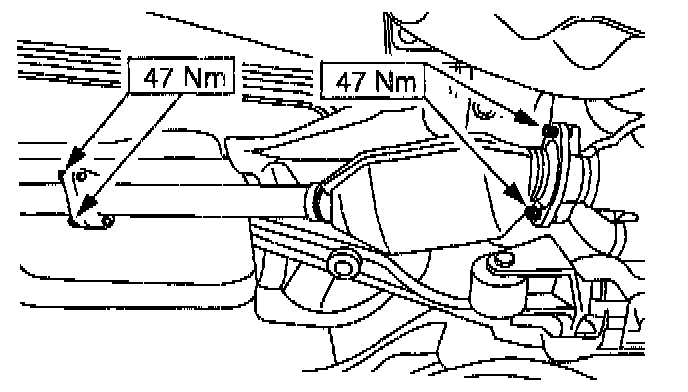

Vehicles with automatic transaxle





3. Remove the catalytic converter.

Installation
Vehicles with manual transaxle





1. CAUTION: Never use jointing compound forward of a secondary catalytic converter.

NOTE: Install new nuts, To install, reverse the removal procedure.

Vehicles with automatic transaxle





2. CAUTION: Never use jointing compound forward of a catalytic converter.

NOTE: Install new nuts.

To install, reverse the removal procedure.

All Vehicles
3. Lower the vehicle.
