Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> D: Air Bag Control Module Does Not Respond to NGS Tester

D: Air Bag Control Module Does Not Respond to NGS Tester

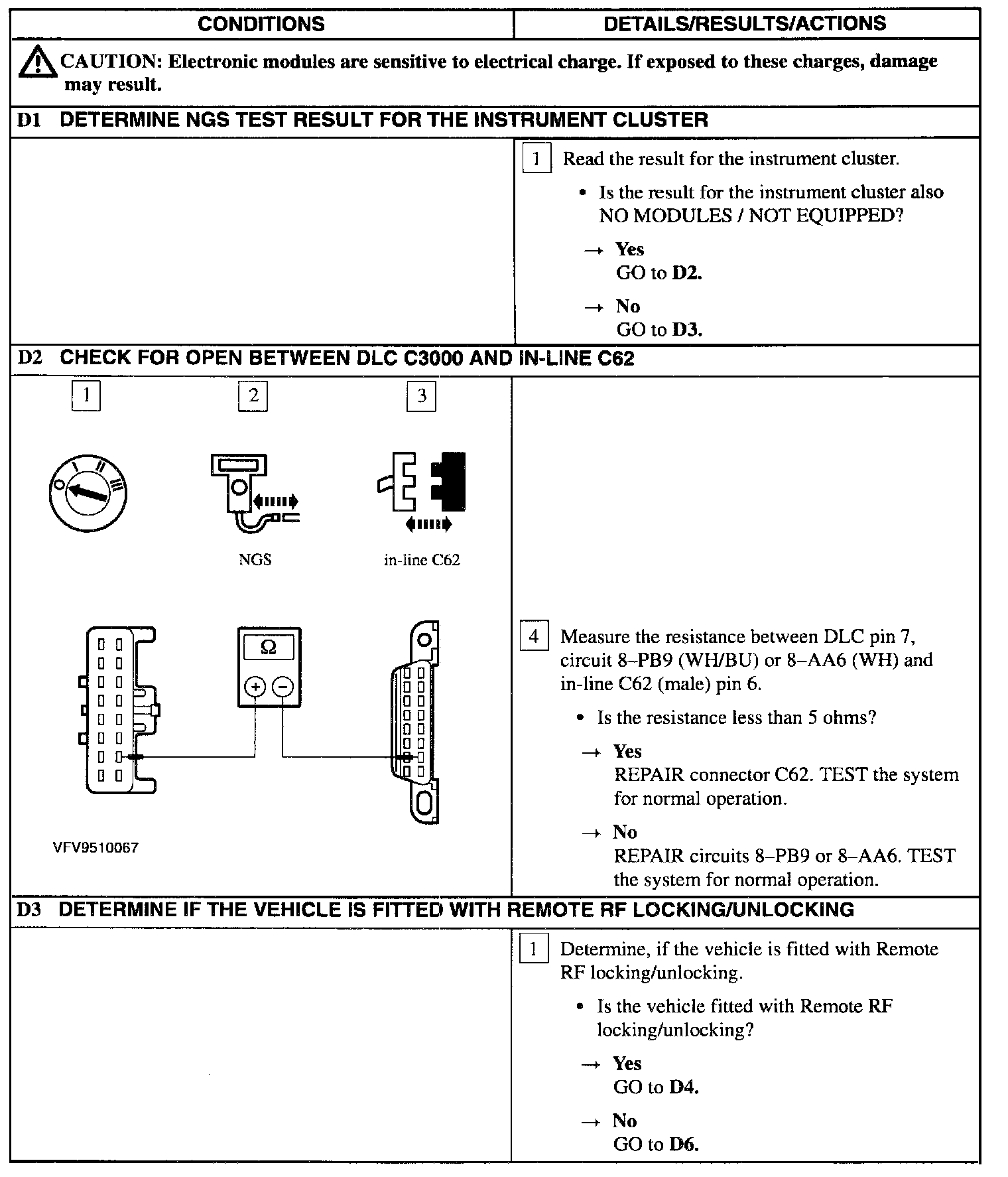

D1 - D3:

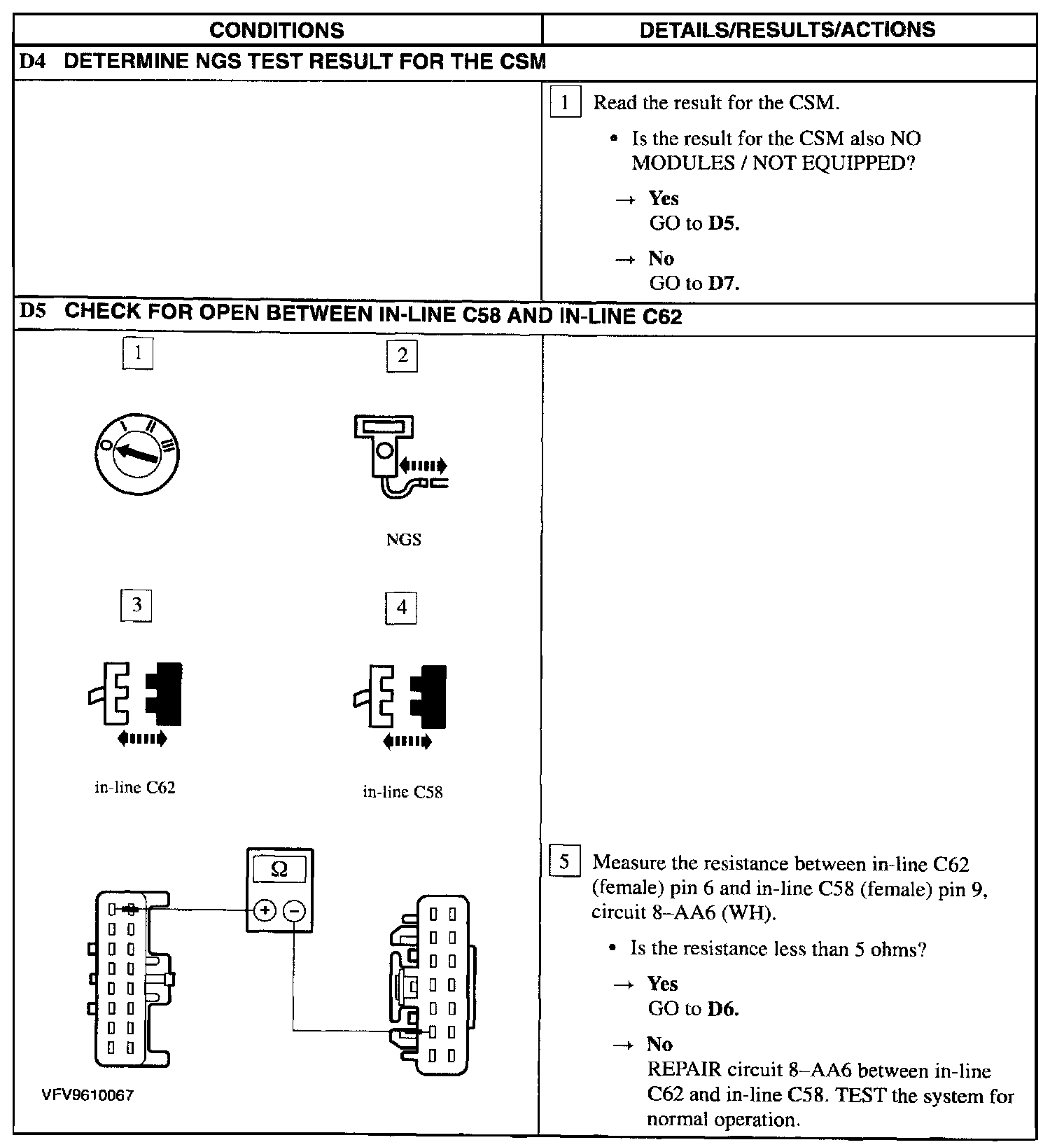

D4 - D5:

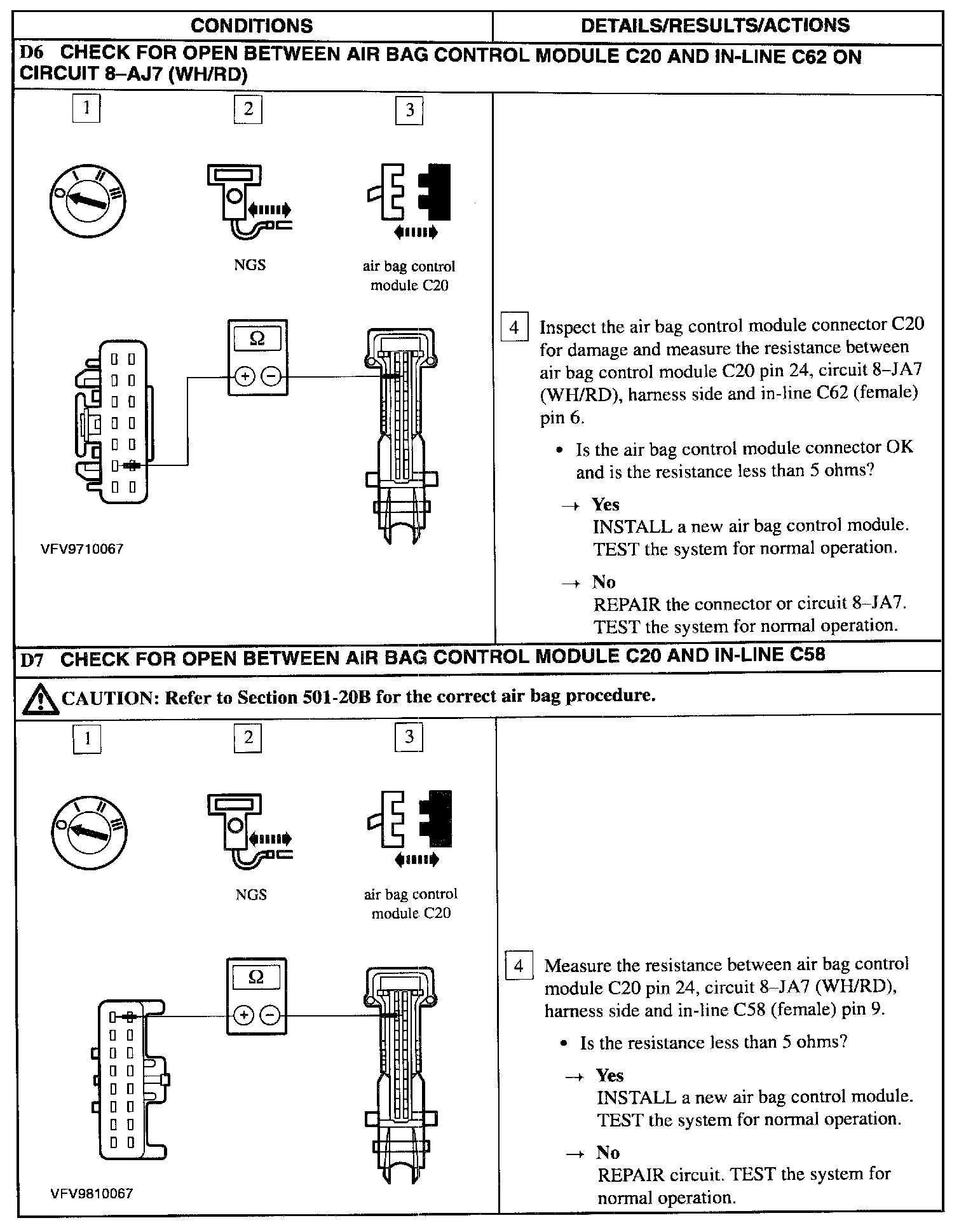

D6 - D7:
