Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Testing and Inspection >> Pinpoint Tests >> Test N: One Turn Signal/Hazard Lamp Inoperative

Test N: One Turn Signal/Hazard Lamp Inoperative

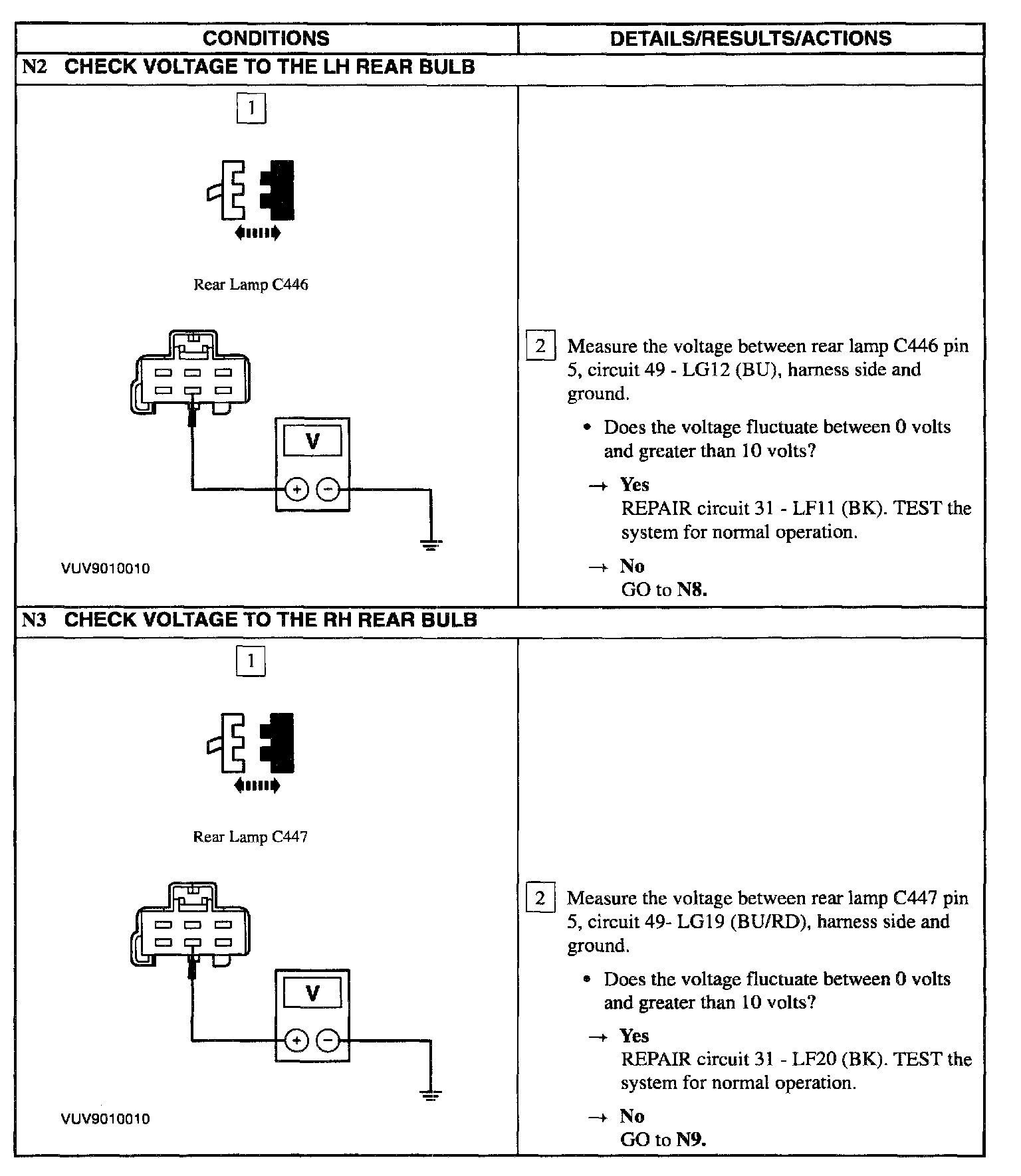

N2 - N3:

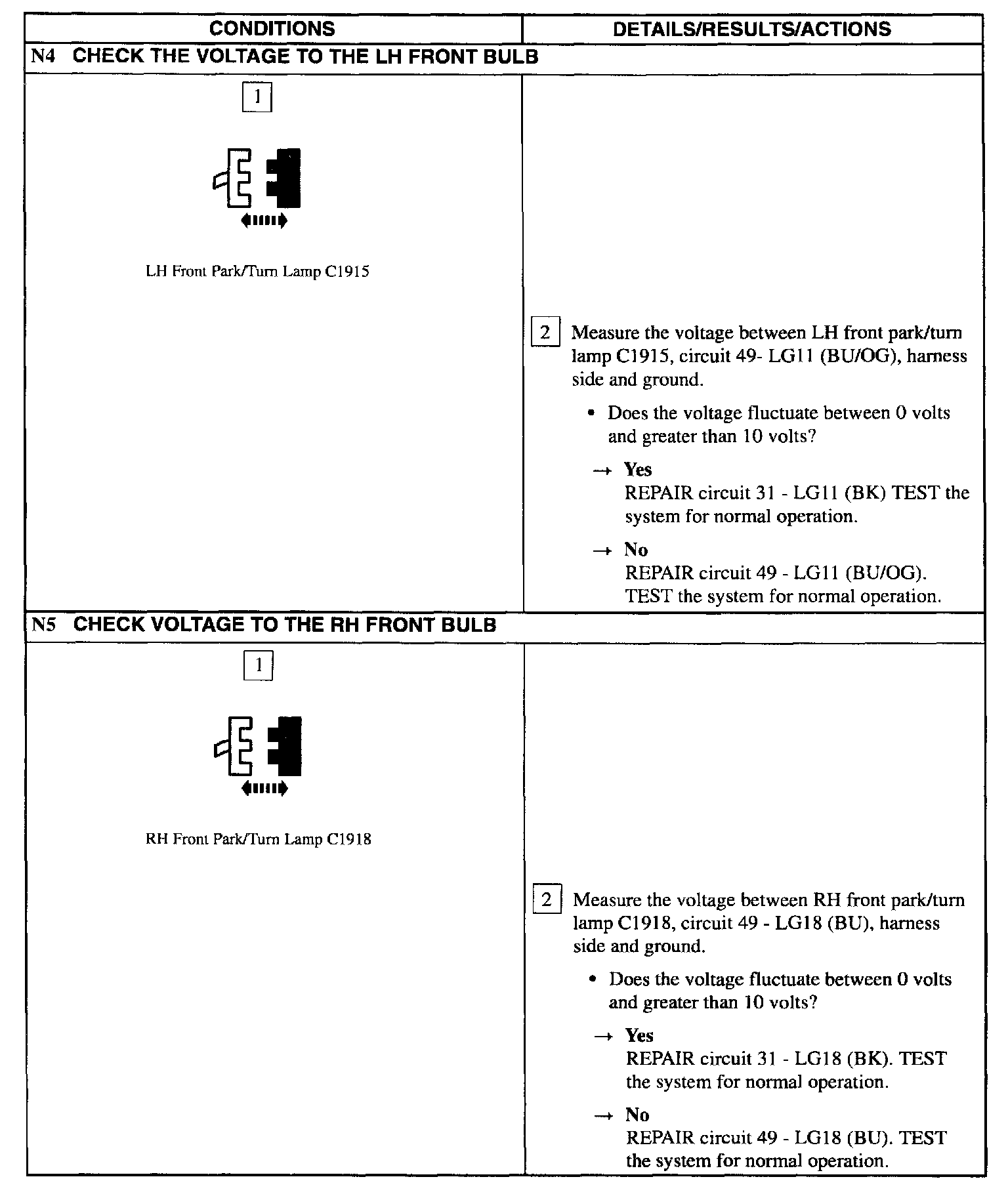

N4 - N5:

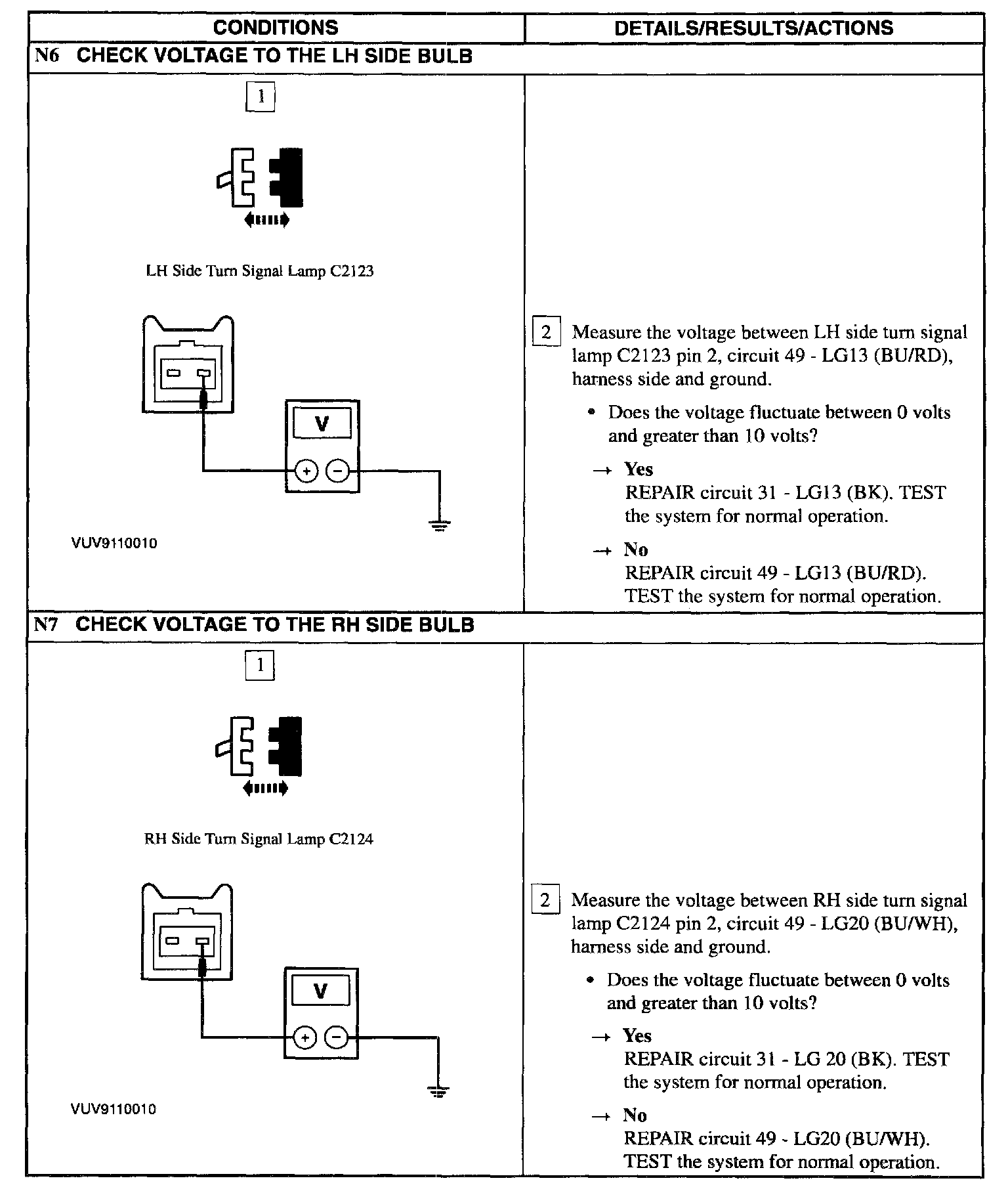

N6 - N7:






N8 - N9:
