Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Testing and Inspection >> Pinpoint Tests >> Test B : Horn System Inoperative

Test B : Horn System Inoperative

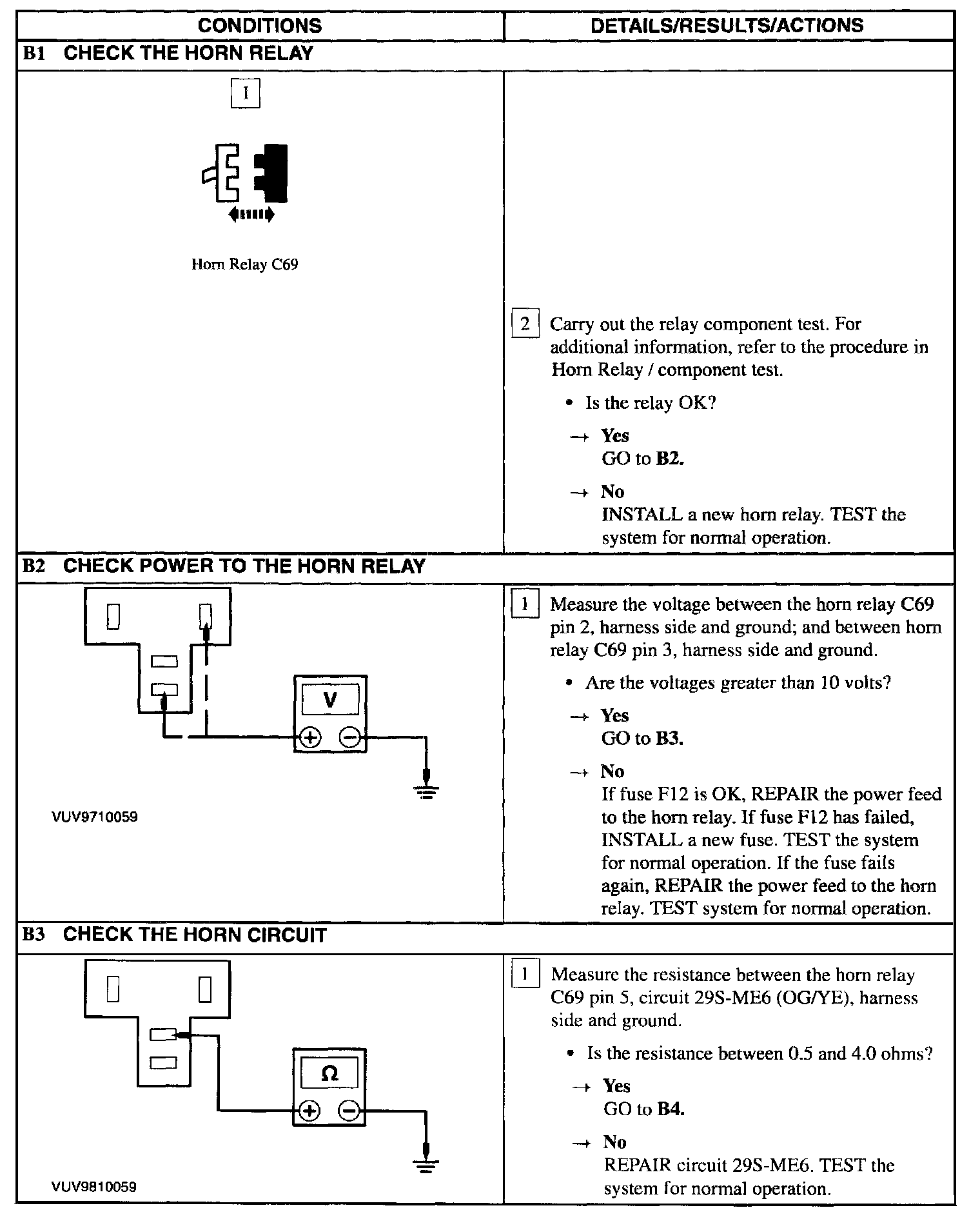

B1 - B3:

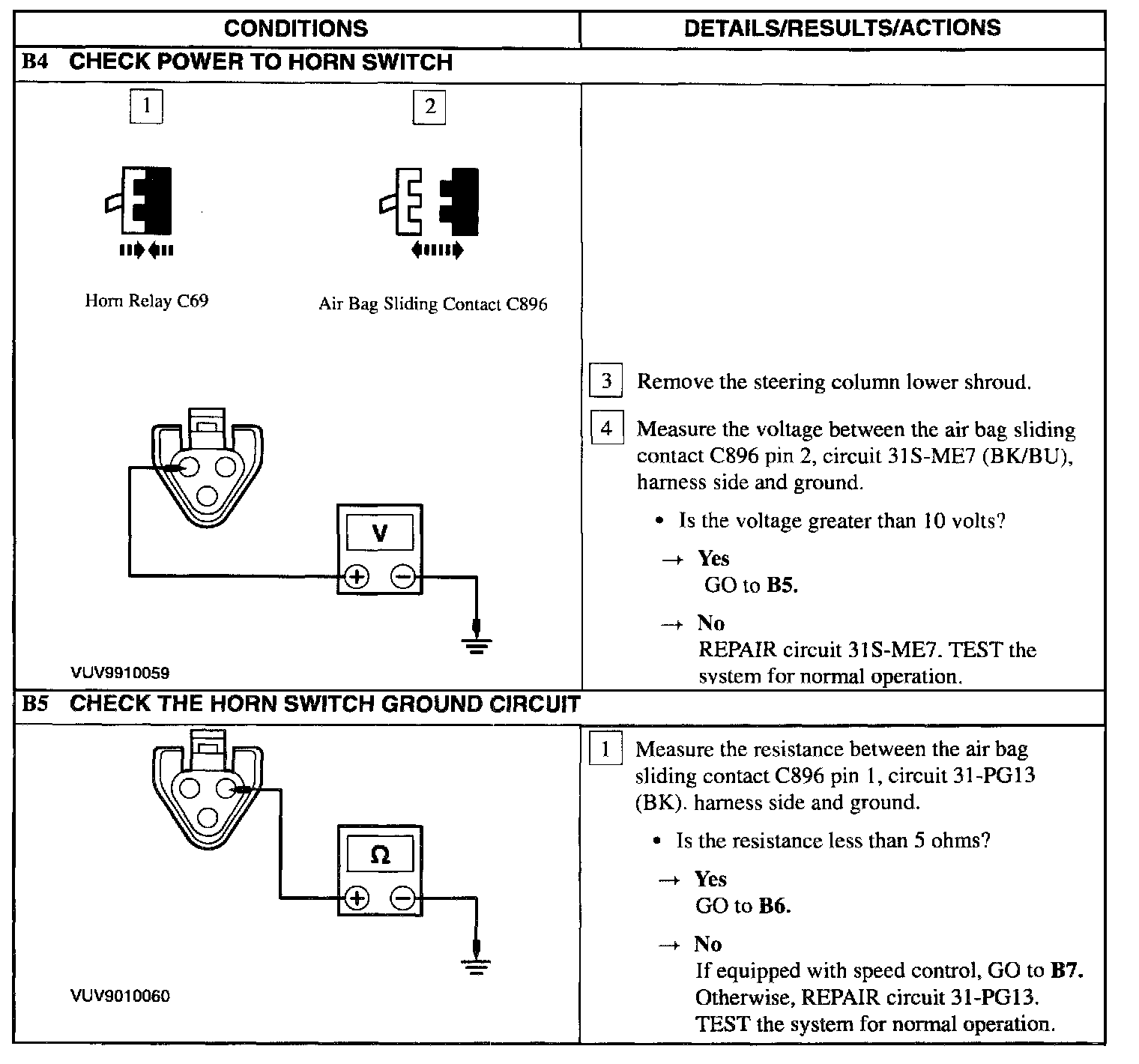

B4 - B5:

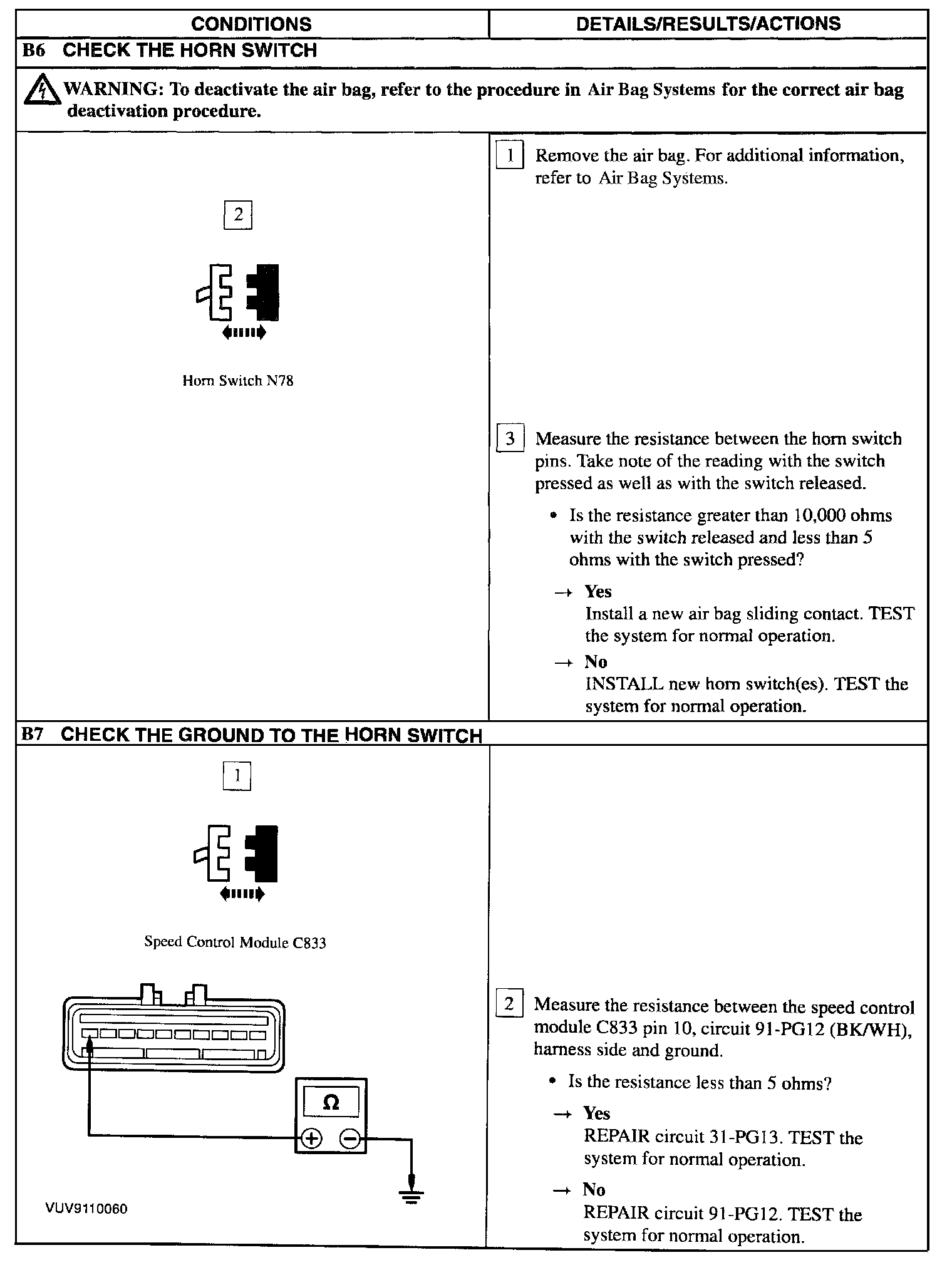

B6 - B7:
