Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> E: A Single Illumination Source Is Inoperative

E: A Single Illumination Source Is Inoperative

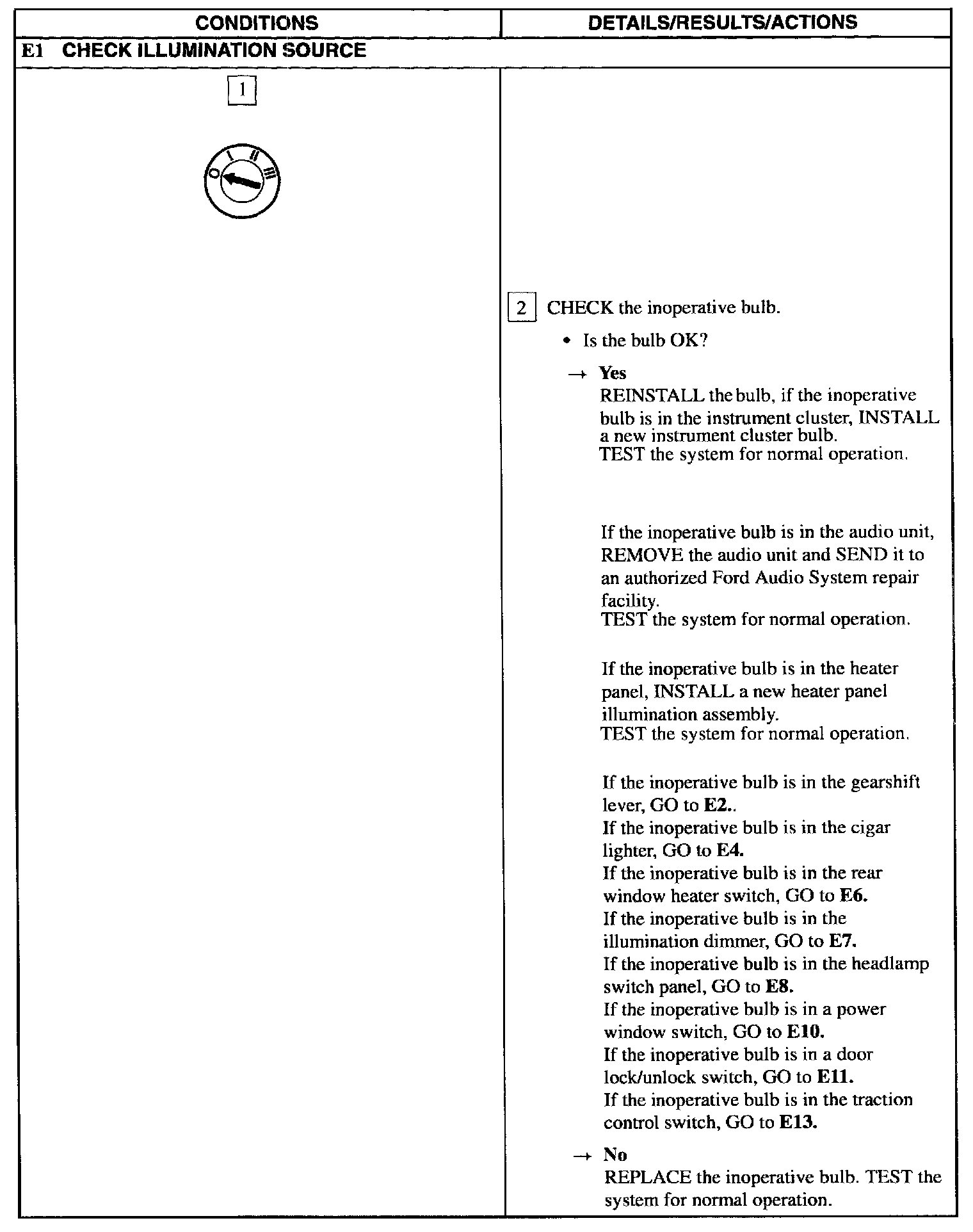

E1:

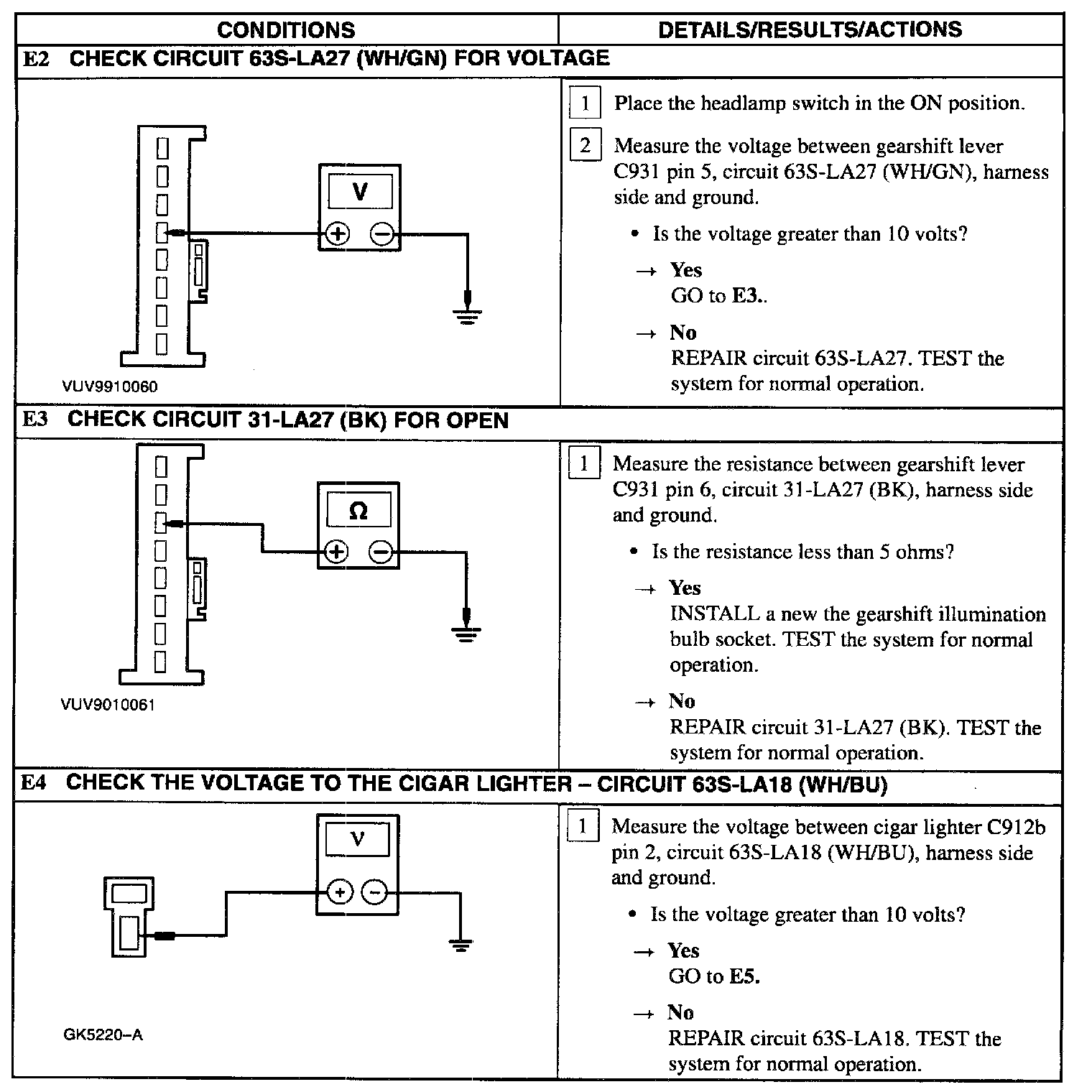

E2 - E4:

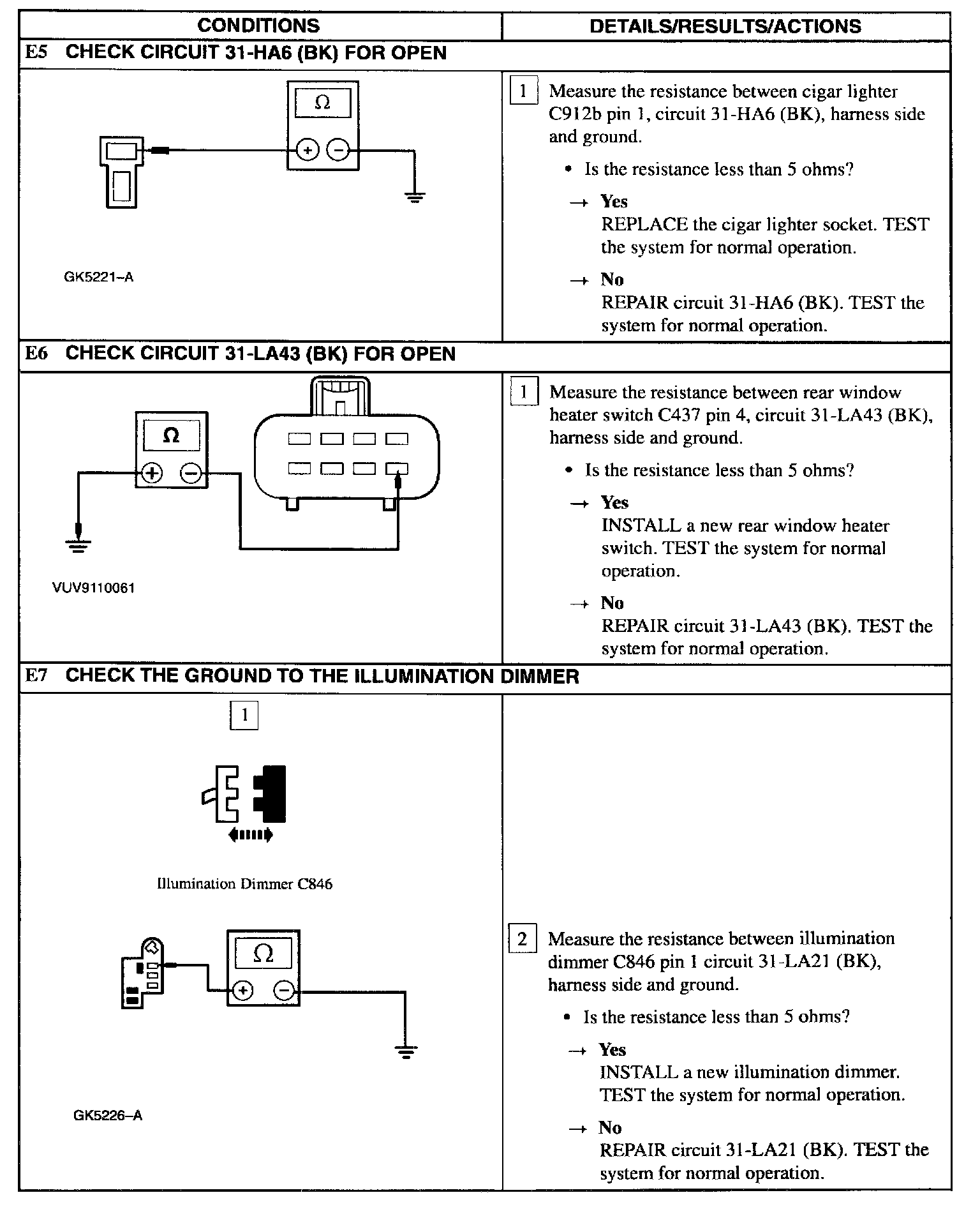

E5 - E7:

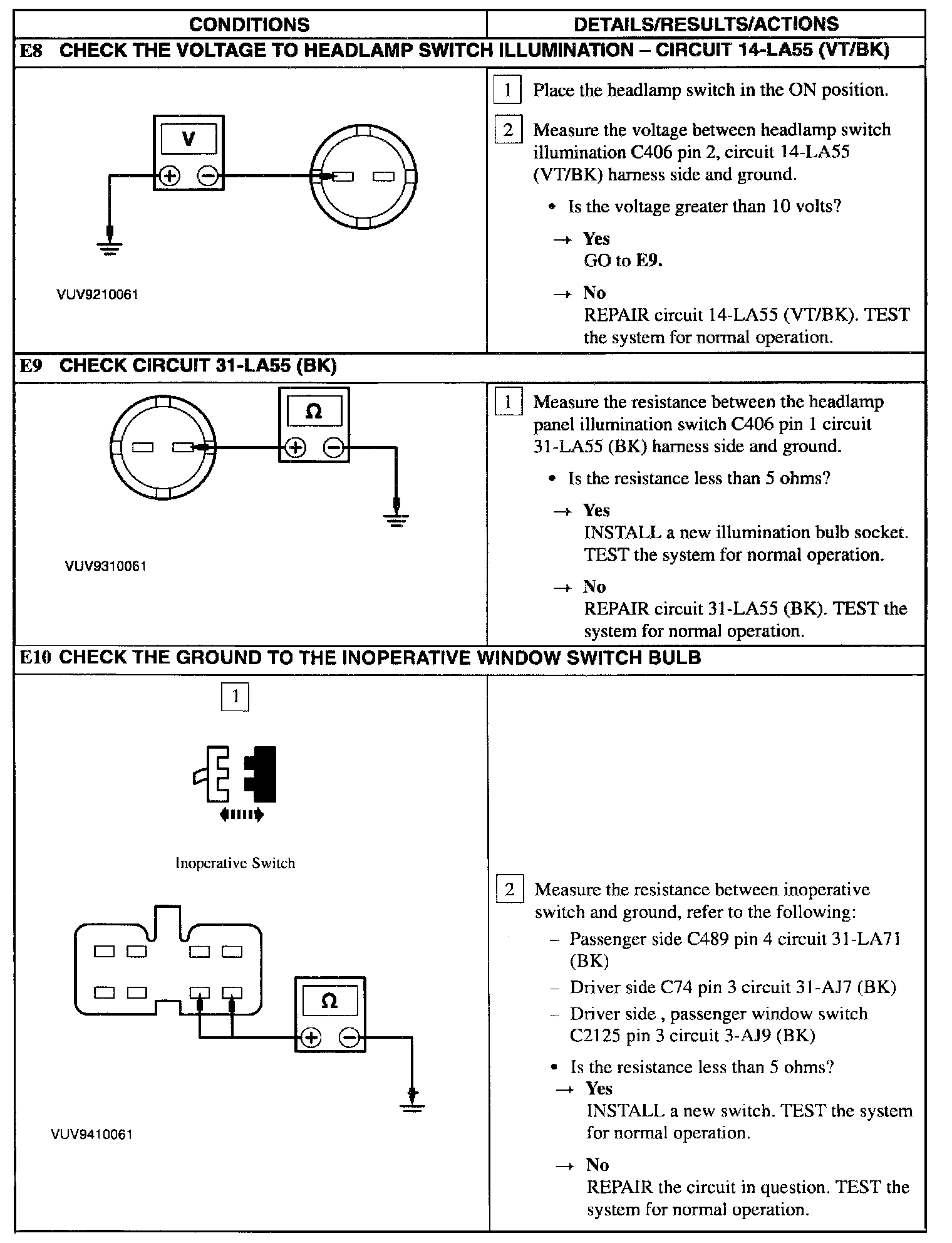

E8 - E10:

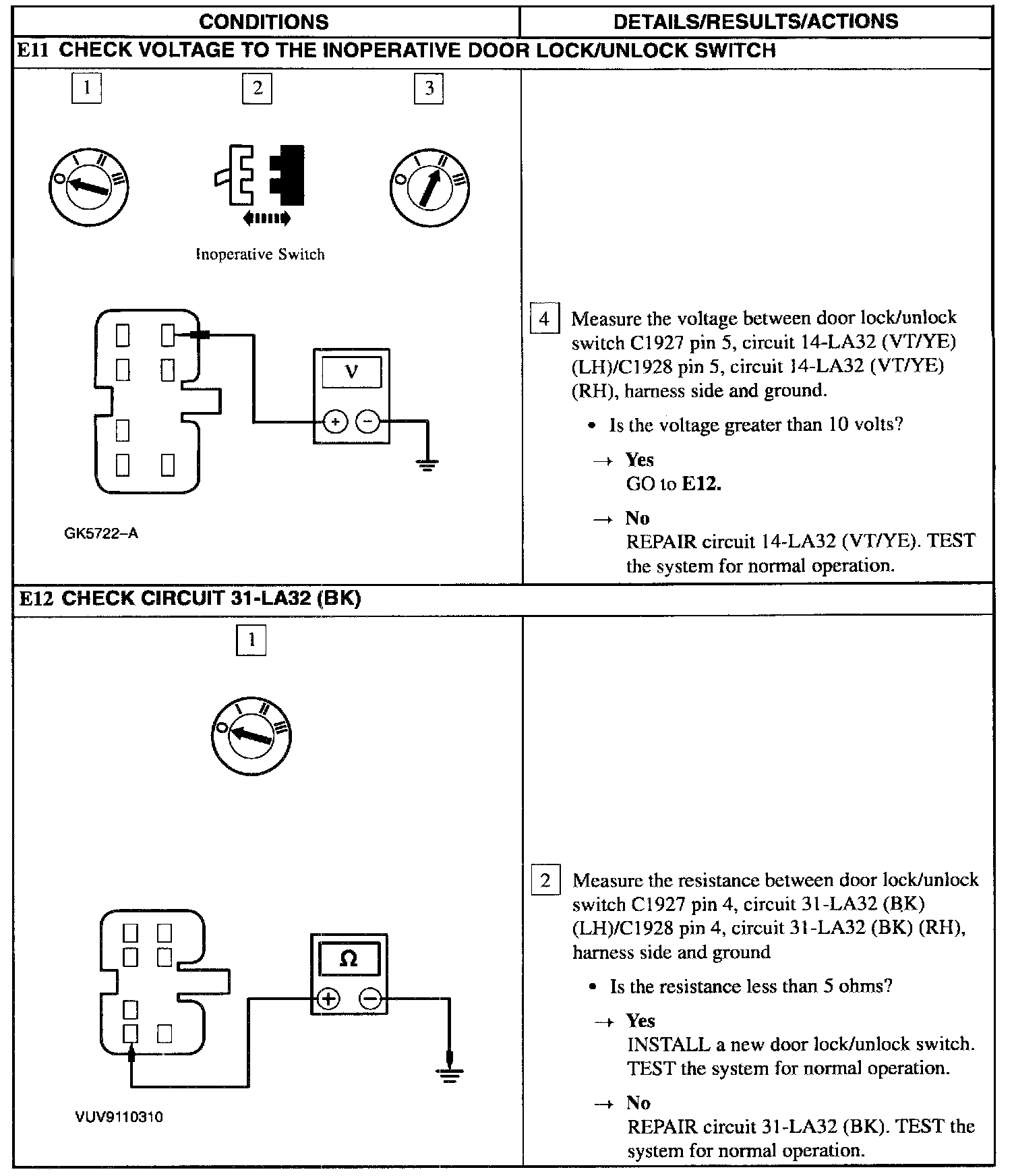

E11 - E12:

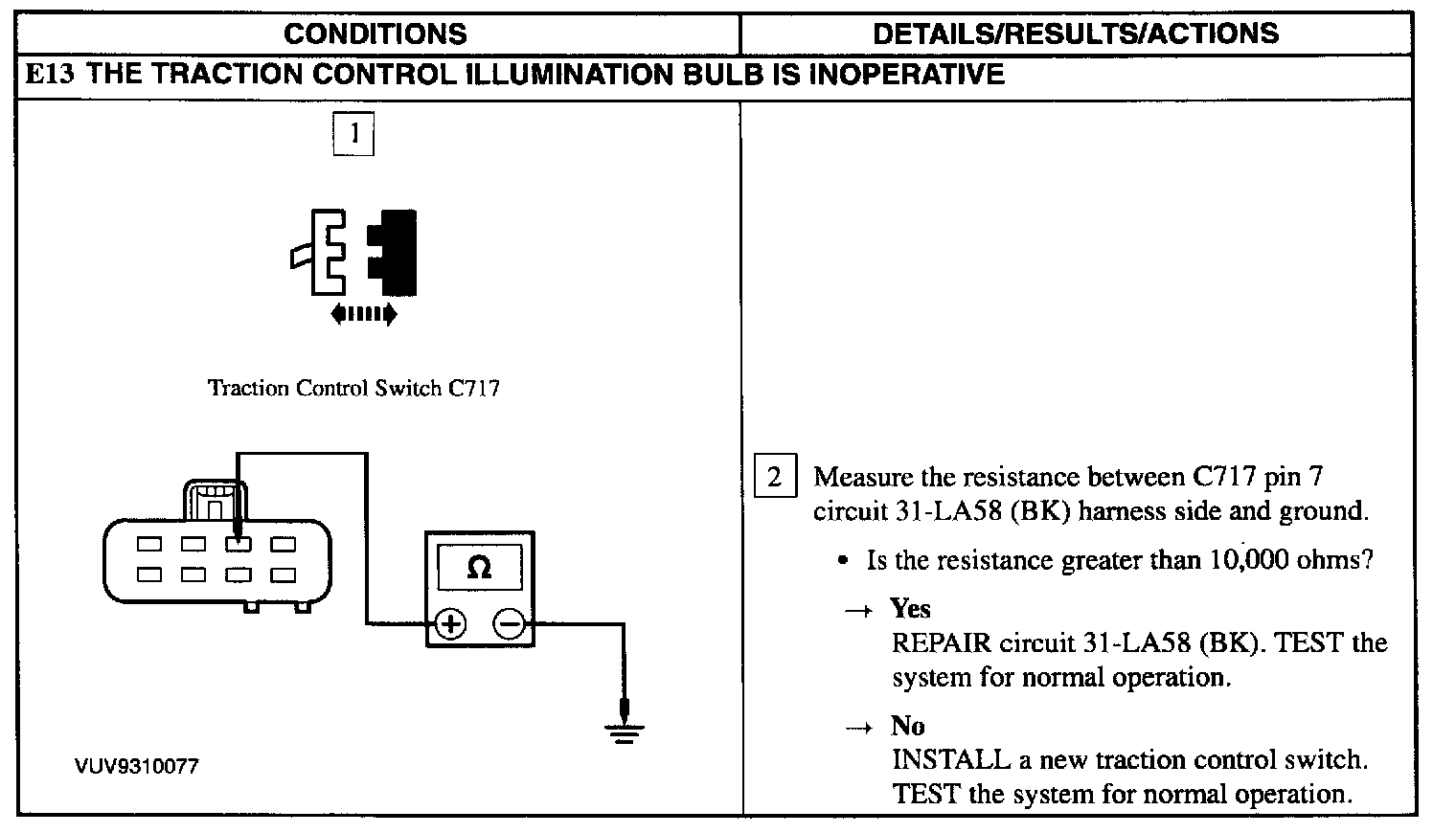

E13:
