FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1999
>>
Cougar V6-153 2.5L DOHC VIN L SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Testing and Inspection
>>
Pinpoint Tests
>>
M: An indicator Is Always ON - Bulb Out Warning Indicator
M: An indicator Is Always ON - Bulb Out Warning Indicator

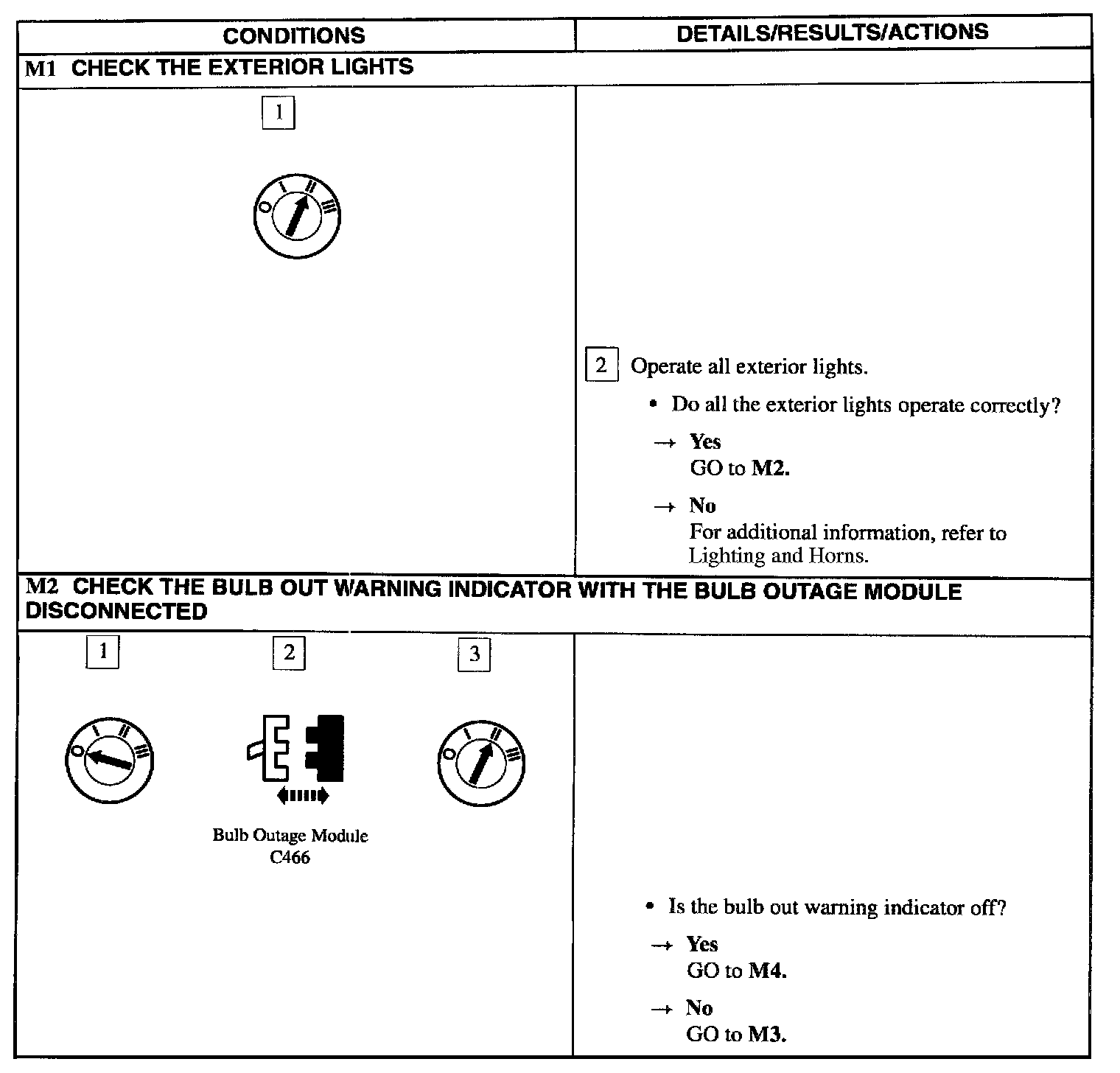

M1 - M2:

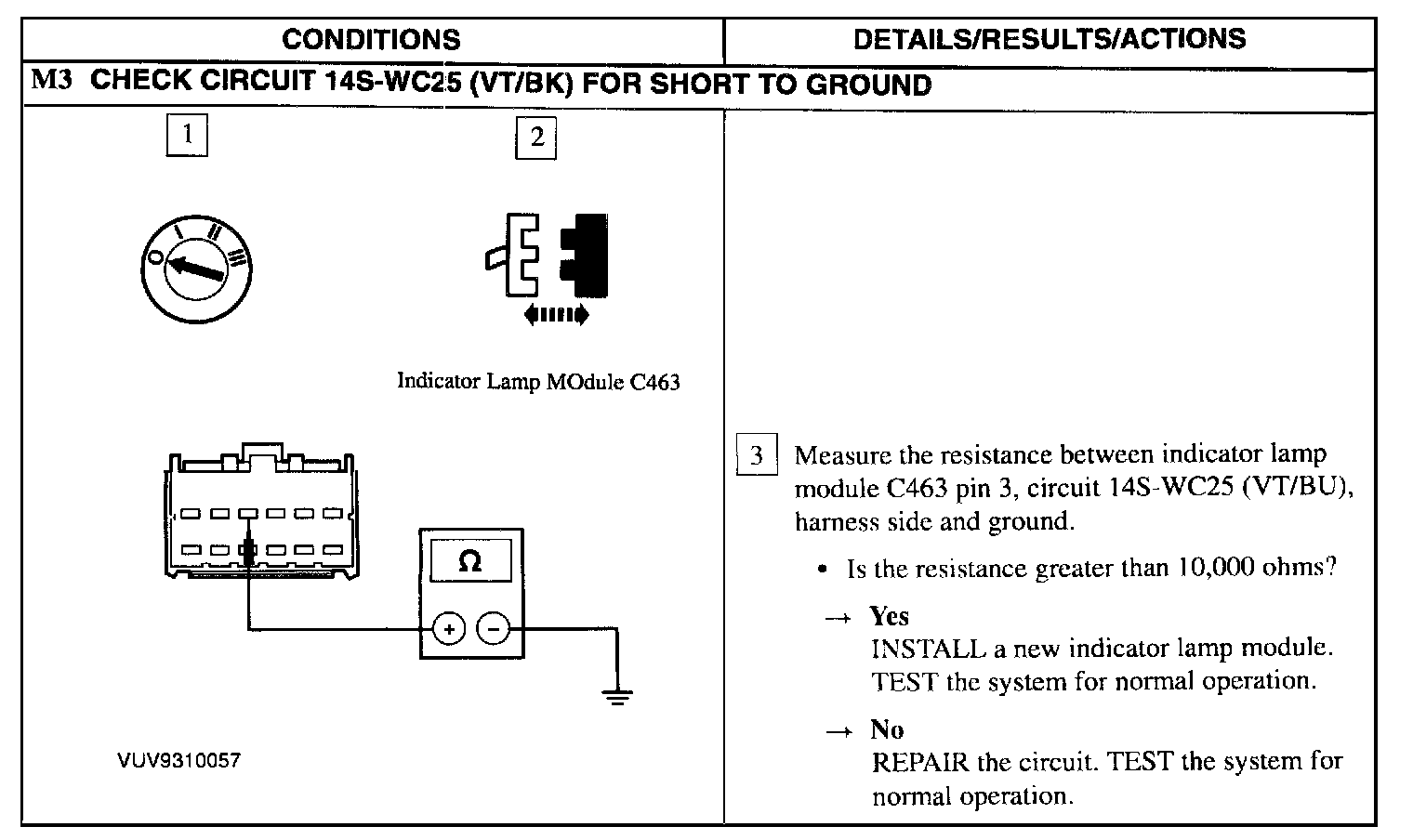

M3:

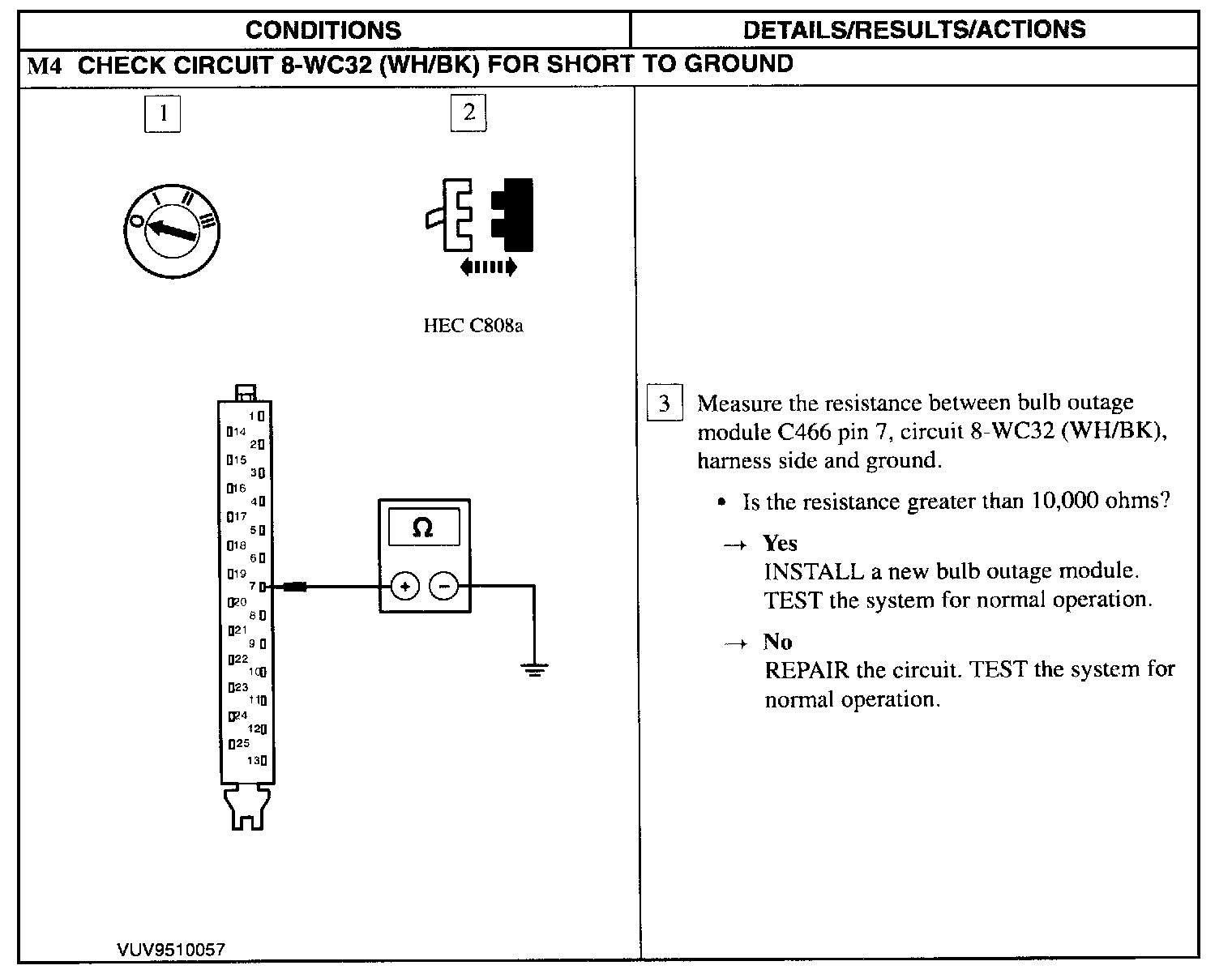

M4:
