J: An Indicator Is Inop/Always ON - Brake Pad Wear Indicator
J: An Indicator Is Inop/Always ON - Brake Pad Wear Indicator

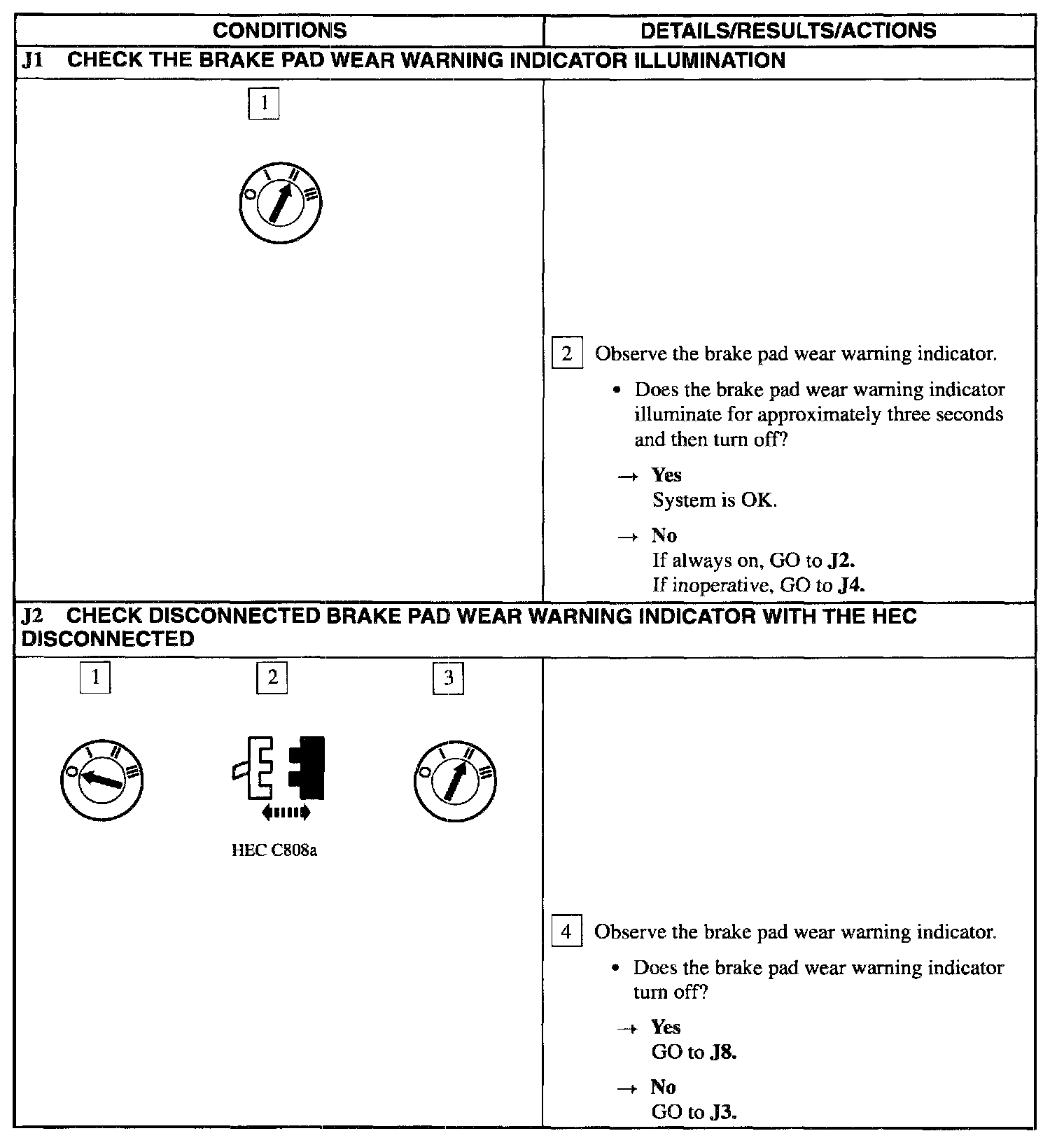

J1 - J2:

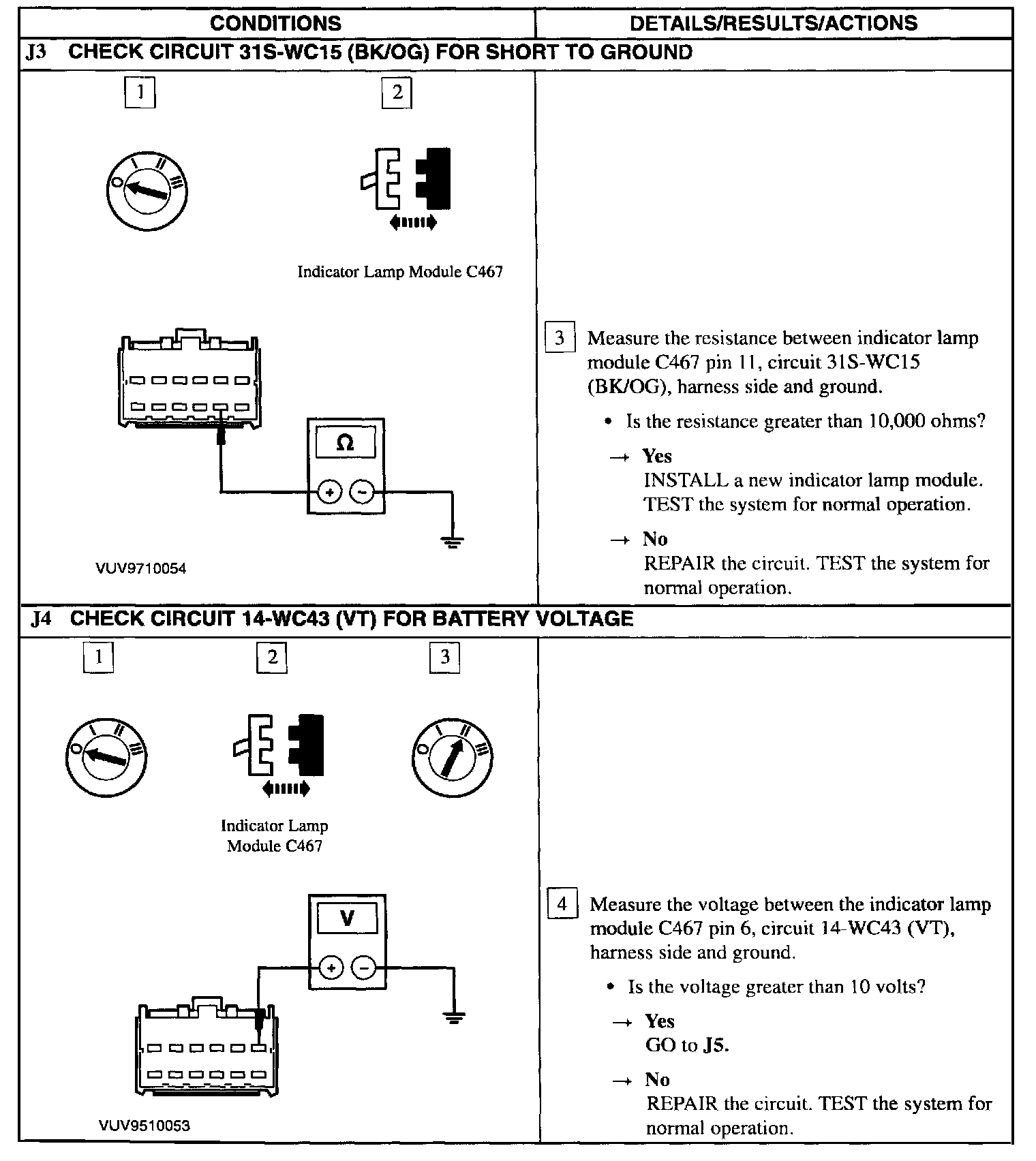

J3 - J4:

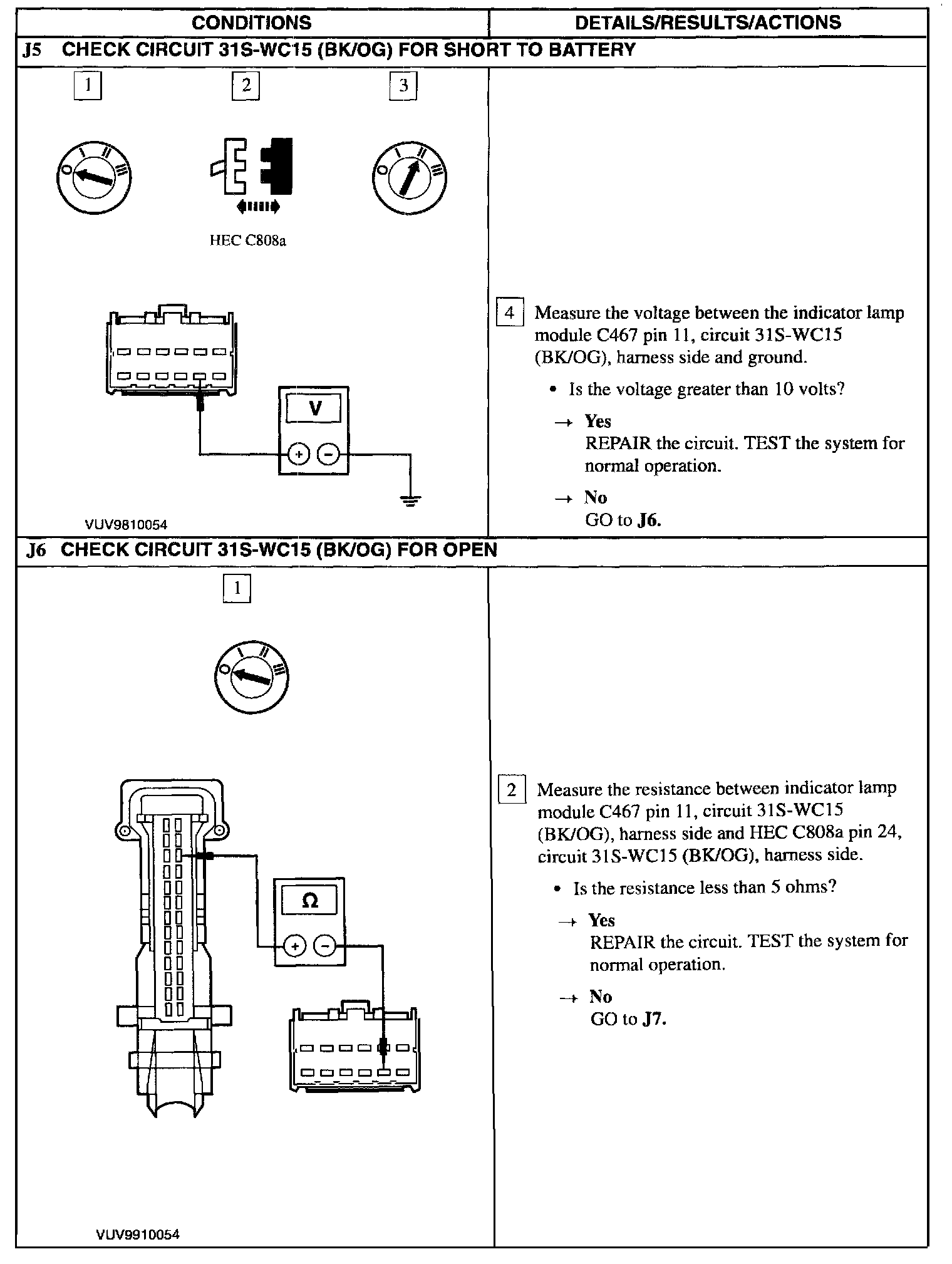

J5 - J6:

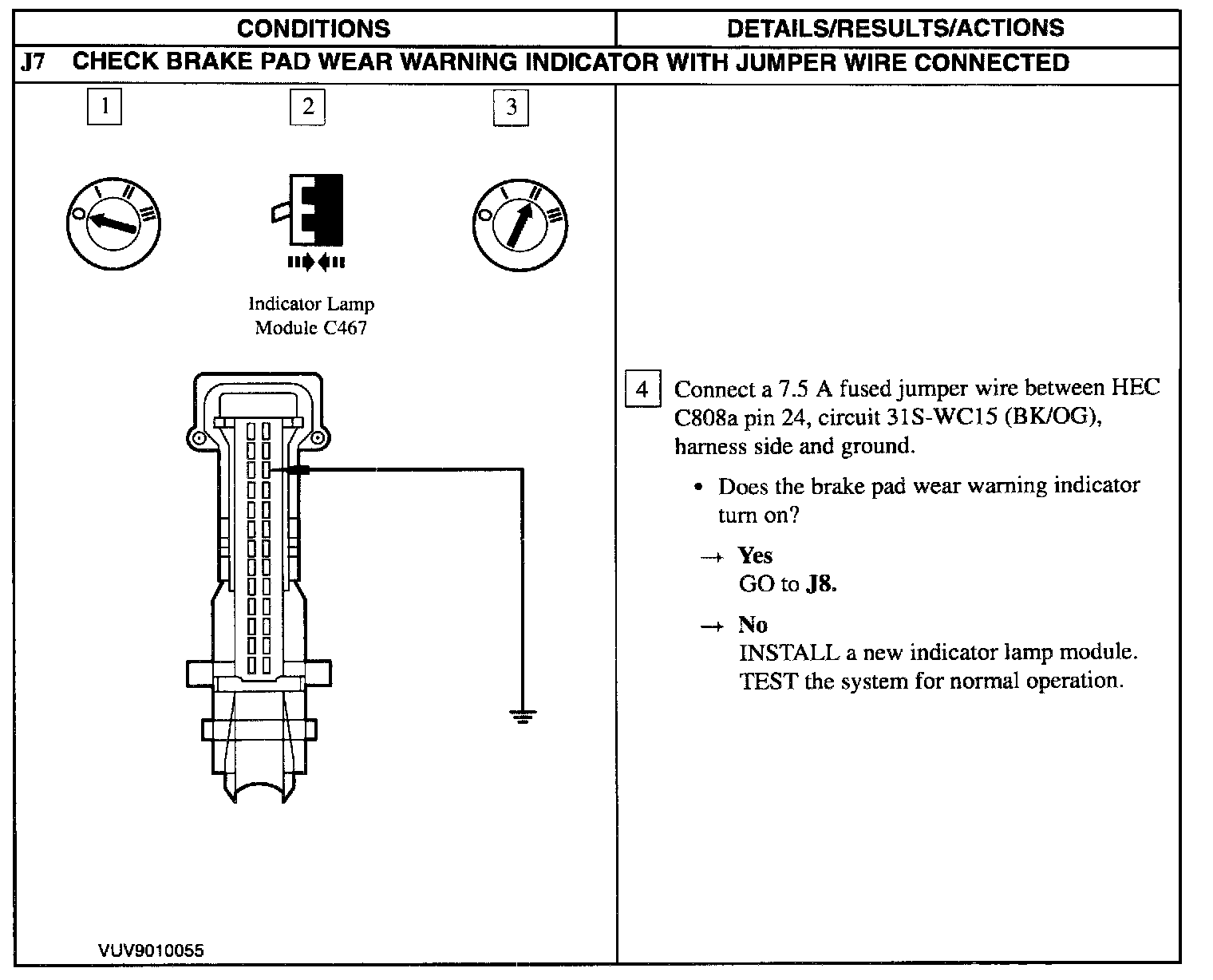

J7:

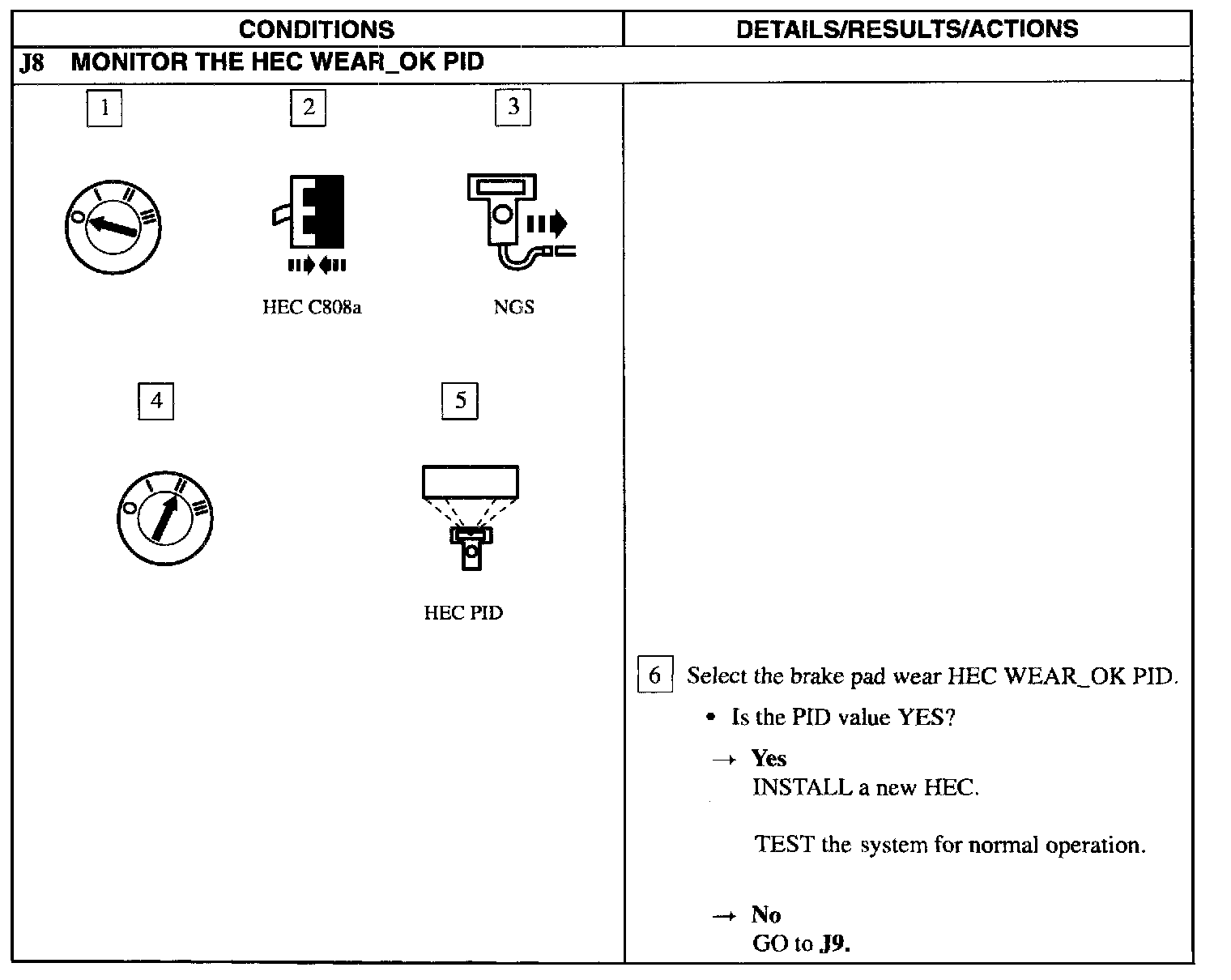

J8:

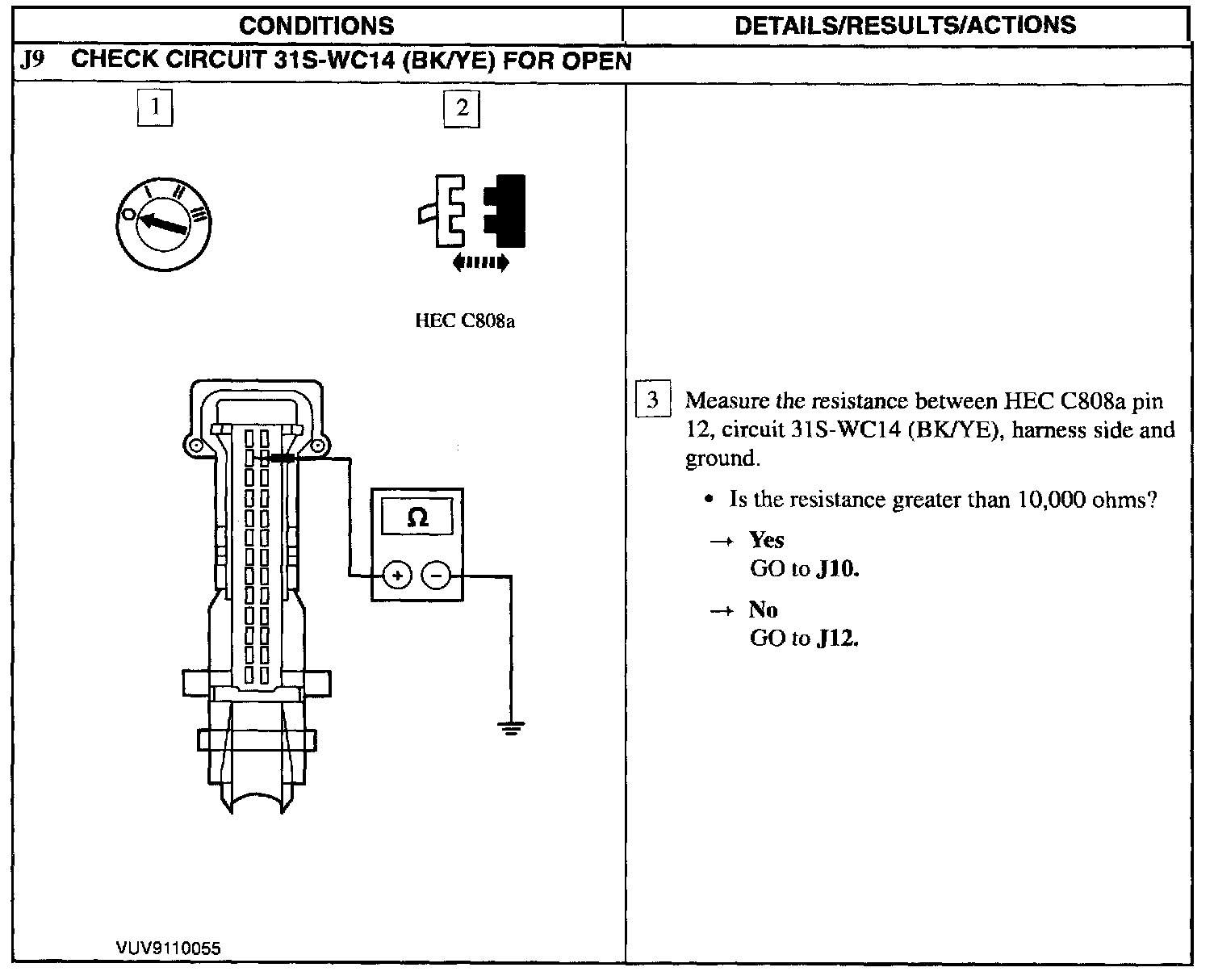

J9:

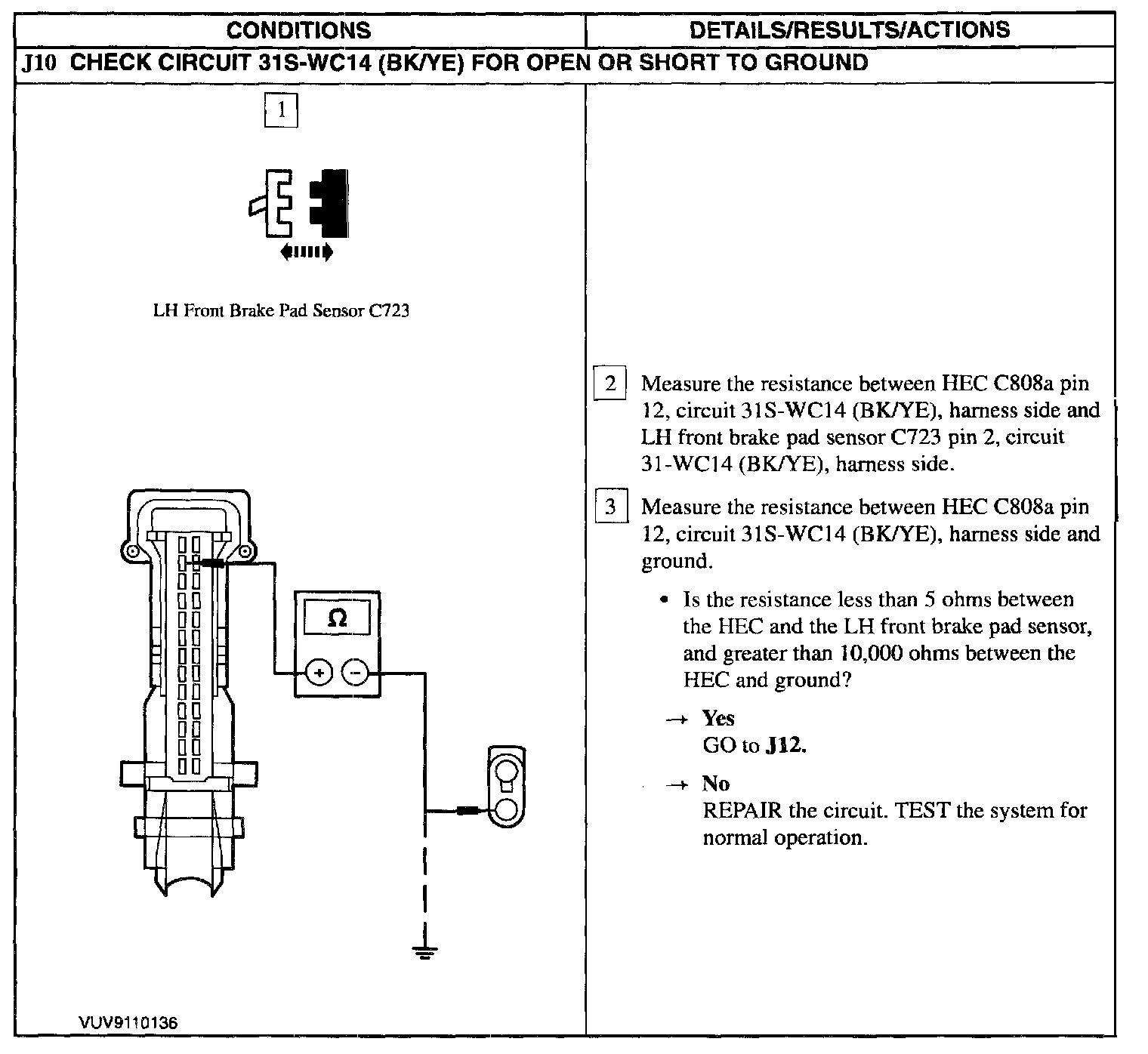

J10:

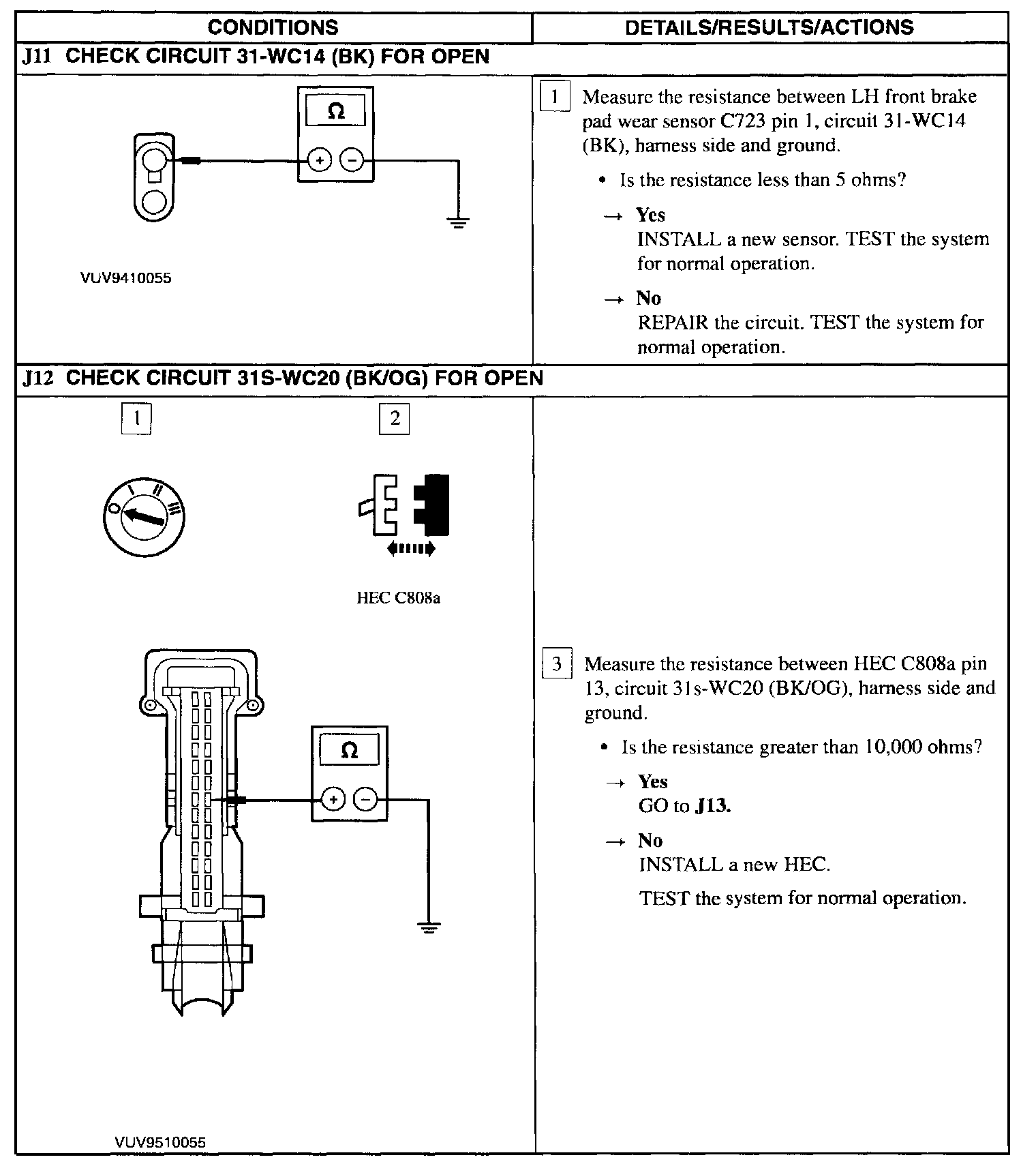

J11 - J12:

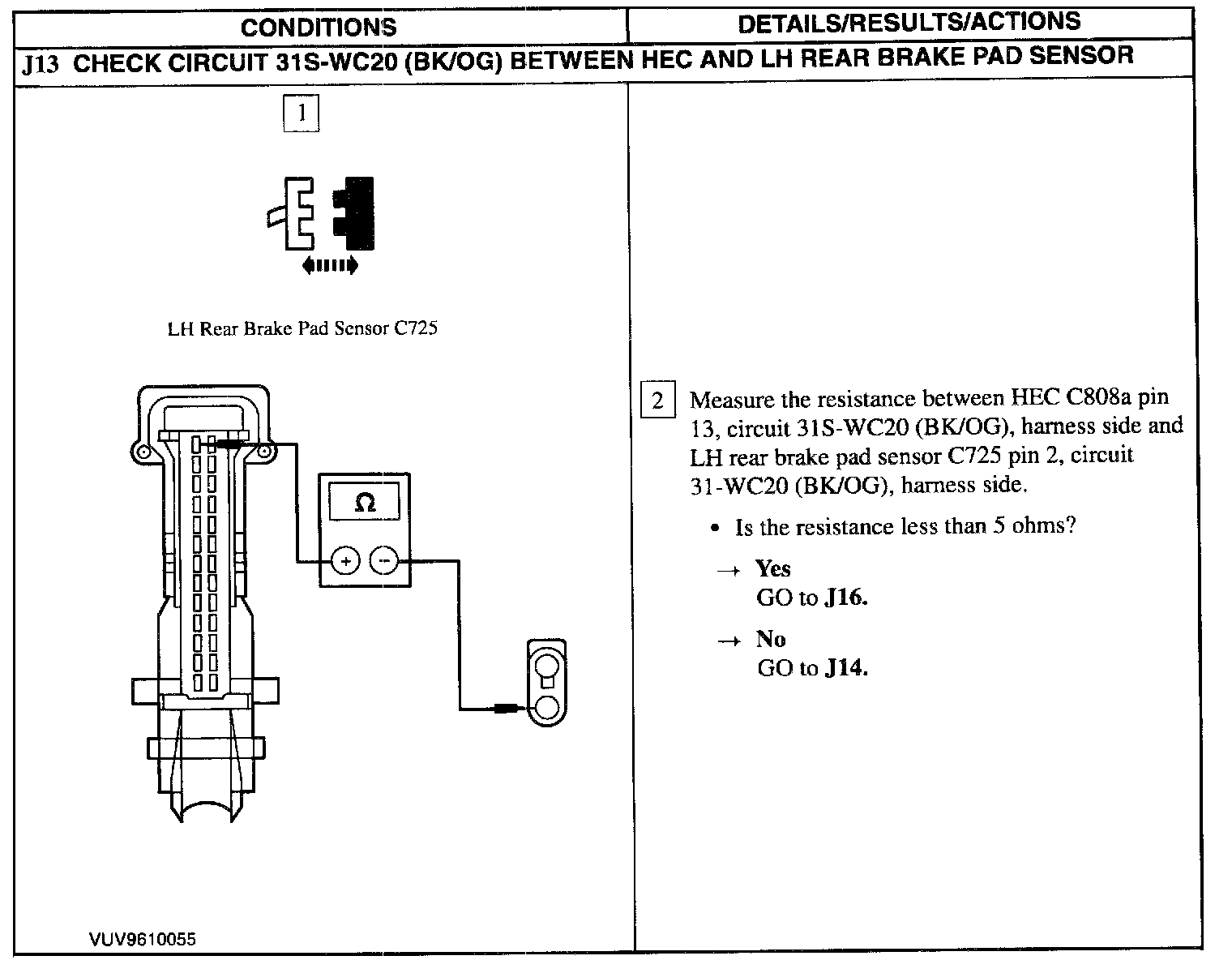

J13:

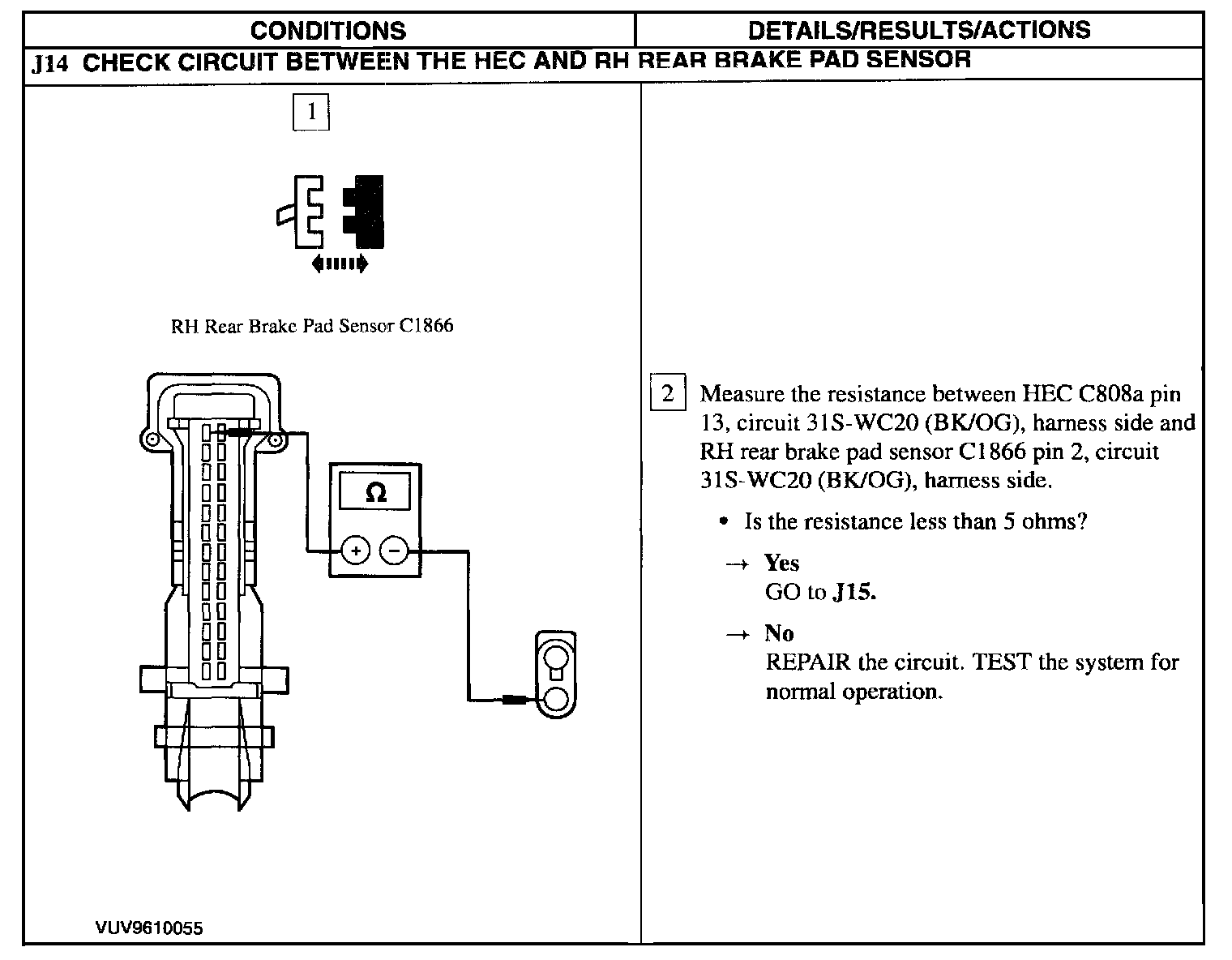

J14:

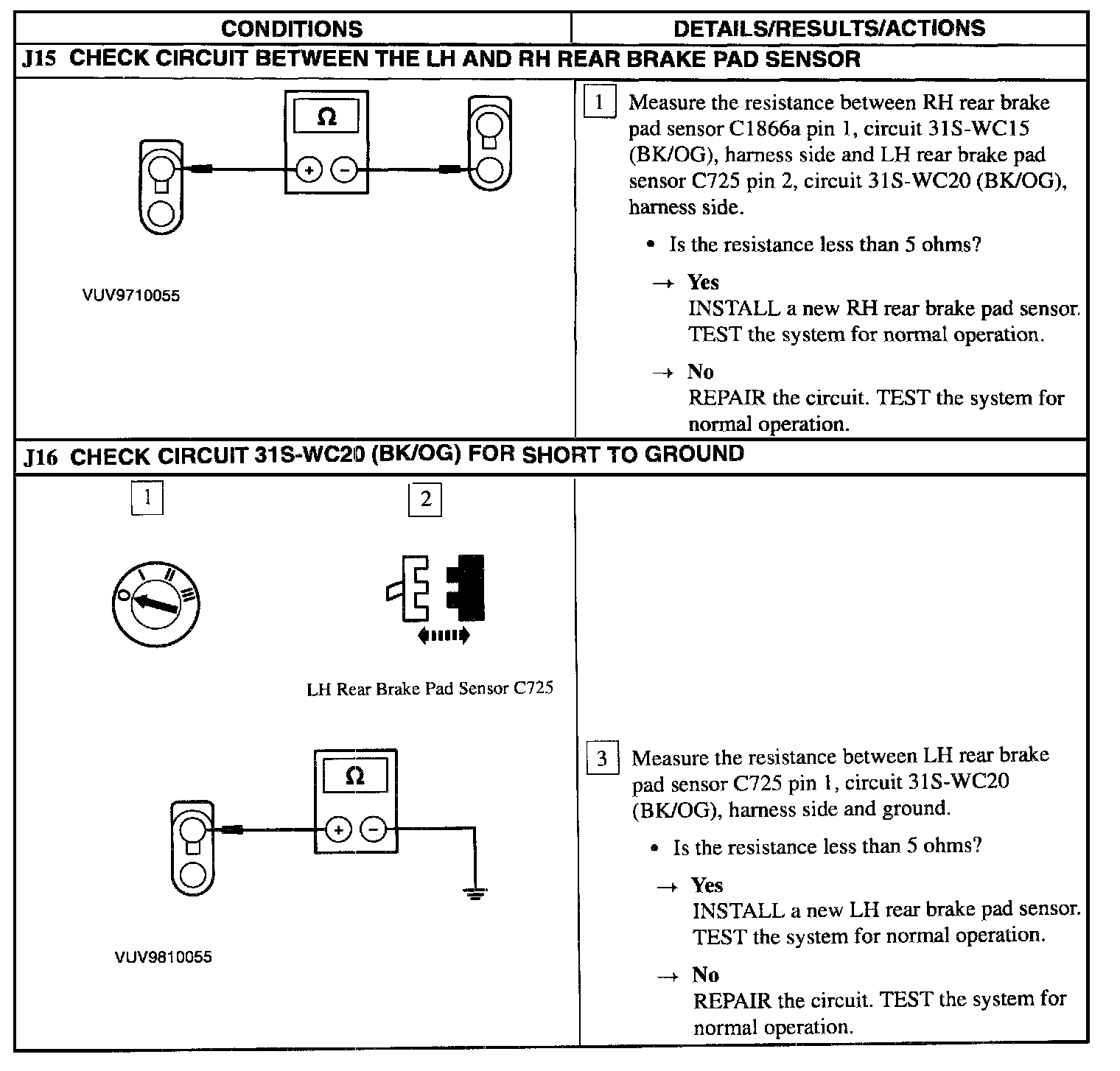

J15 - J16:
