FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1999
>>
Cougar V6-153 2.5L DOHC VIN L SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Testing and Inspection
>>
Pinpoint Tests
>>
I: An Indicator Is Inop/Always ON - Frost Warning Indicator
I: An Indicator Is Inop/Always ON - Frost Warning Indicator

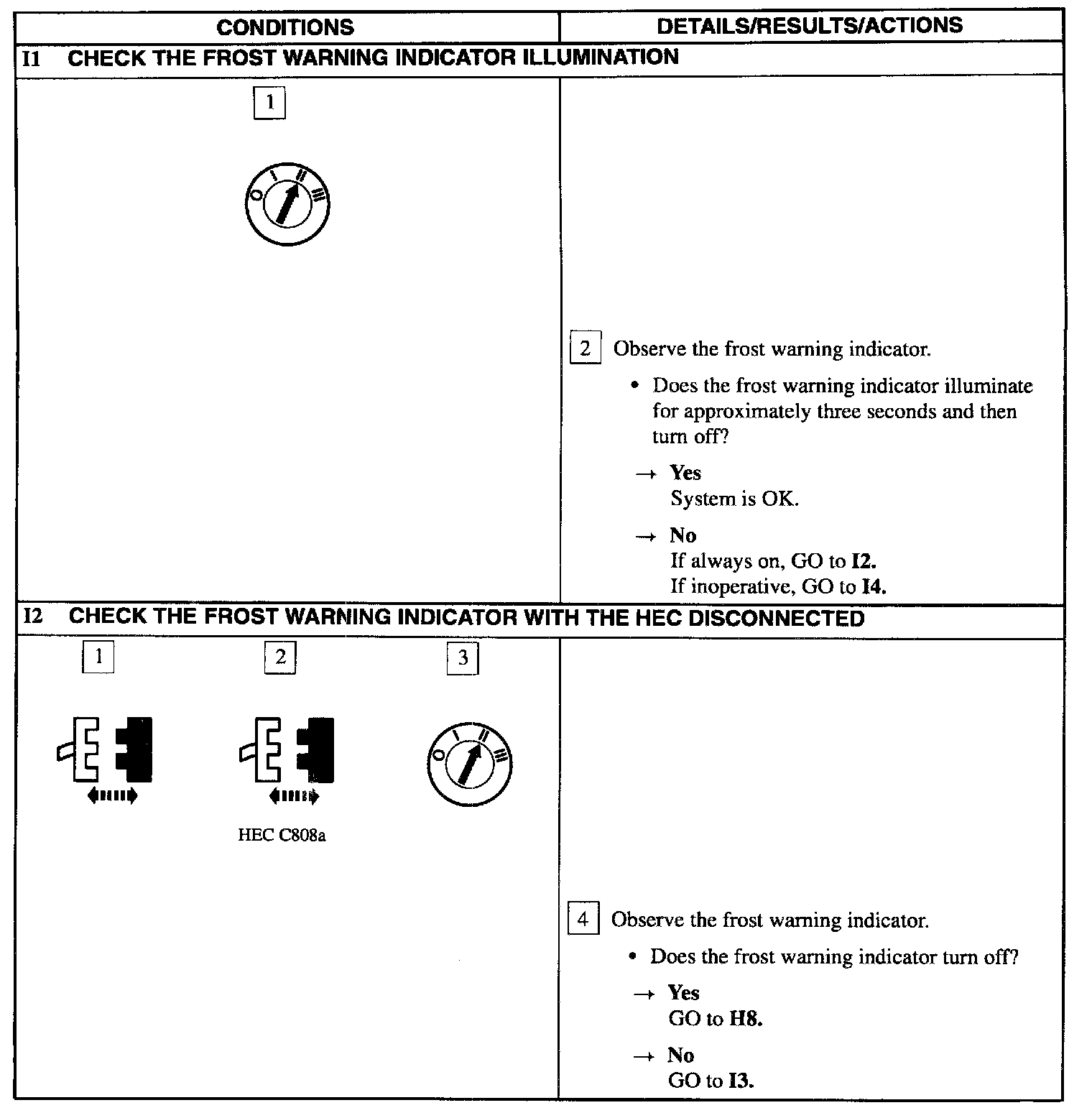

I1 - I2:

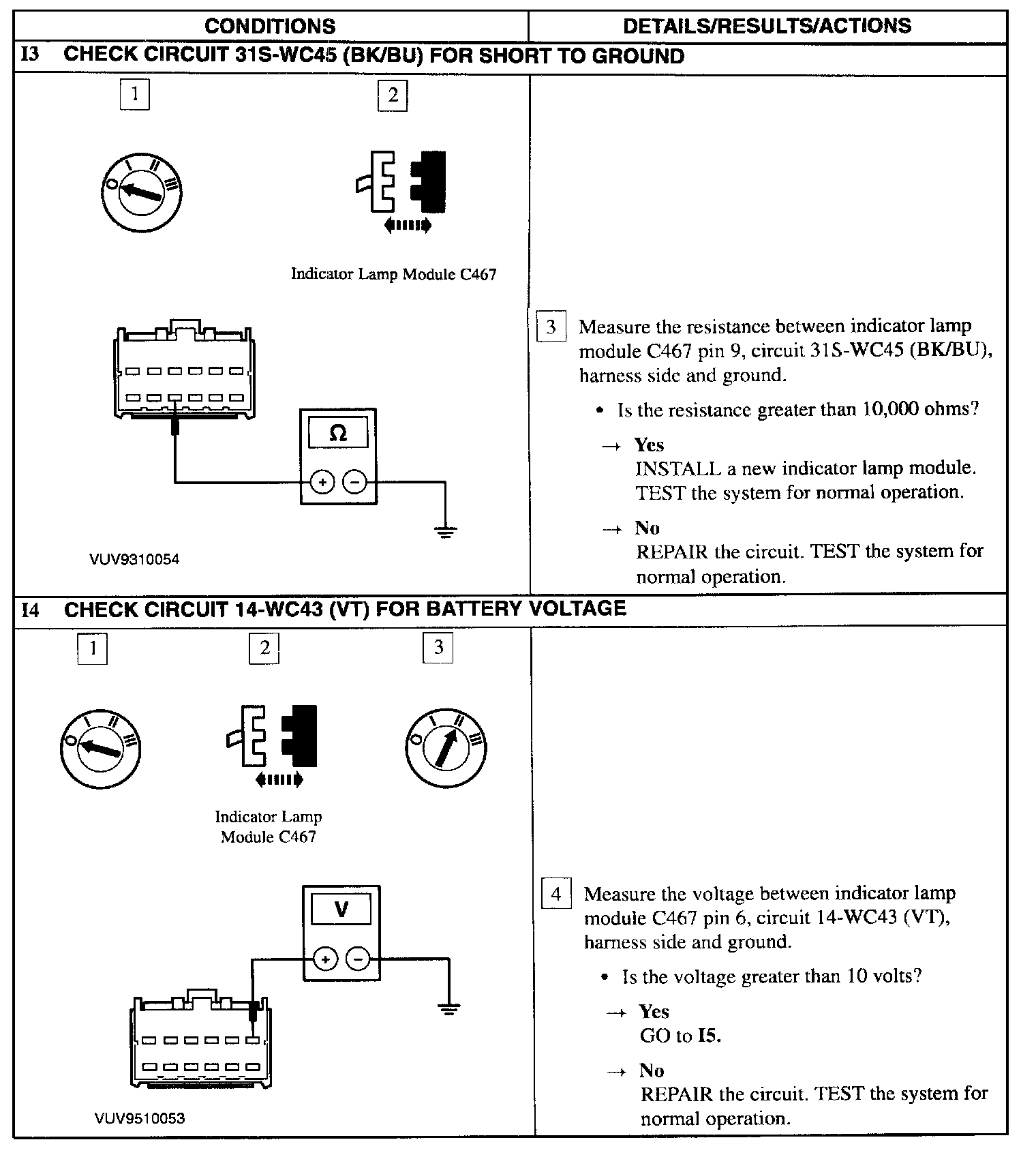

I3 - I4:

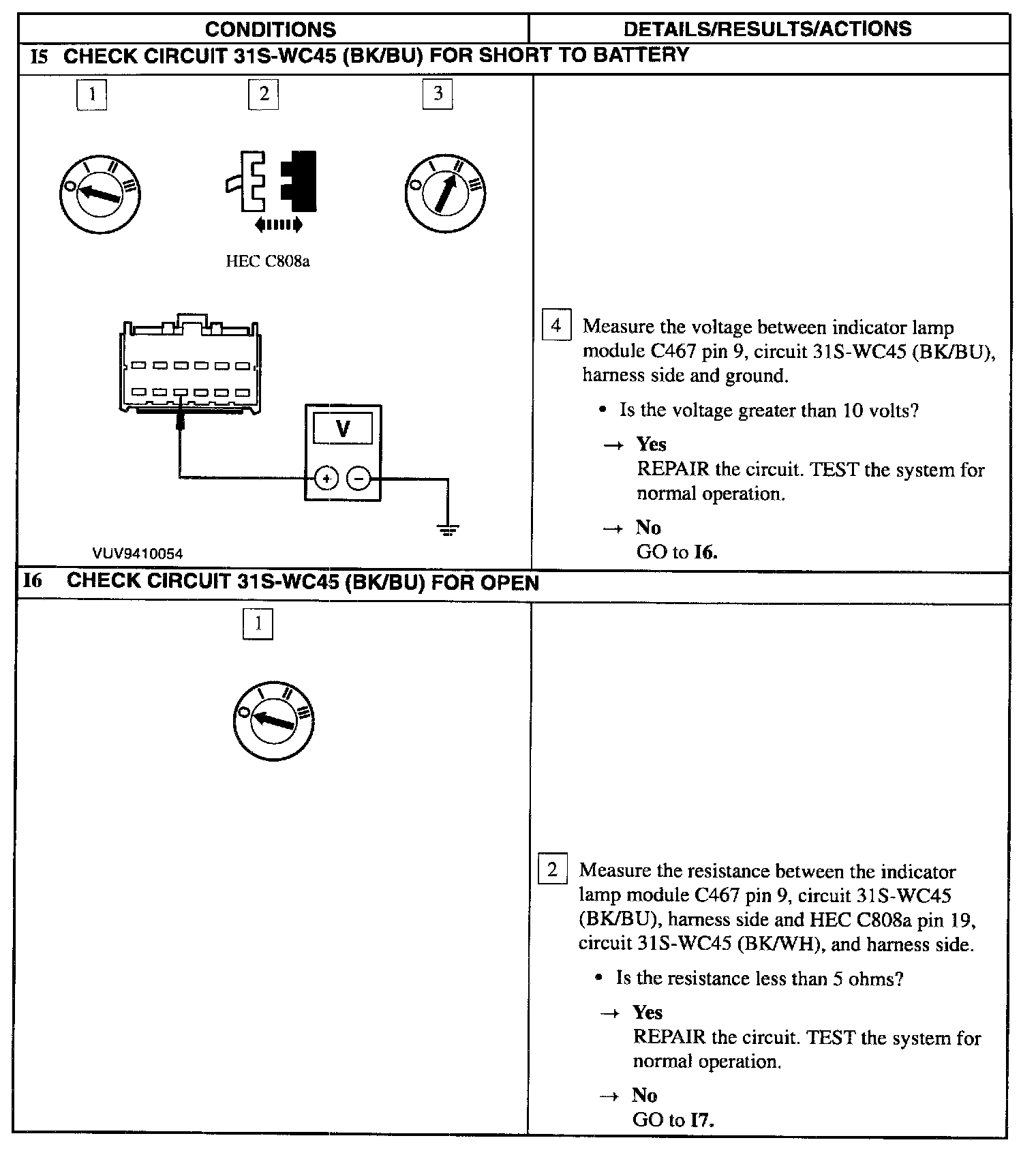

I5 - I6:
I7:
