Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> H: An Indicator Is Inop/Always ON - Ice Warning Indicator

H: An Indicator Is Inop/Always ON - Ice Warning Indicator

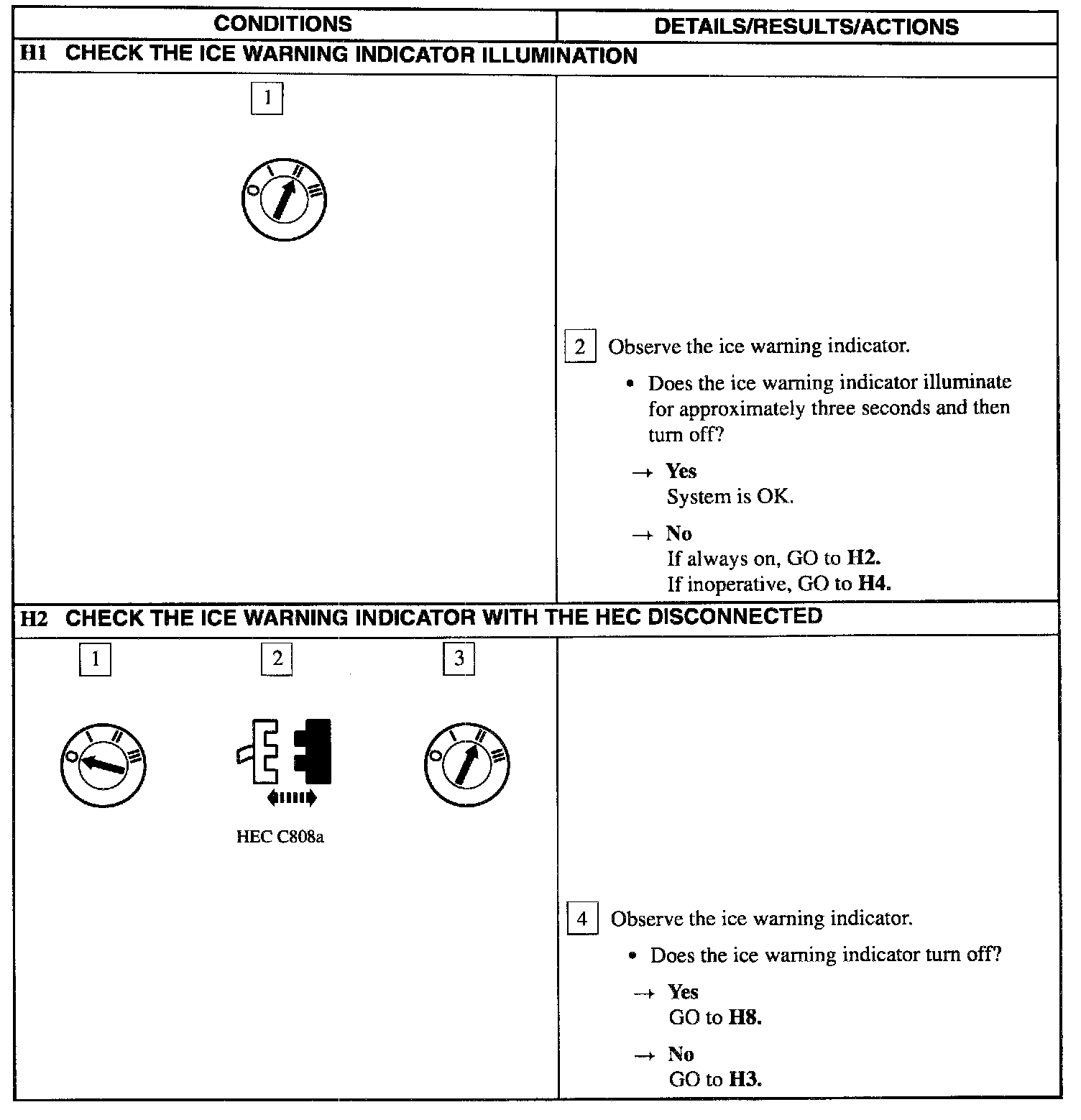

H1 - H2:

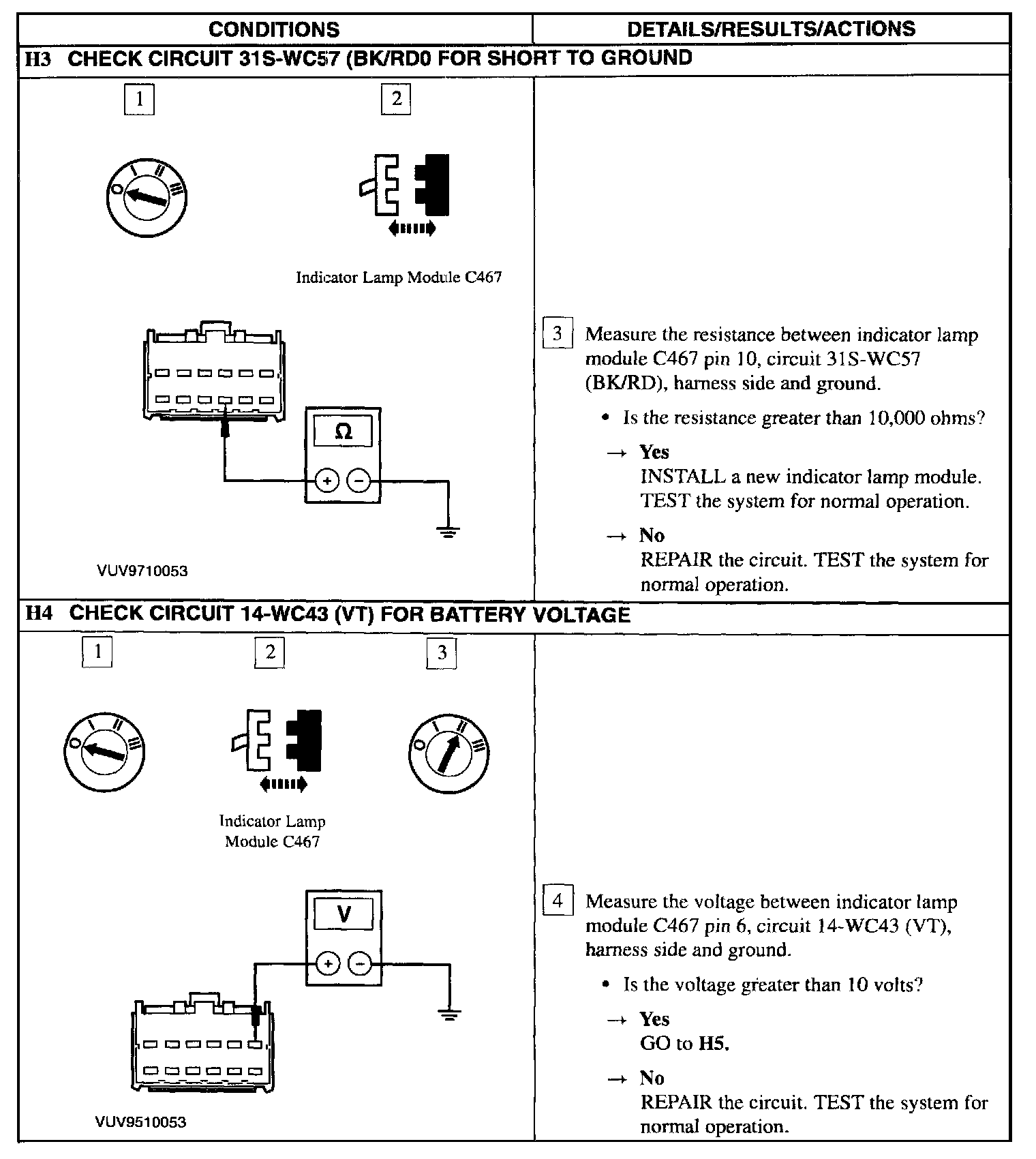

H3 - H4:

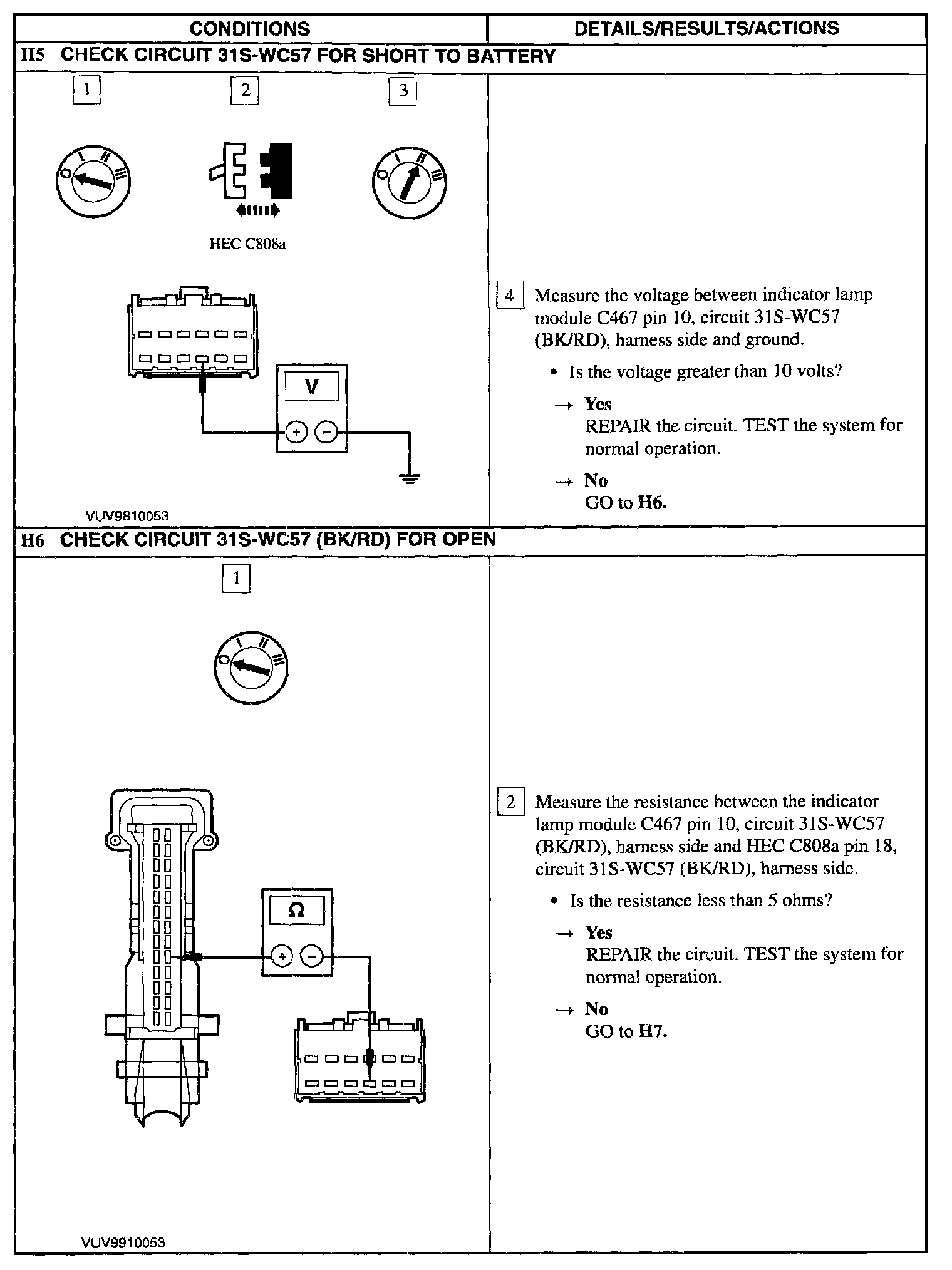

H5 - H6:






H7:

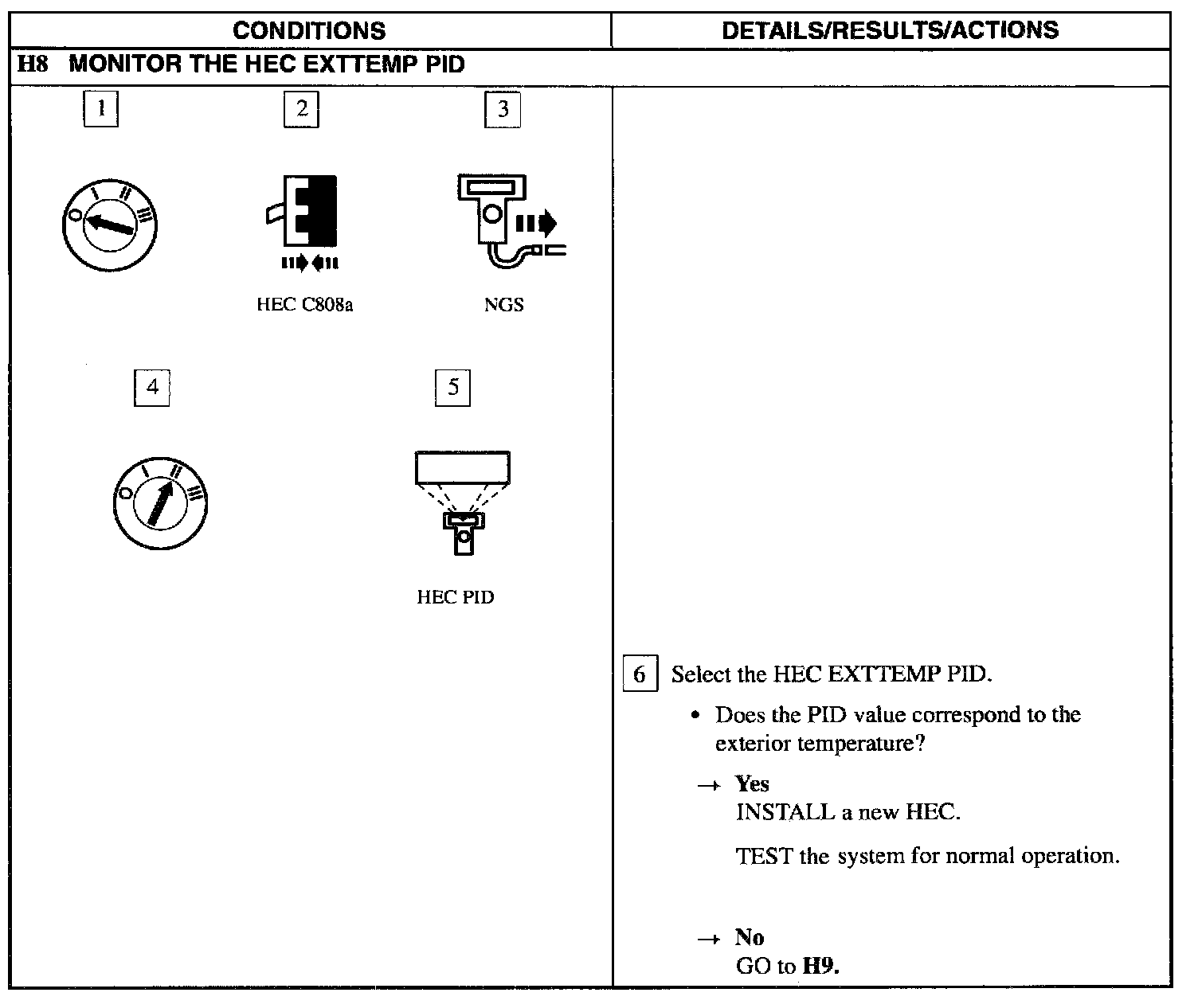

H8:

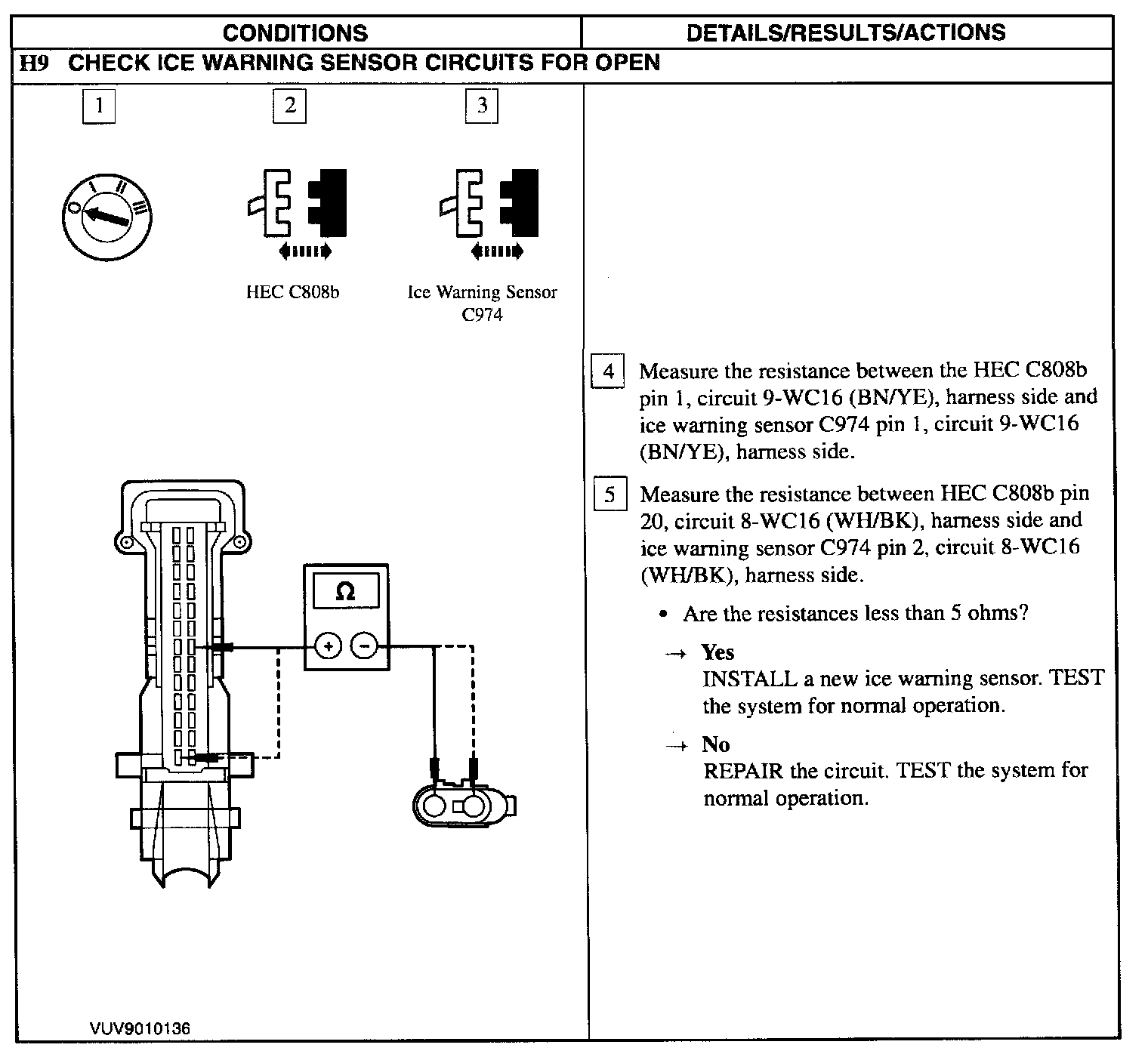

H9:
