Cougar V6-153 2.5L DOHC VIN L SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Testing and Inspection
>>
Pinpoint Tests
>>
G: An Indicator Is Inop/Always ON Maint Interval Warning Indicator
G: An Indicator Is Inop/Always ON Maint Interval Warning Indicator

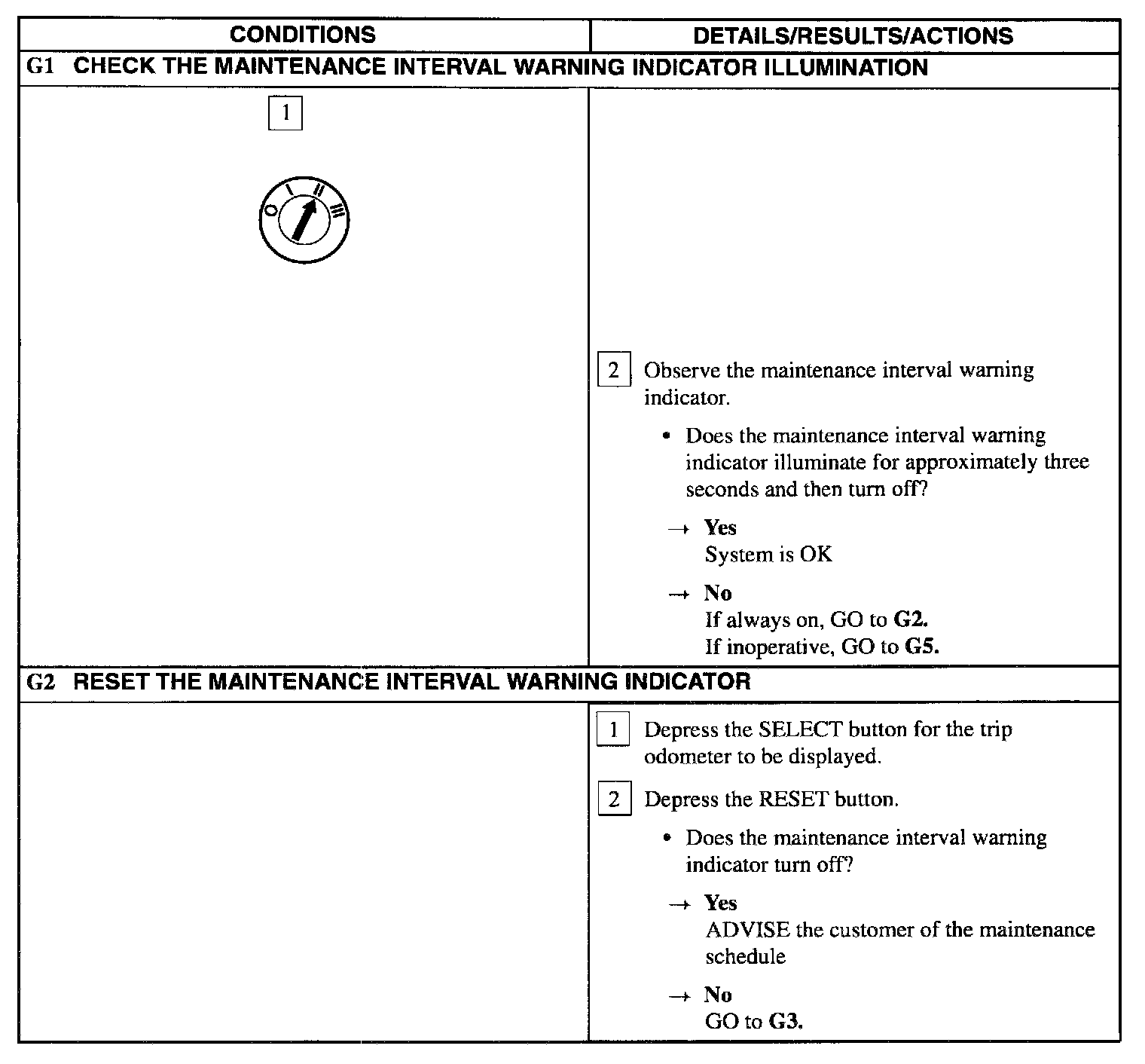

G1 - G2:

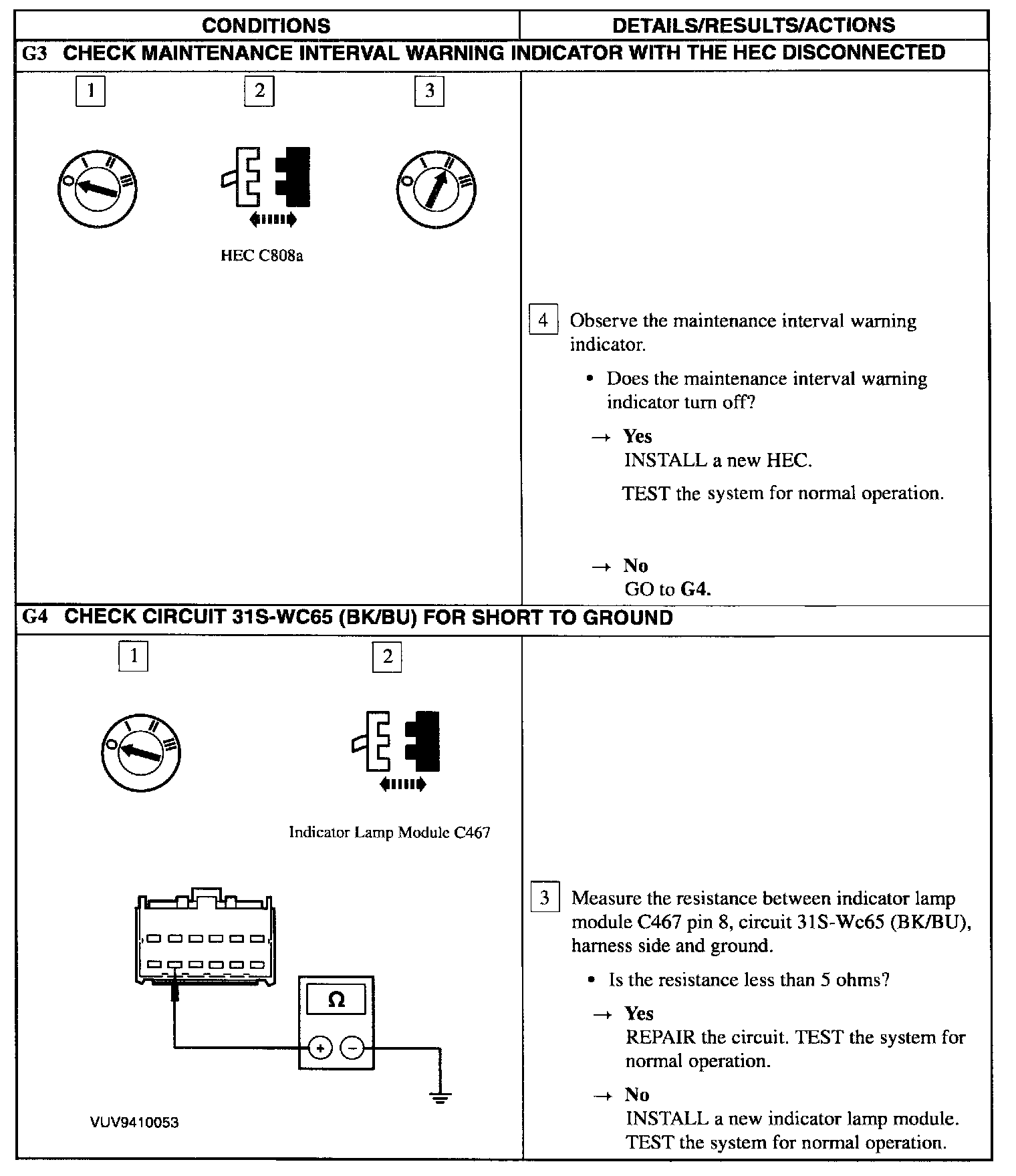

G3 - G4:

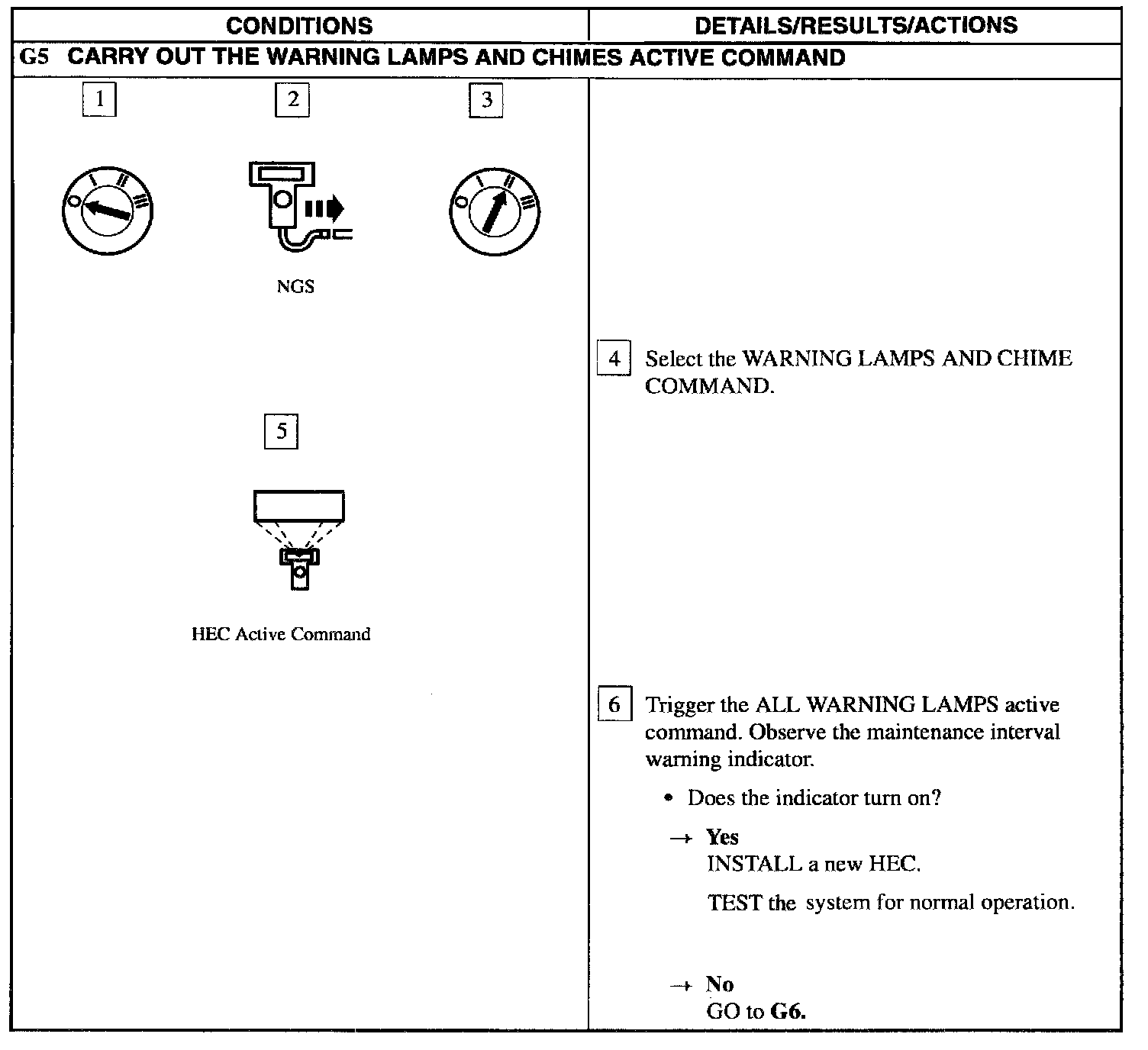

G5:

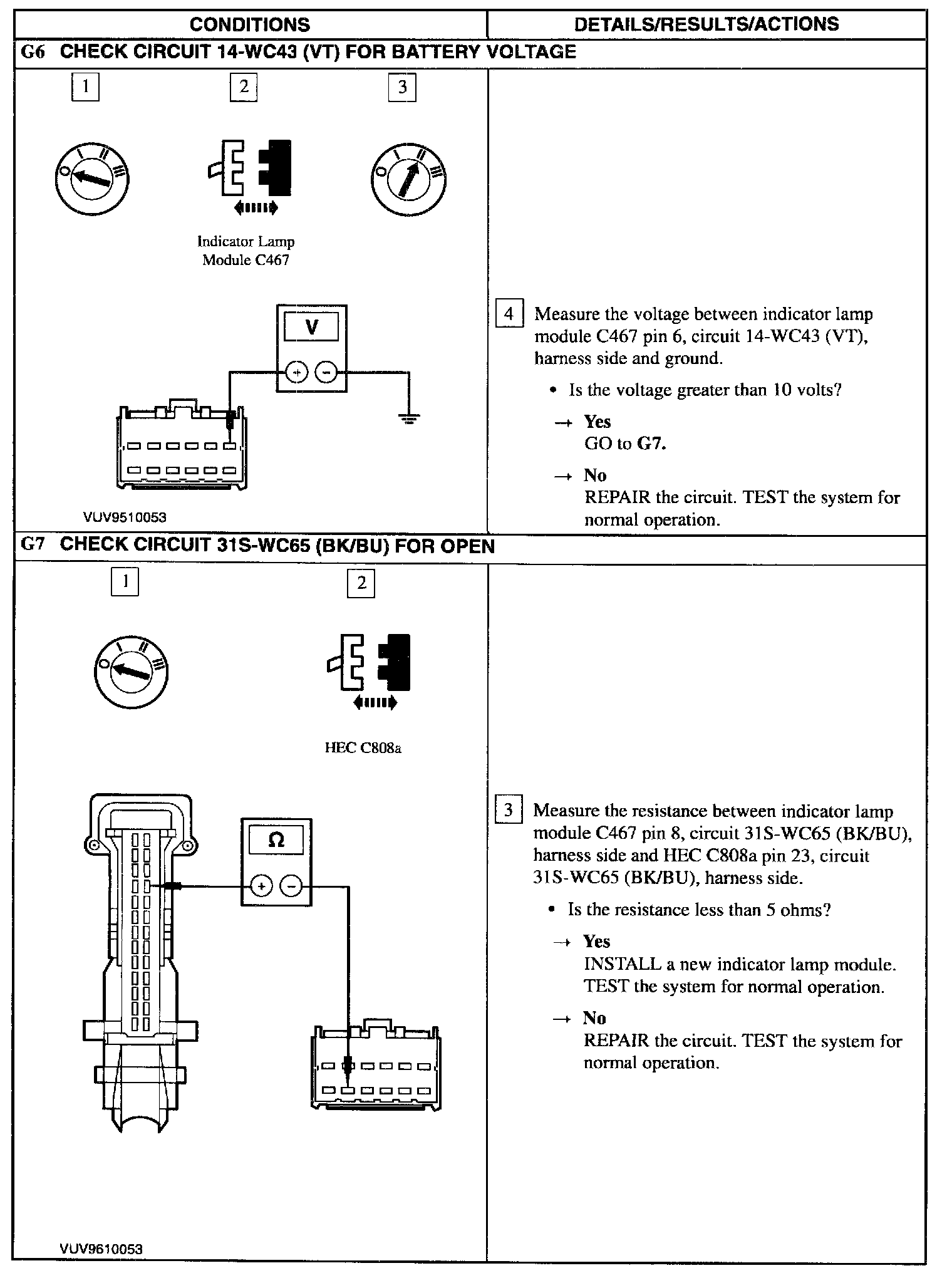

G6 - G7:
