Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Driver/Vehicle Information Display >> Testing and Inspection >> Pinpoint Tests >> B: The Message Center Switch Is Not Operating Correctly

B: The Message Center Switch Is Not Operating Correctly

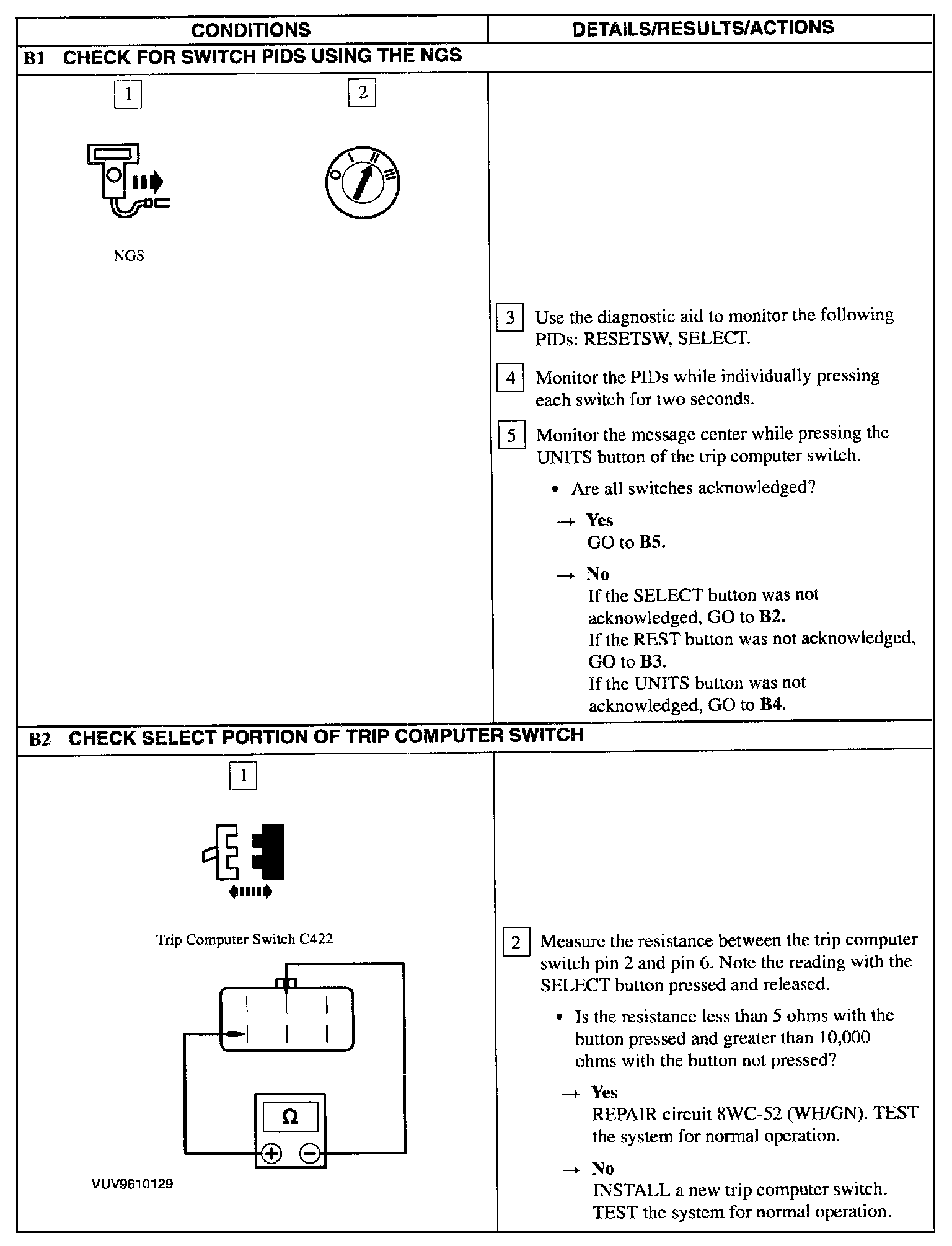

B1 - B2:

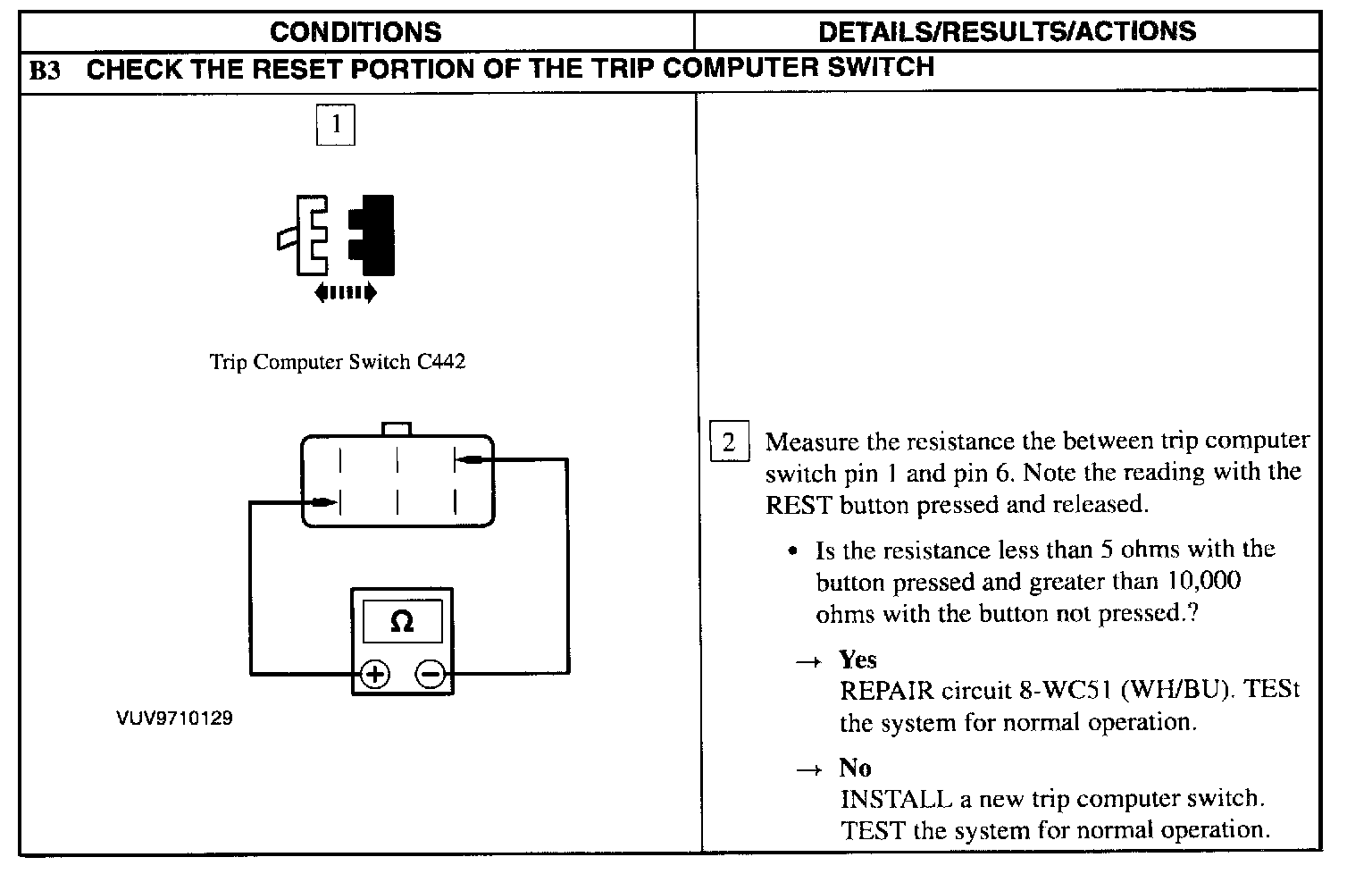

B3:

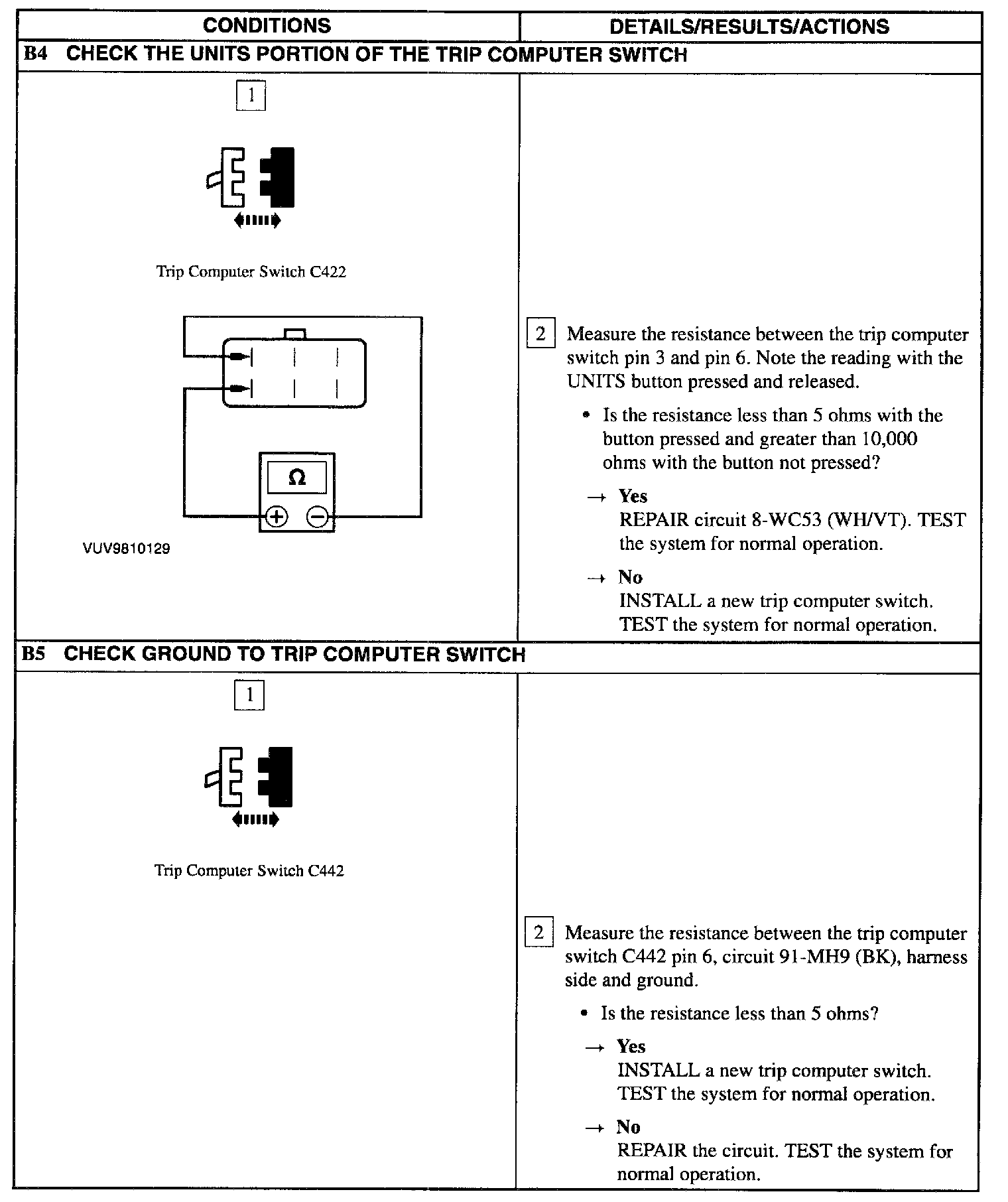

B4 - B5:
