Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> D: Improper/Erratic Direction of Air Flow From Outlet

D: Improper/Erratic Direction of Air Flow From Outlet

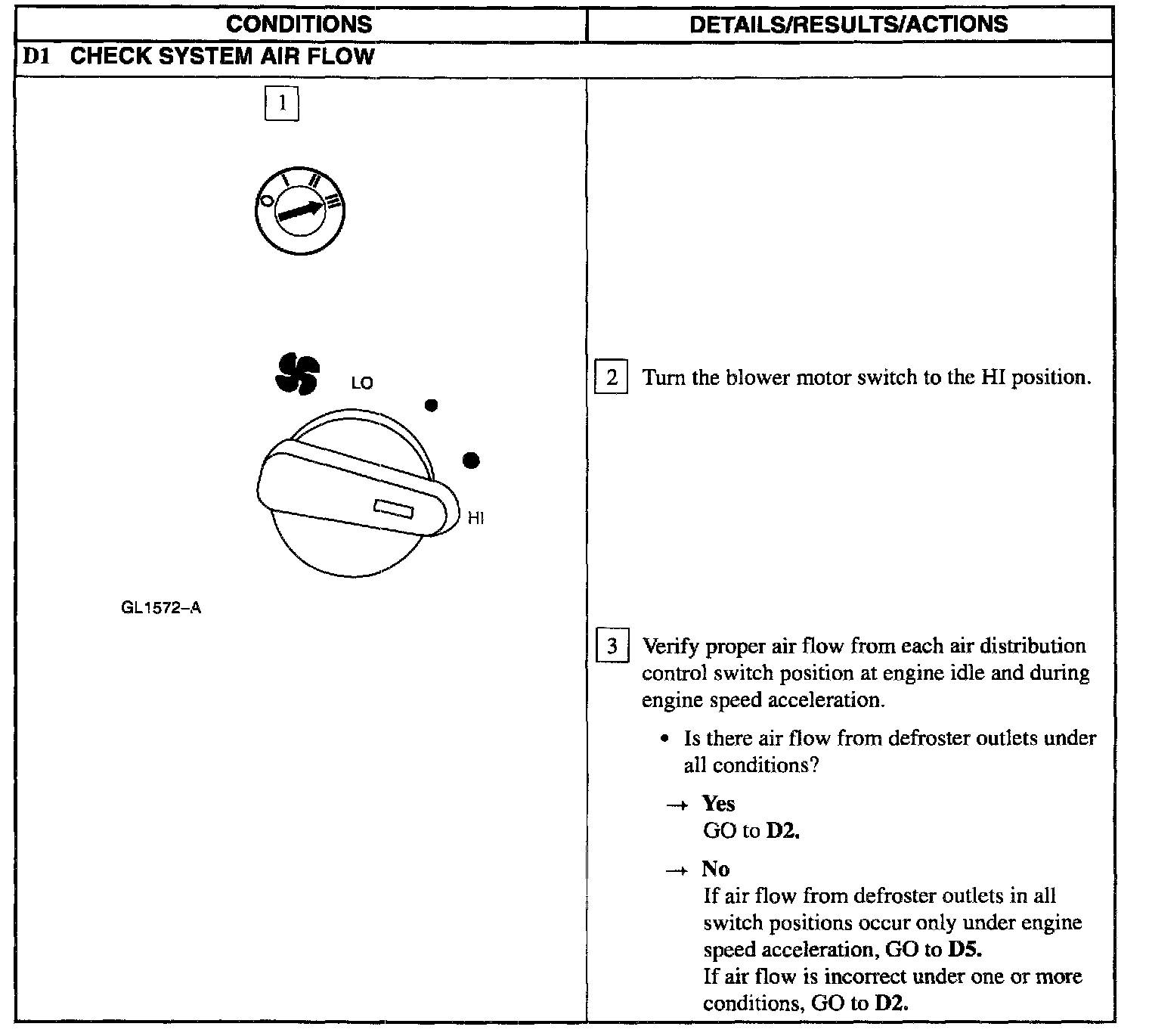

D1:

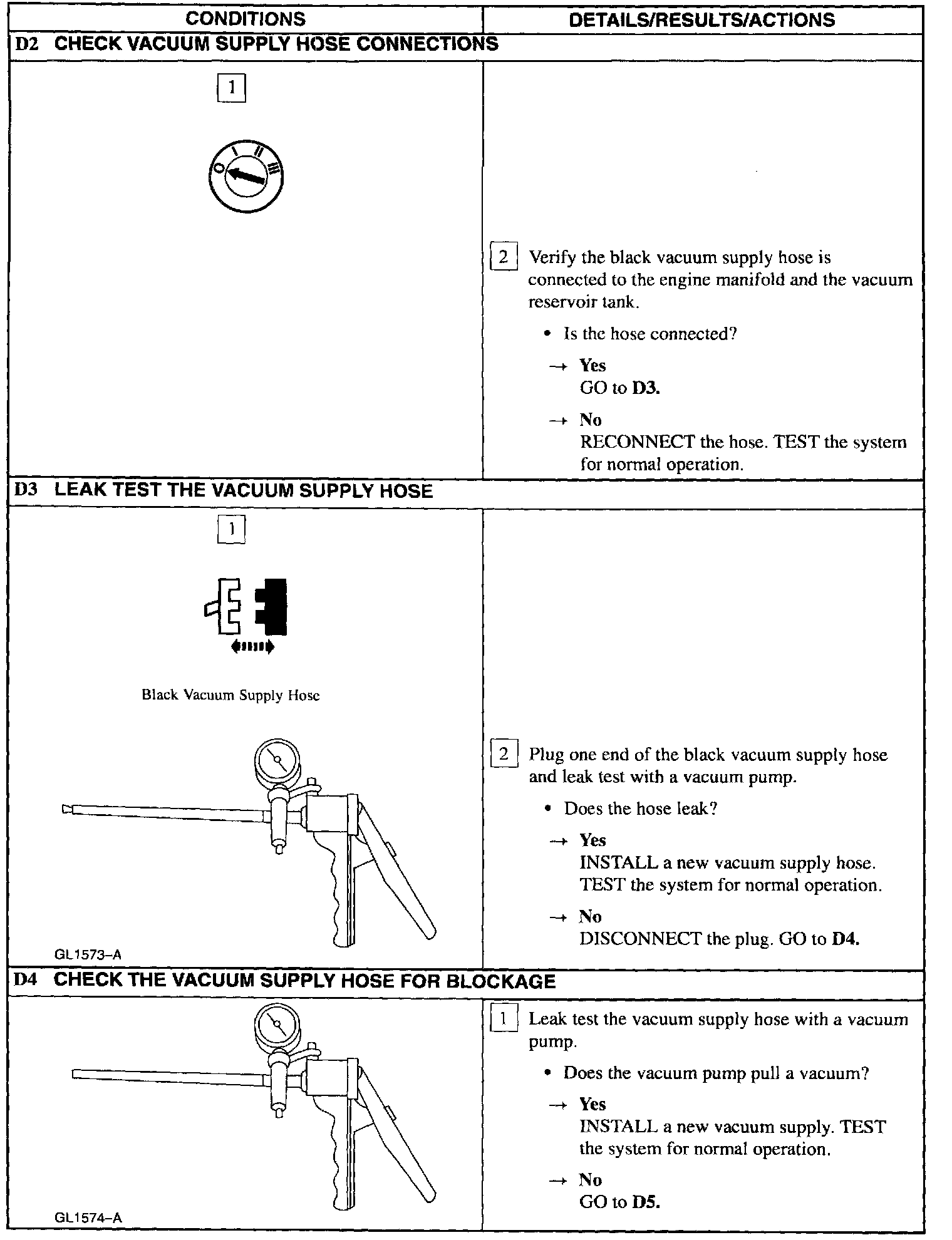

D2 - D4:

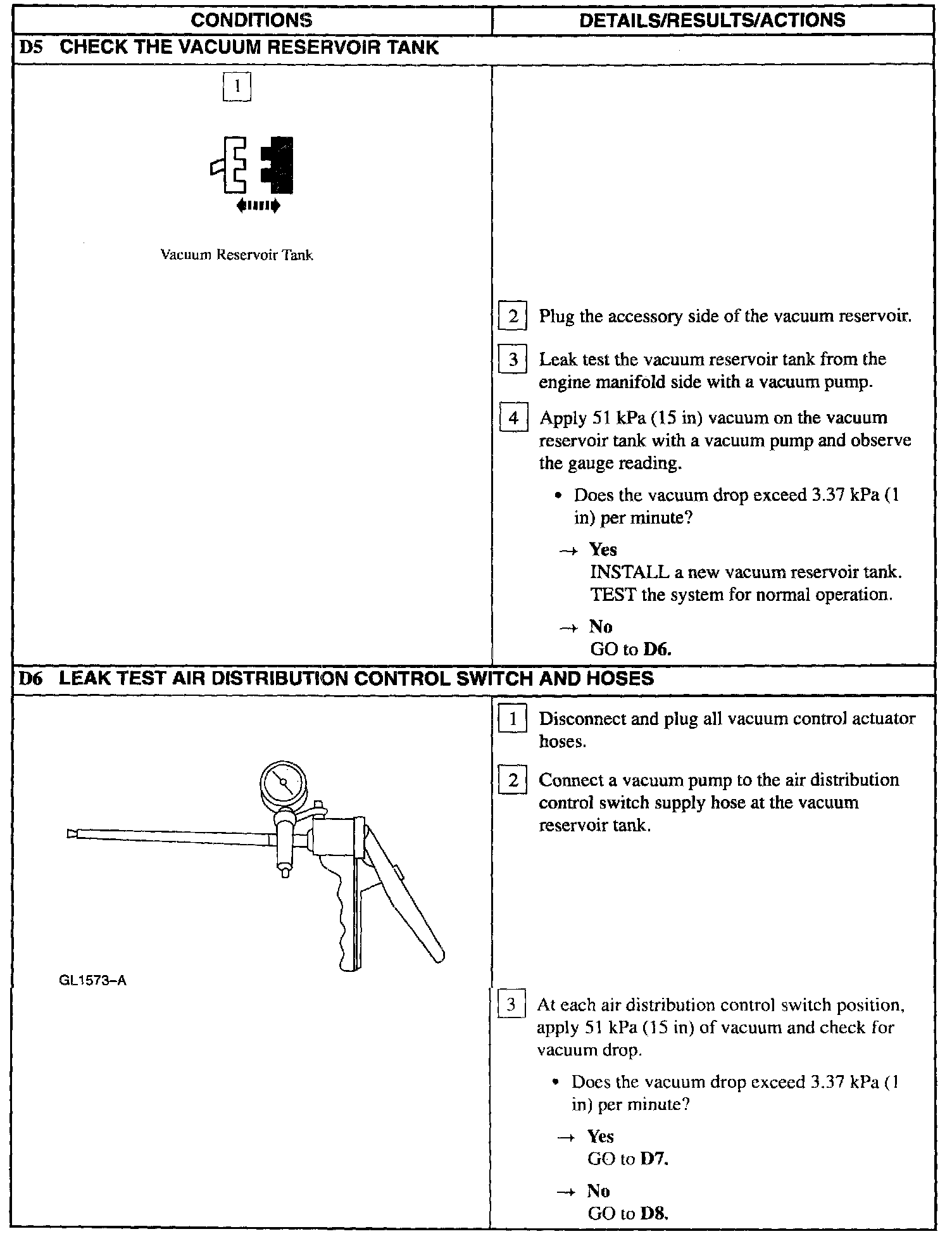

D5 - D6:

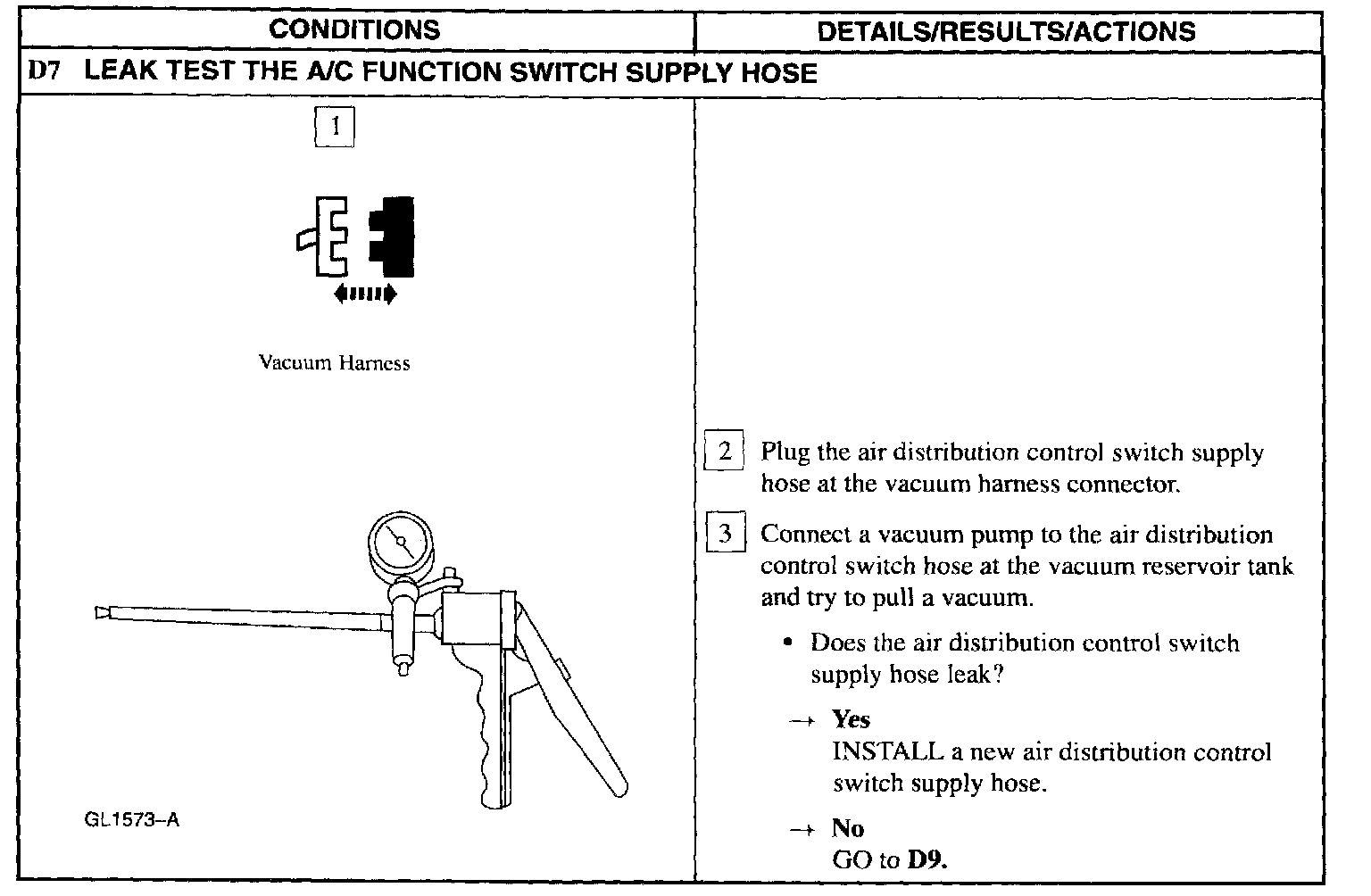

D7:

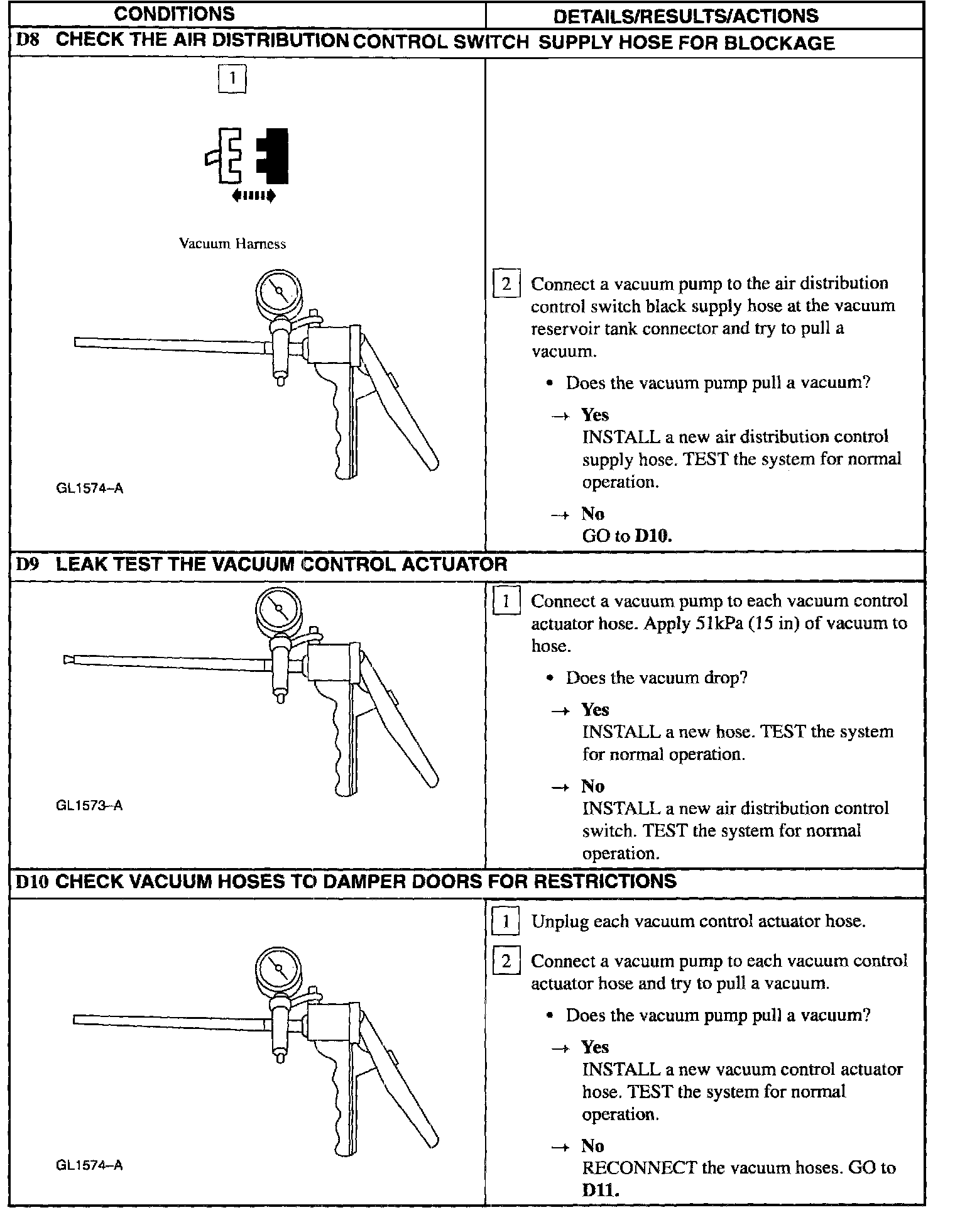

D8 - D10:

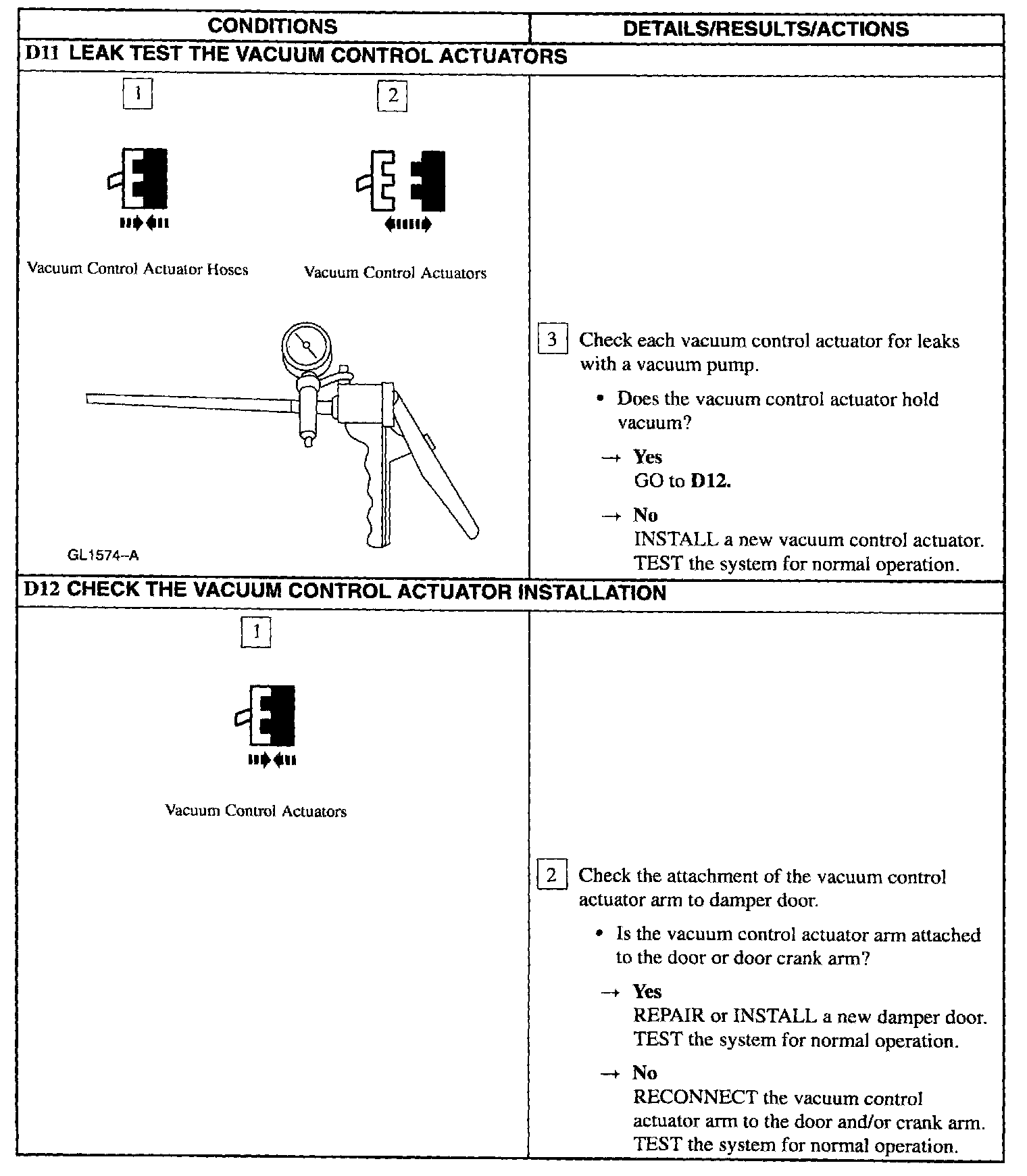

D11 - D12:
