A/C Pressure Cut-Off Switch

REMOVAL
1. Disconnect the battery ground cable.

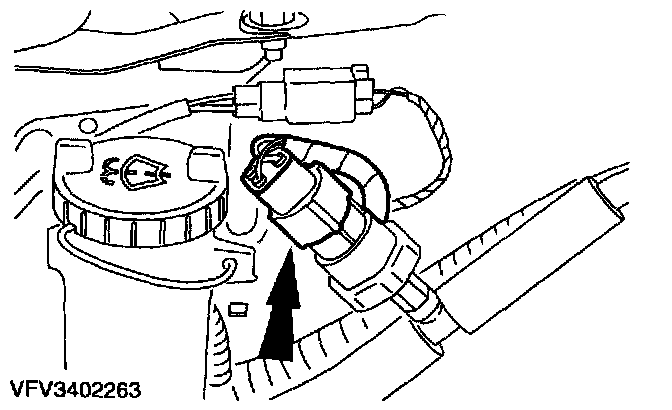

2. Disconnect the electrical connector and remove the pressure cut-off switch.

INSTALLATION

NOTE:
^ Install new O-ring seals and coat them with refrigerant oil.
^ When the battery has been disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.







1. To install, reverse the removal procedure.
