A/C Cycling Switch

REMOVAL
1. Disconnect the battery ground cable.

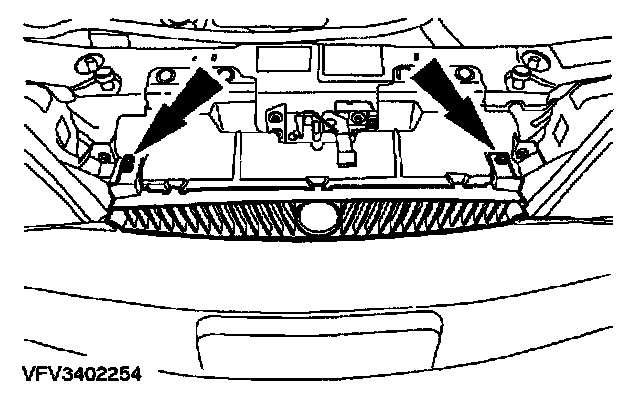

2. Remove the radiator grille.

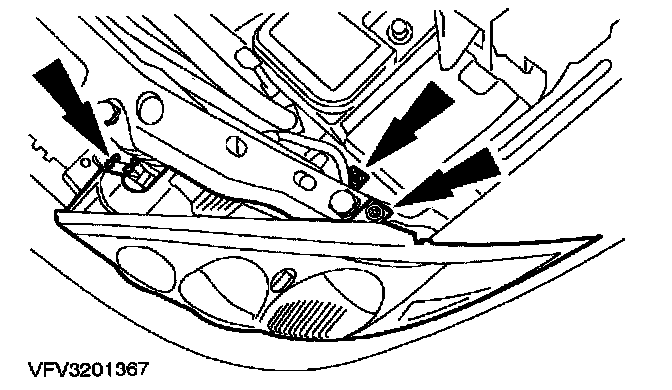

3. Remove the left-hand headlamp assembly.

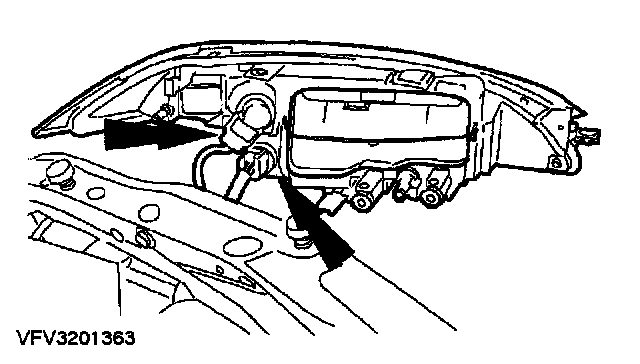

4. Disconnect electrical connectors.

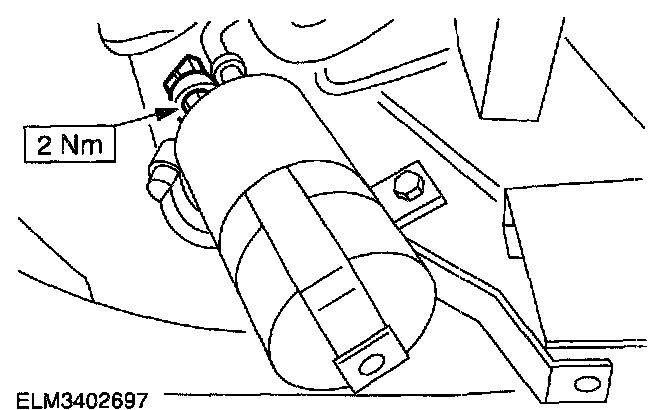

5. Remove the A/C cycling switch.

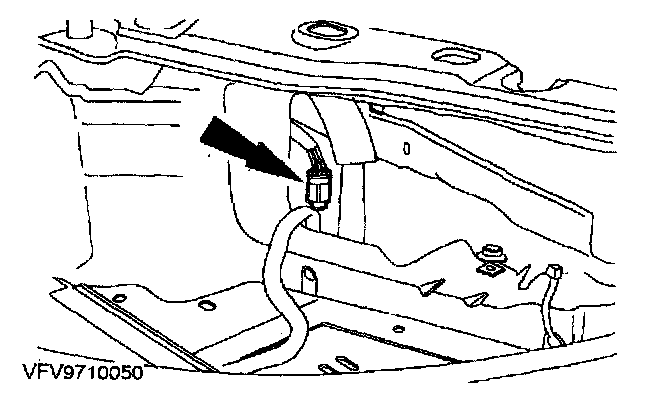

^ Disconnect the electrical connector.

NOTE: Let the engine run and switch A/C on during switch removal. Cross connect the electrical connection, so that the compressor runs without the switch connection.

INSTALLATION

NOTE:
^ Install new O-ring seals and coat them with refrigerant oil.
^ When the battery has been disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.







1. To install, reverse the removal procedure.
