Thermostat Housing: Service and Repair

Removal
1. Disconnect the battery ground cable.
2. Drain the cooling system.

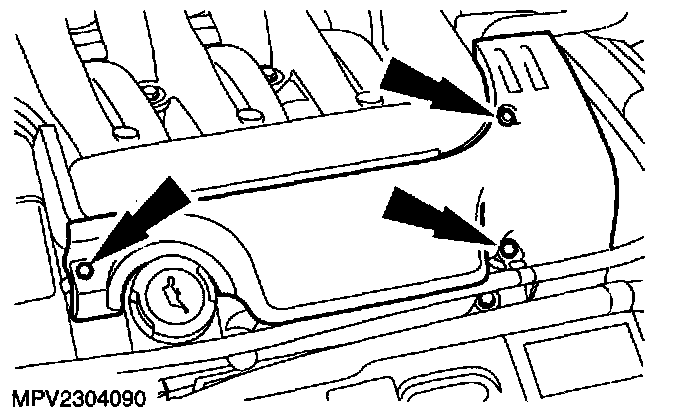

3. Remove the engine cover.
4. Remove the air cleaner housing.

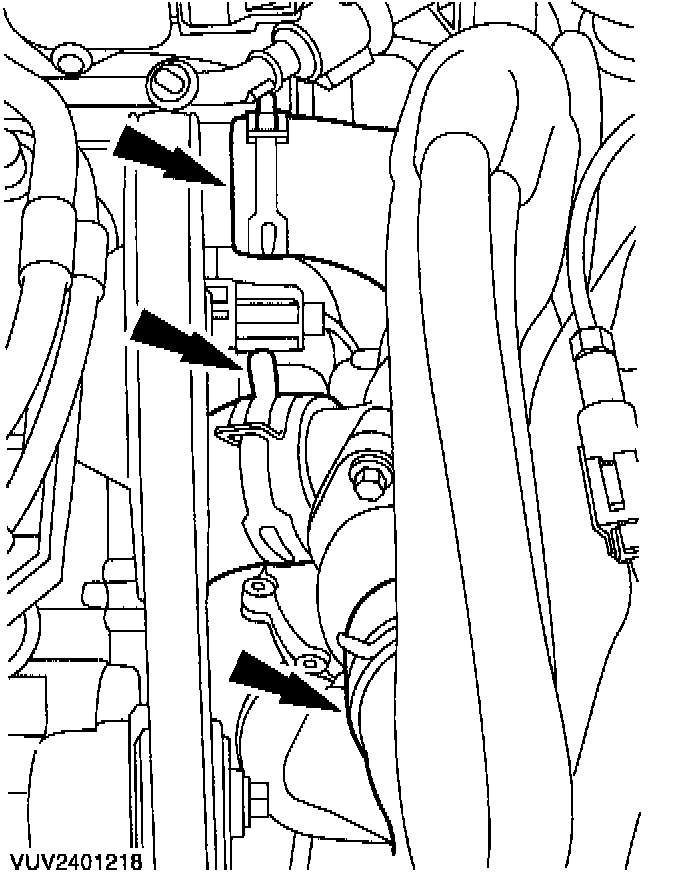

5. Remove the coolant hose retaining clip.





6. Disconnect the coolant hoses.





7. Remove the thermostat housing.

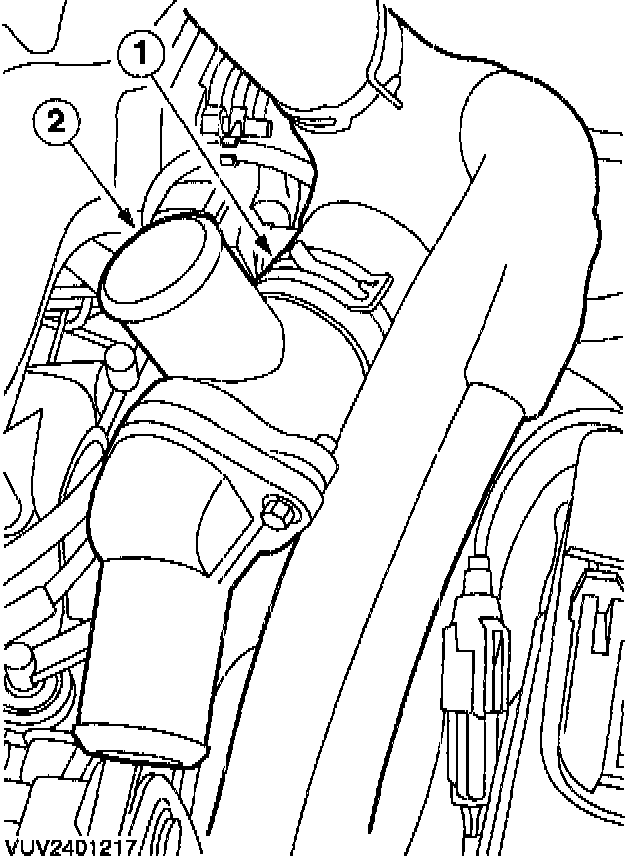

1 Disconnect the coolant hose.
2 Remove the thermostat housing.

Installation
1. To install, reverse the removal procedure.
2. Fill the cooling system.
