Radiator Cooling Fan Motor: Service and Repair

Removal
1. Disconnect the battery ground cable.
2. Remove the radiator.
3. Raise and support the vehicle.

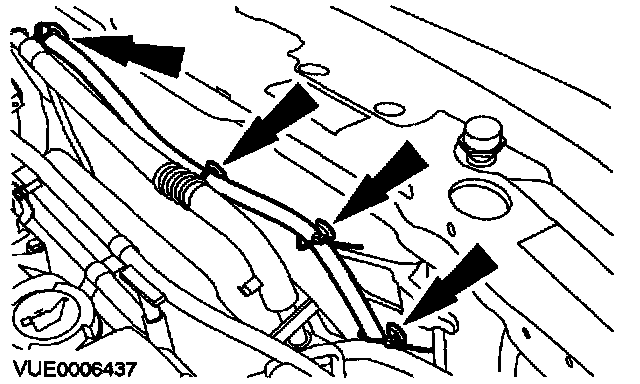

4. Detach the wiring harness.

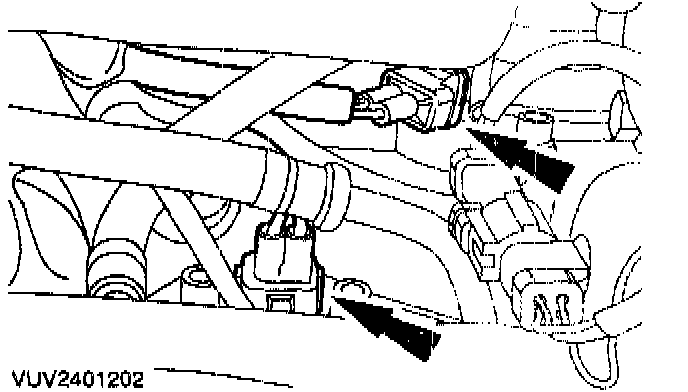

5. Disconnect the cooling fan electrical connector and detach the wiring harness.

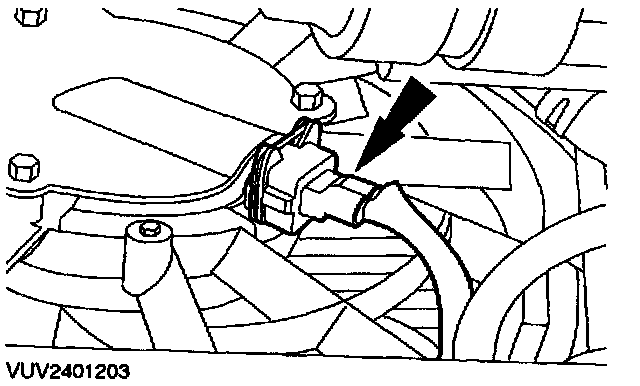

6. Disconnect the electrical connectors and detach the wiring harness.

Installation
1. To install, reverse the removal procedure.
