Cougar V6-153 2.5L DOHC VIN L SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
Output Shaft (Right-Hand Side Shown)
Output Shaft (Right-Hand Side Shown)
2 Of 2:

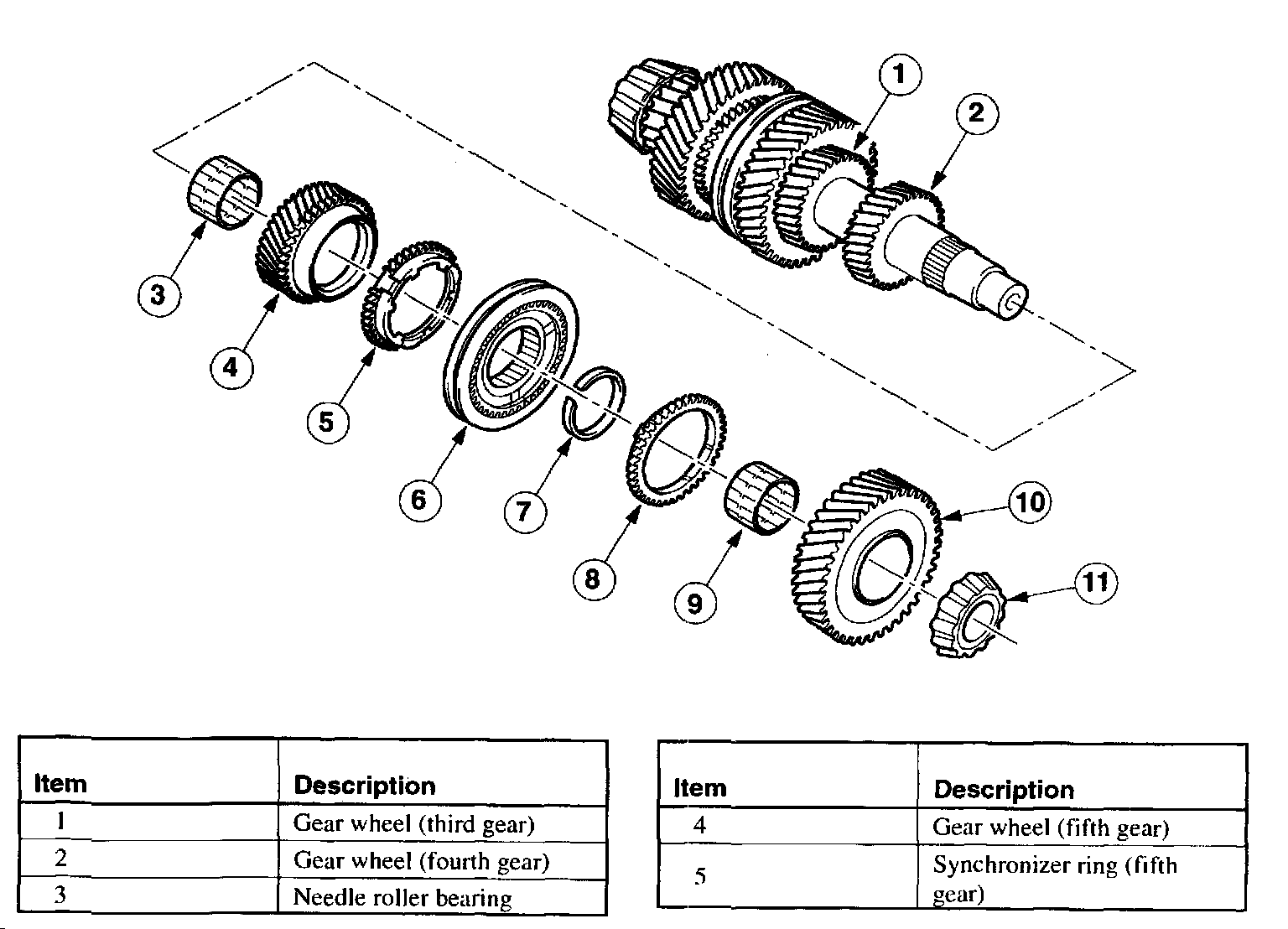

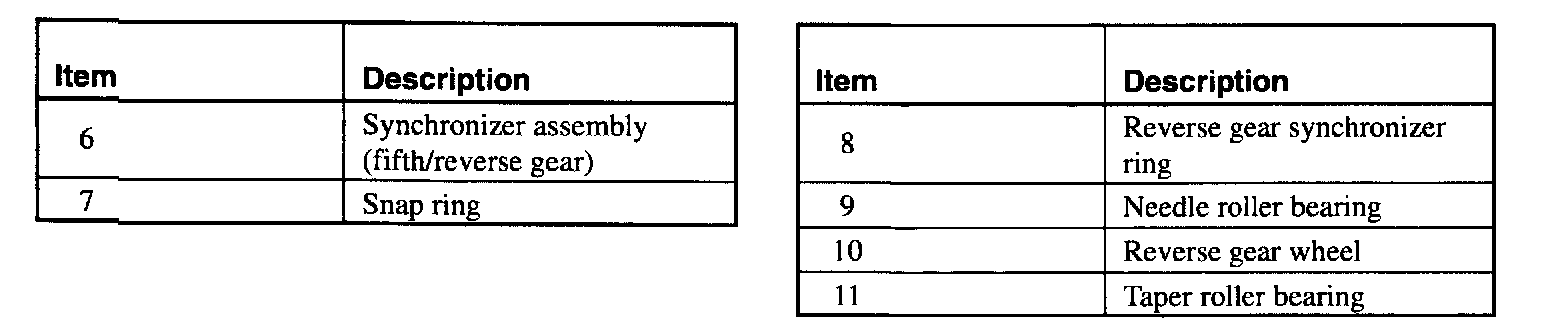

Output shaft (right-hand side shown)
