Parking Pawl, Manual Control, Transmission Range Sensor
Parking Pawl, Manual Control, Transmission Range Sensor

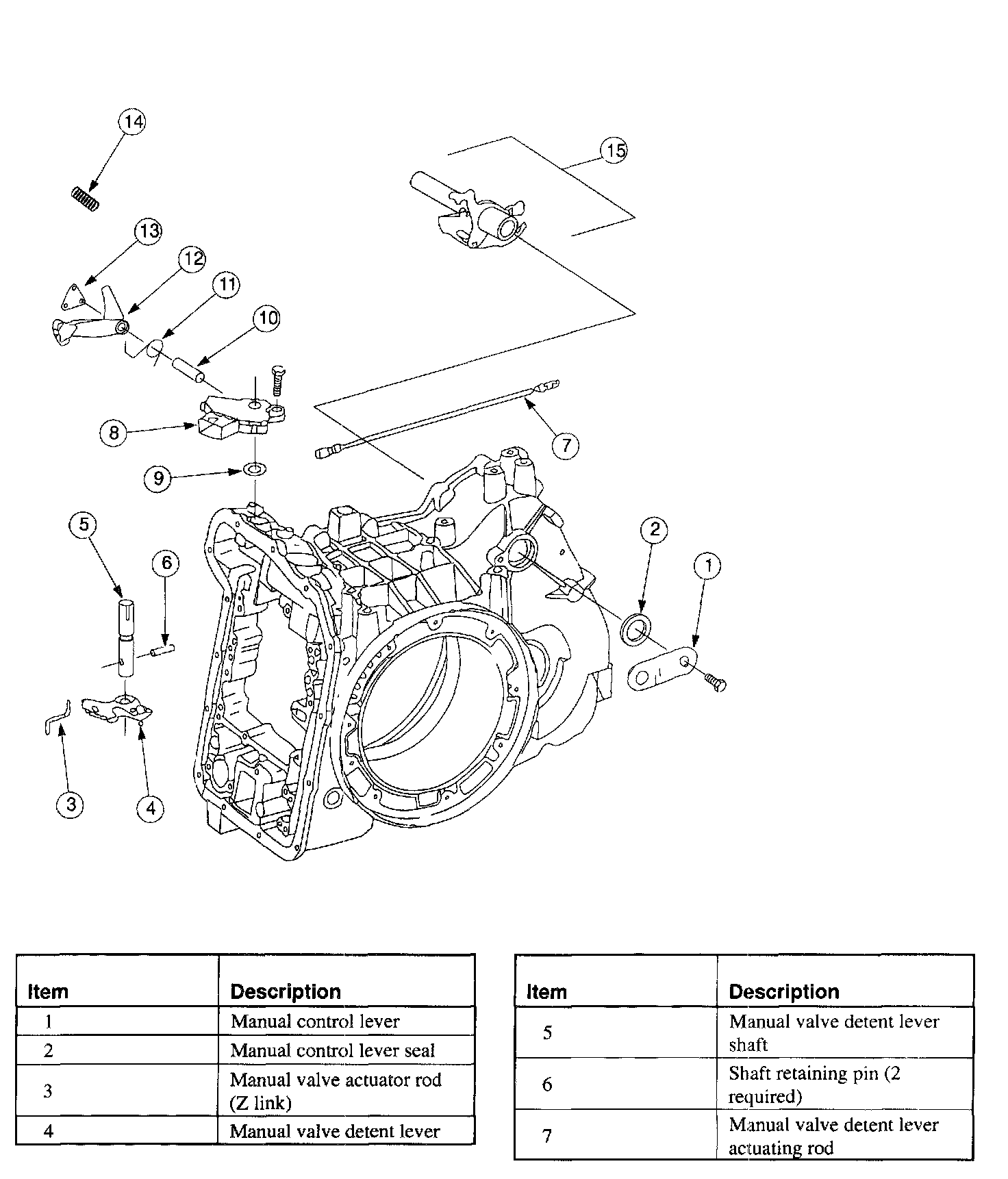

1 Of 2:

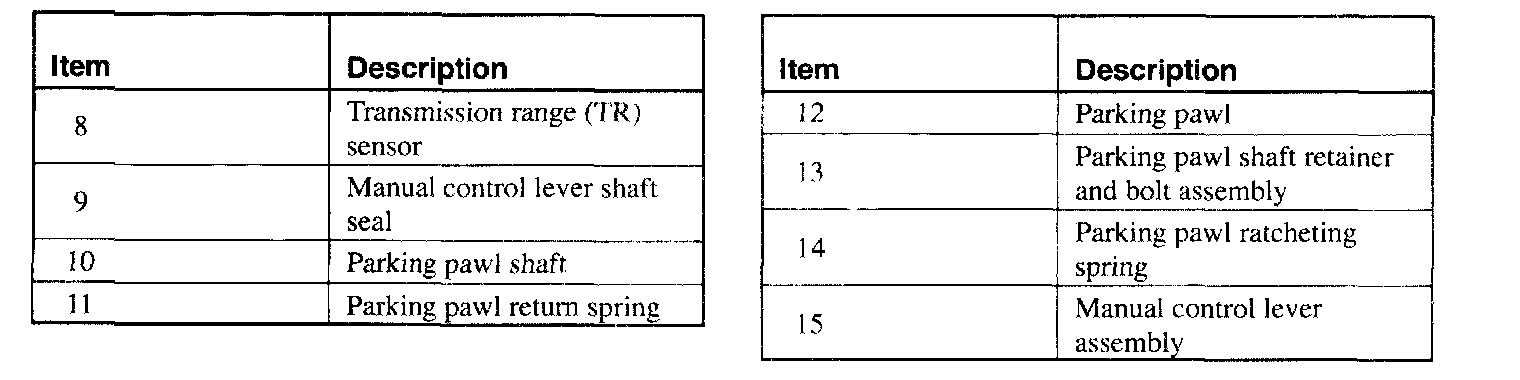

2 Of 2:
Parking pawl, manual control,
transmission range sensor
