Housing, Clutches, Torque Converter

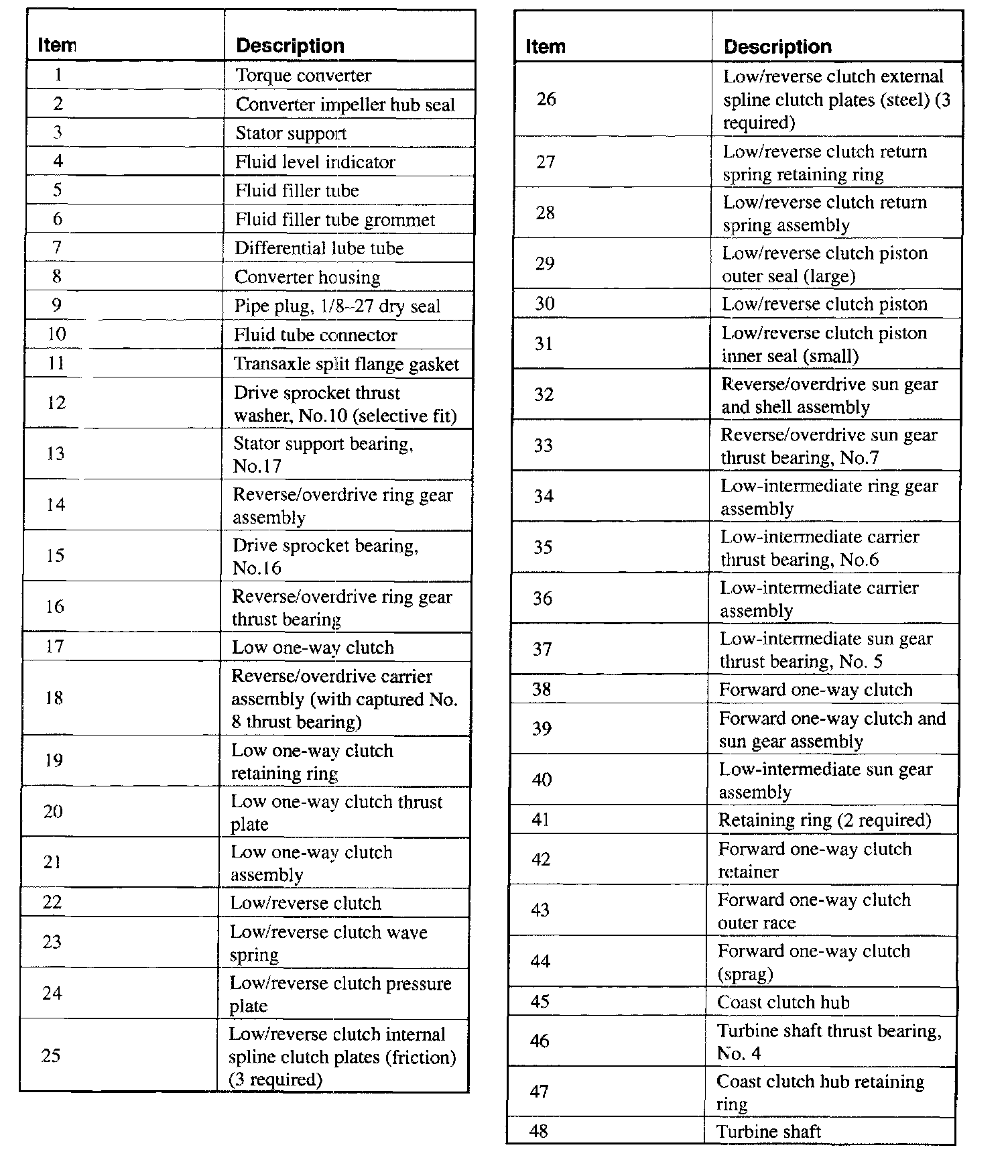

1 Of 3:

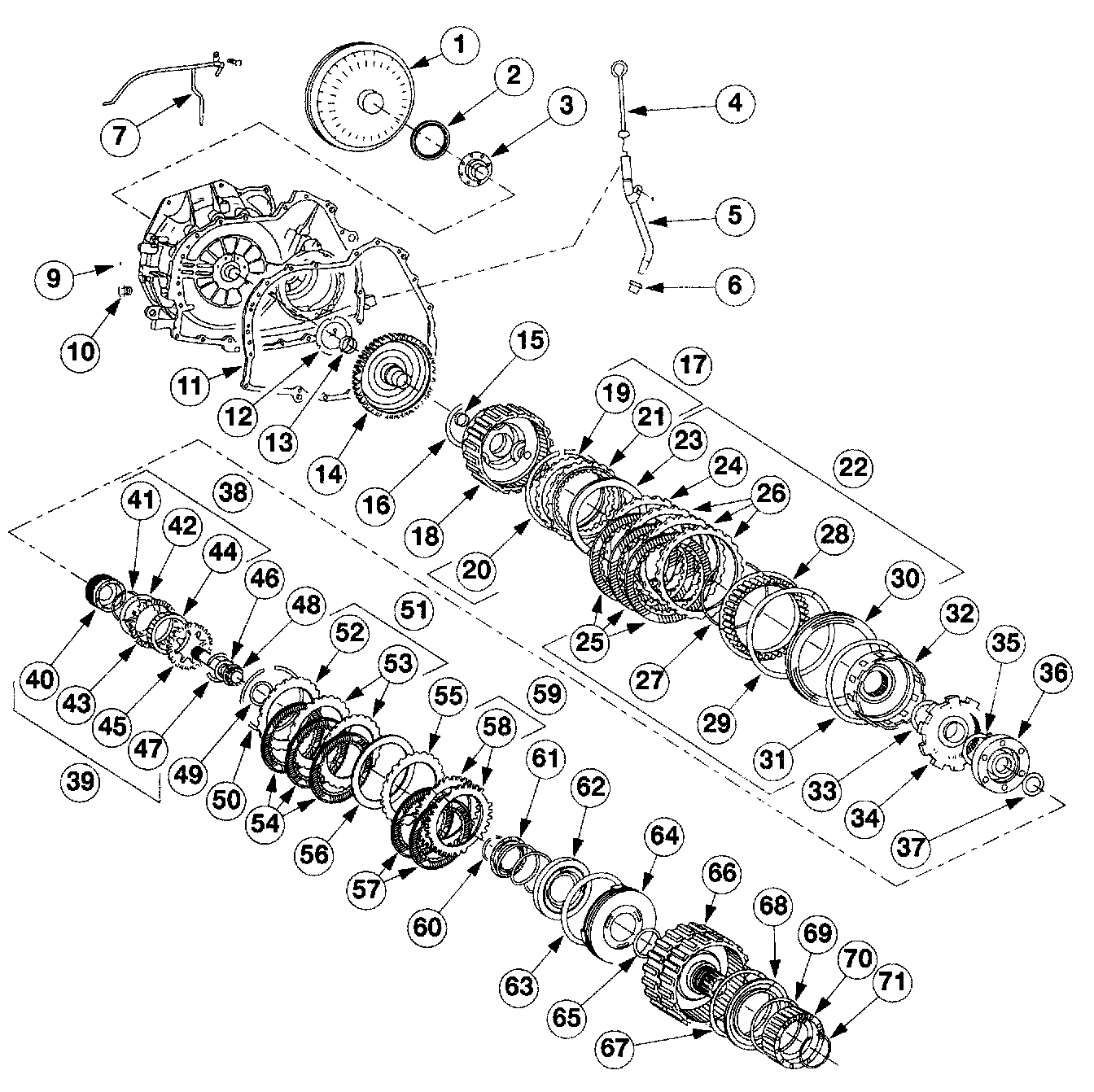

2 Of3:




3 Of 3:





Housing, clutches, torque converter
