System Diagram

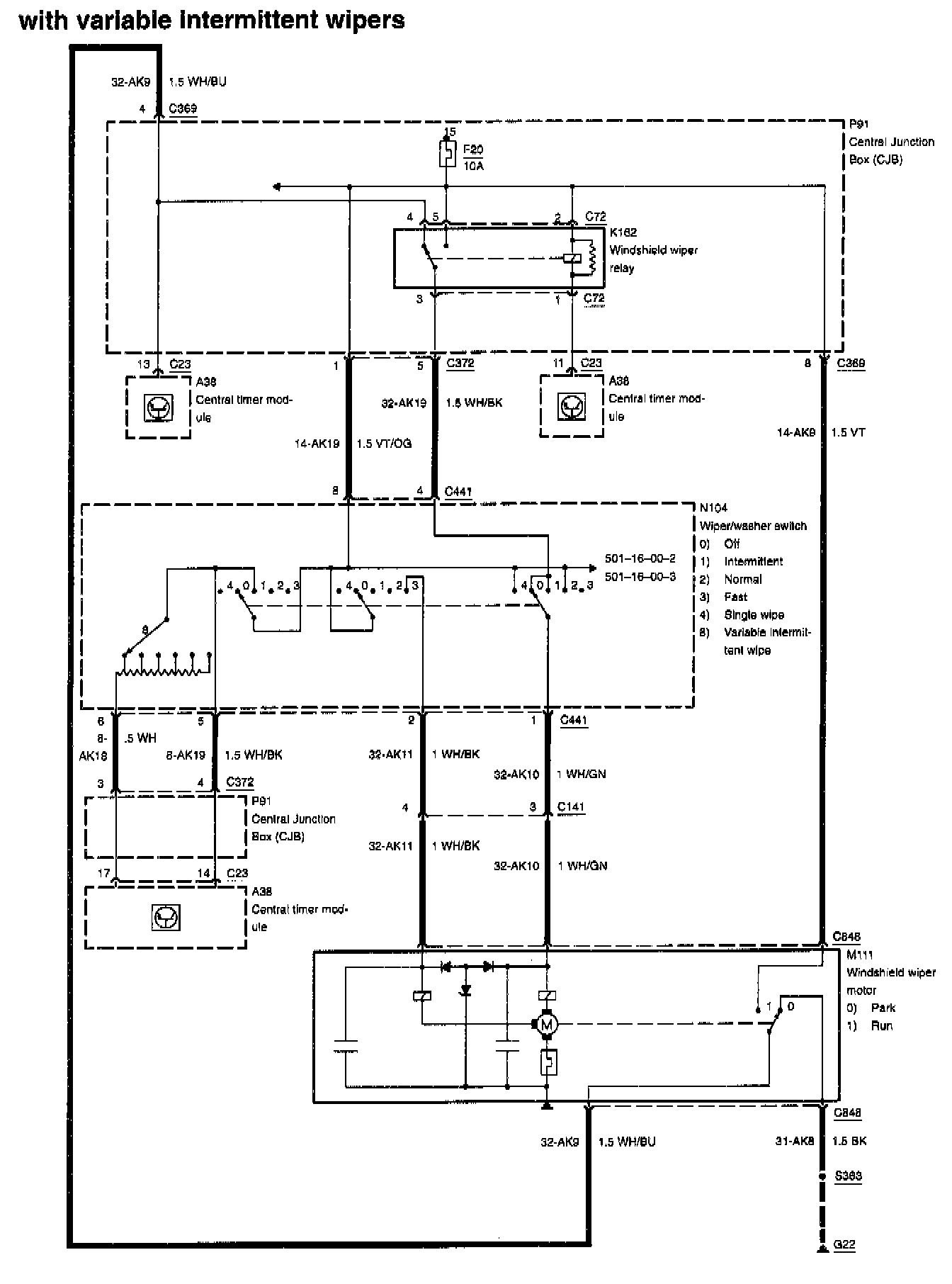

Diagram 501-16-00-1:







Central Junction Box
Central Timer Module
Fuse F20
Windshield Wiper Motor
Windshield Wiper Relay
Wiper/Washer Switch

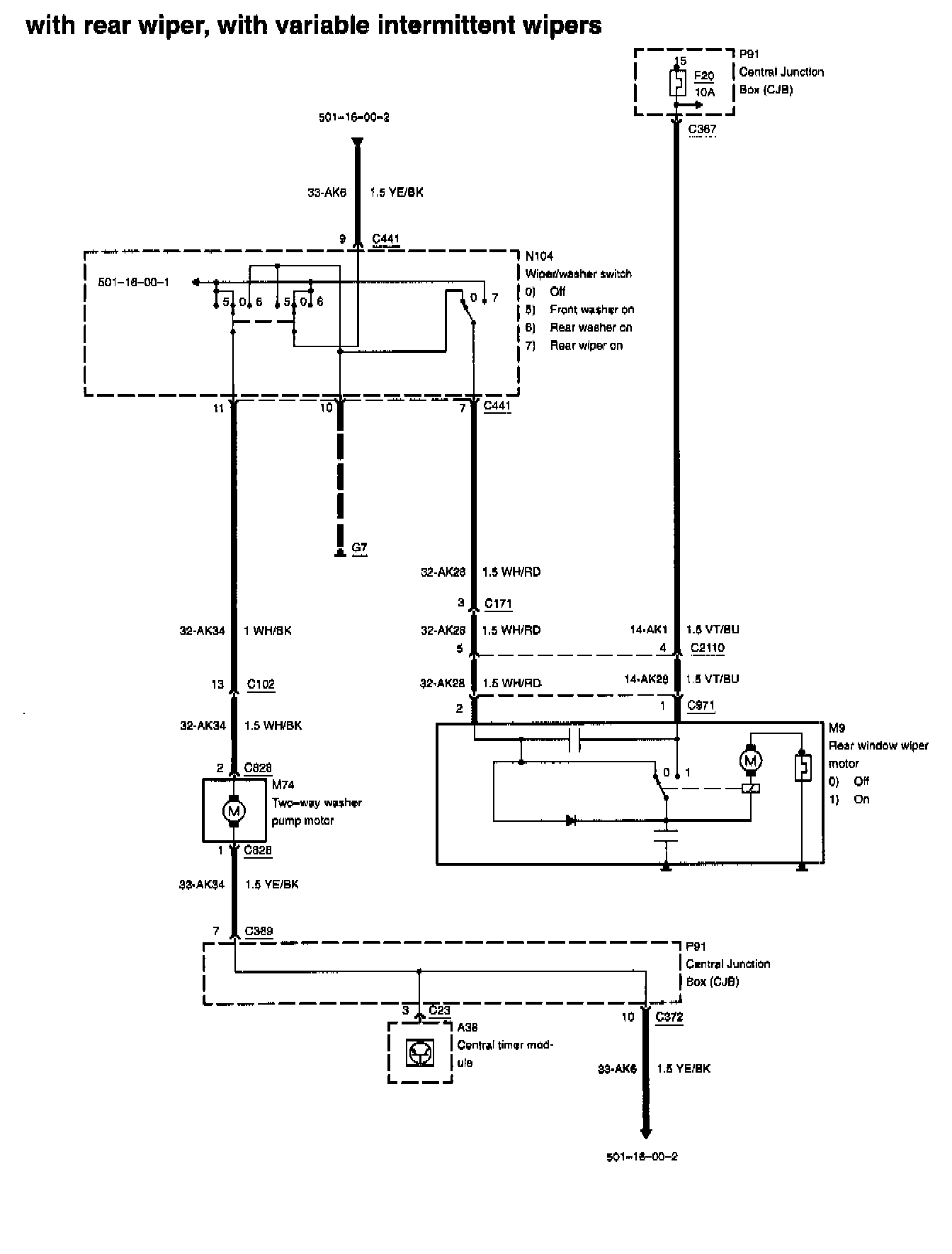

Diagram 501-16-00-2:







Central Junction Box
Central Timer Module
Fuse F20
Rear Window Wiper Motor
Two-Way Washer Pump Motor
Wiper/Washer Switch

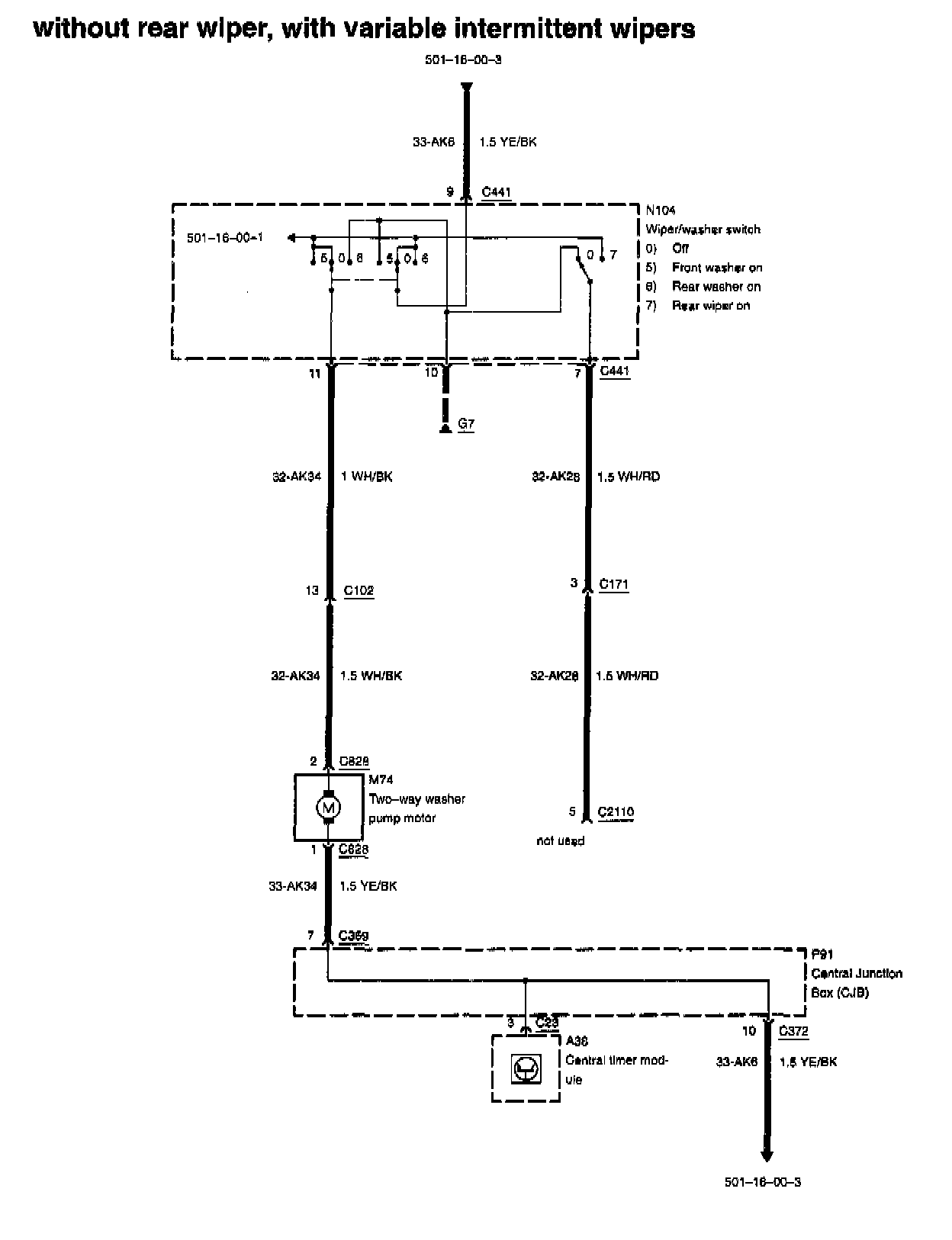

Diagram 501-16-00-3:







Central Junction Box
Central Timer Module
Two-Way Washer Pump Motor
Wiper/Washer Switch
