Receiver And Audio Media Player
Receiver And Audio Media Player
DETAILED DIAGRAMS

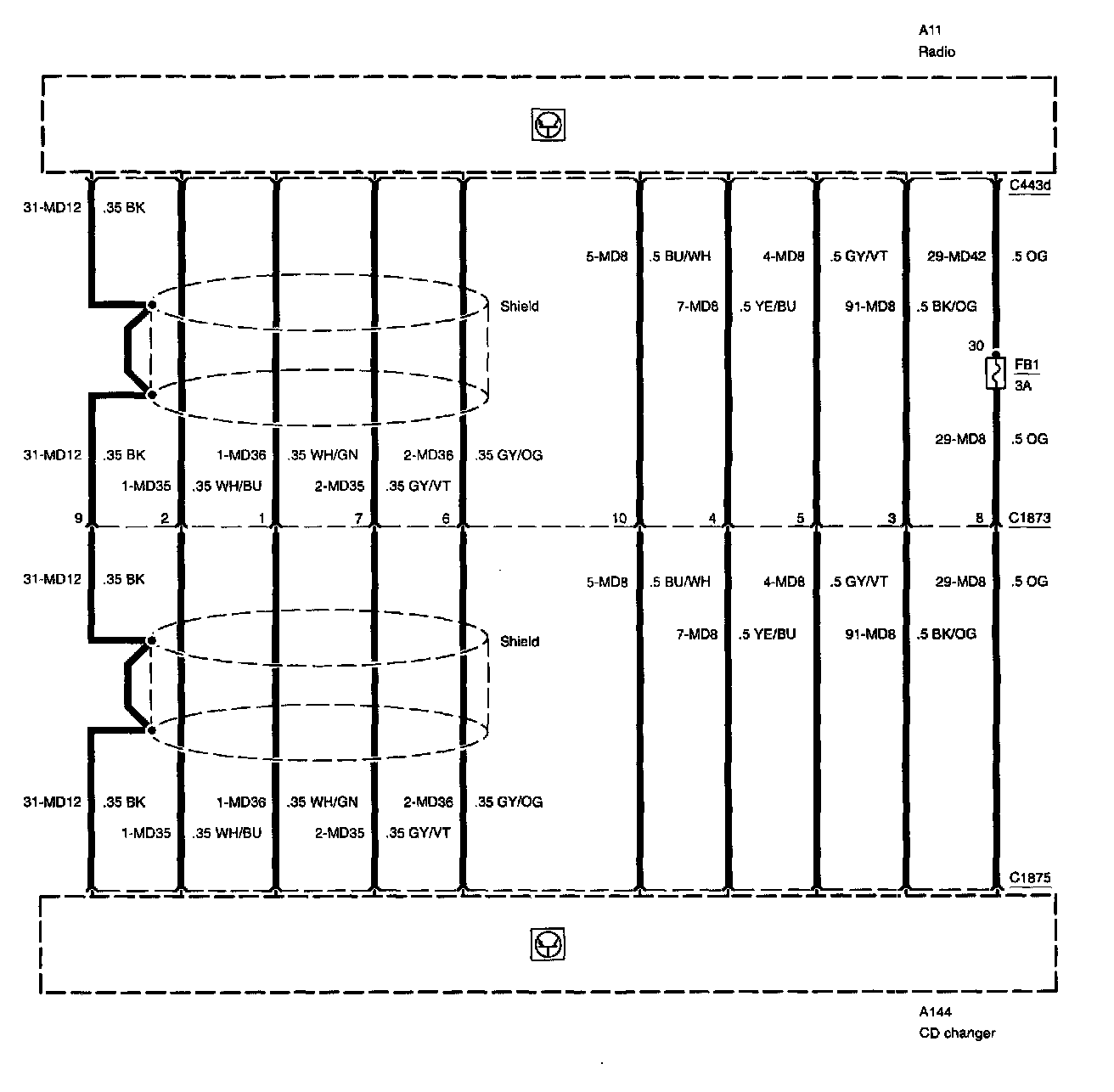

Diagram 415-01-00-1:

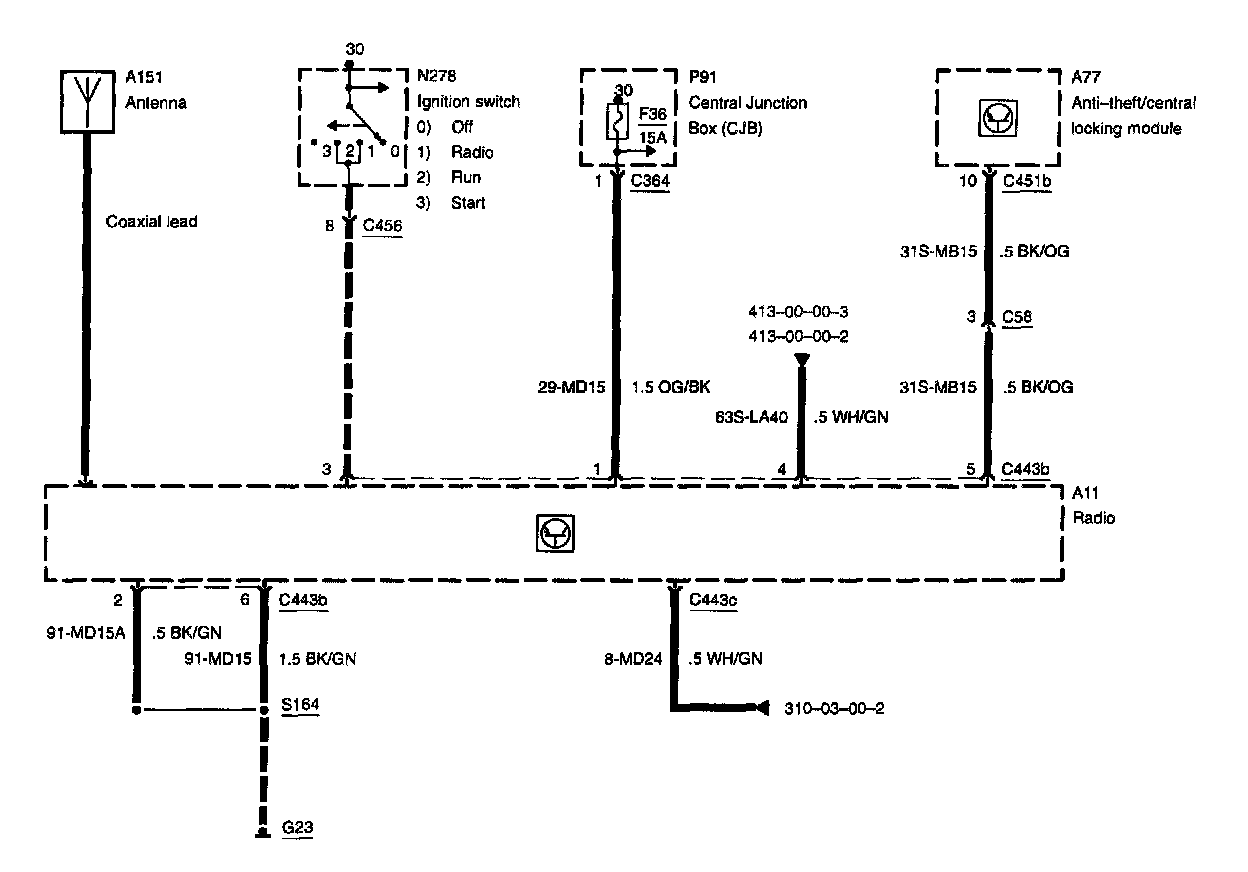

Diagram 415-01-00-2:
RELATED DIAGRAMS
Diagram 310-03-00-2:
Diagram 413-00-00-2:
Diagram 413-00-00-3:
