Cigarette Lighter
Cigarette Lighter
DETAILED DIAGRAM

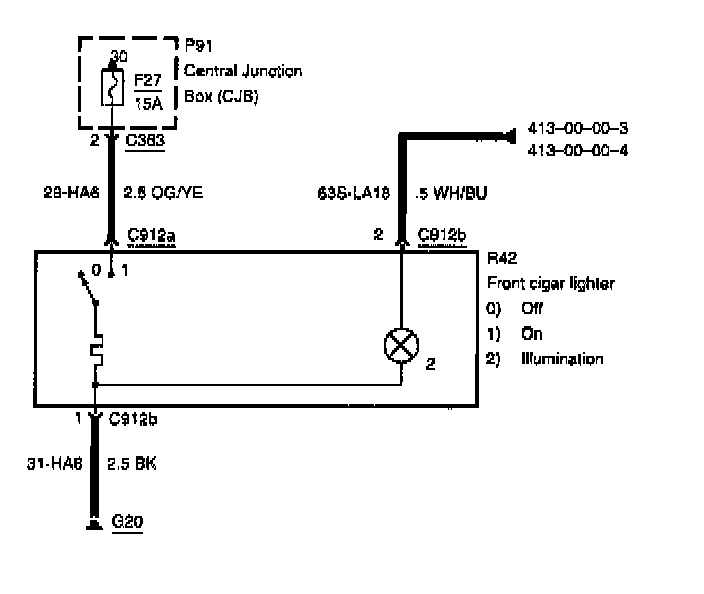

Diagram 501-12-00-1:
RELATED DIAGRAMS
Diagram 413-00-00-3:
Diagram 413-00-00-4:
