Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Antilock Brake System >> Anti-Lock Control

Anti-Lock Control

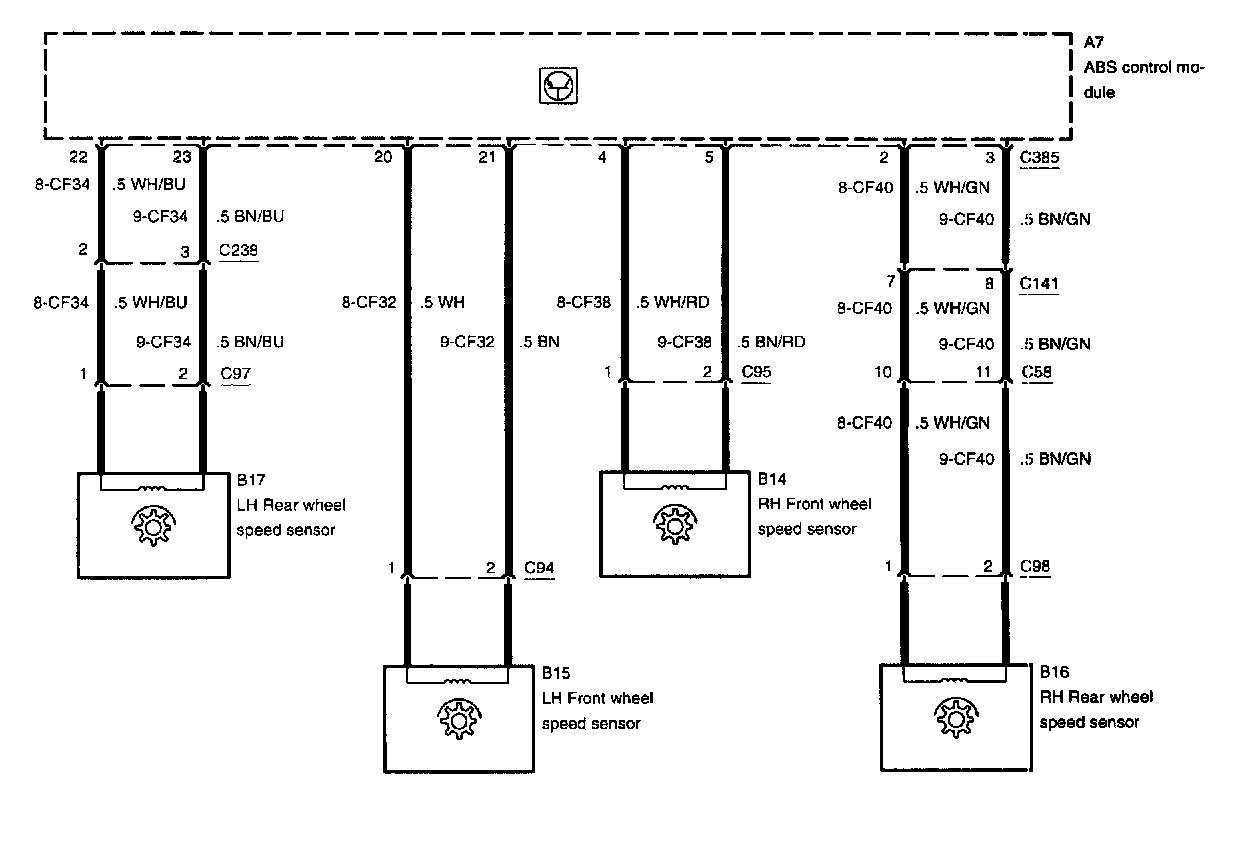

Diagram 206-09a-00-1:

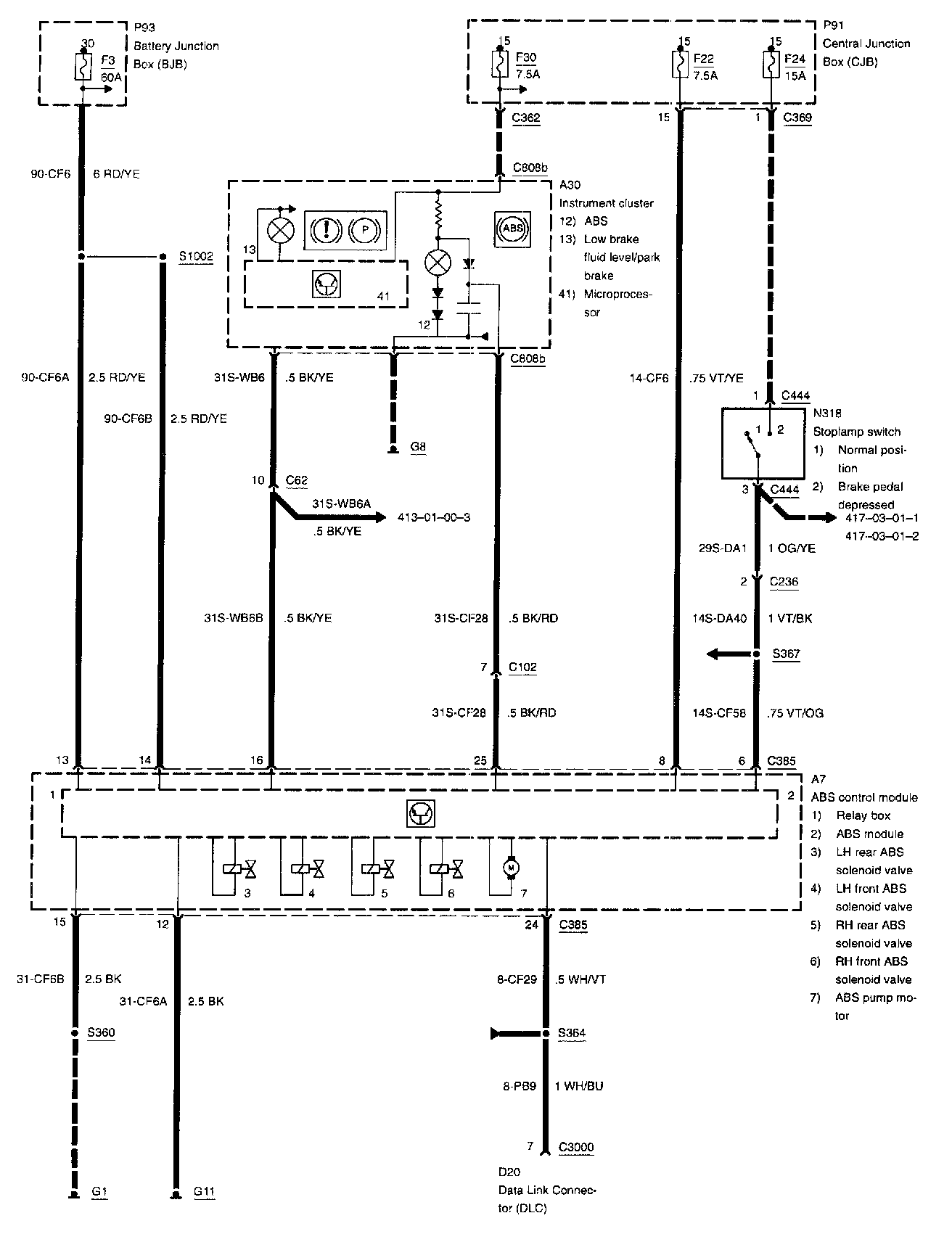

Diagram 206-09a-00-2:
