Attachment II - Labor and Parts Information

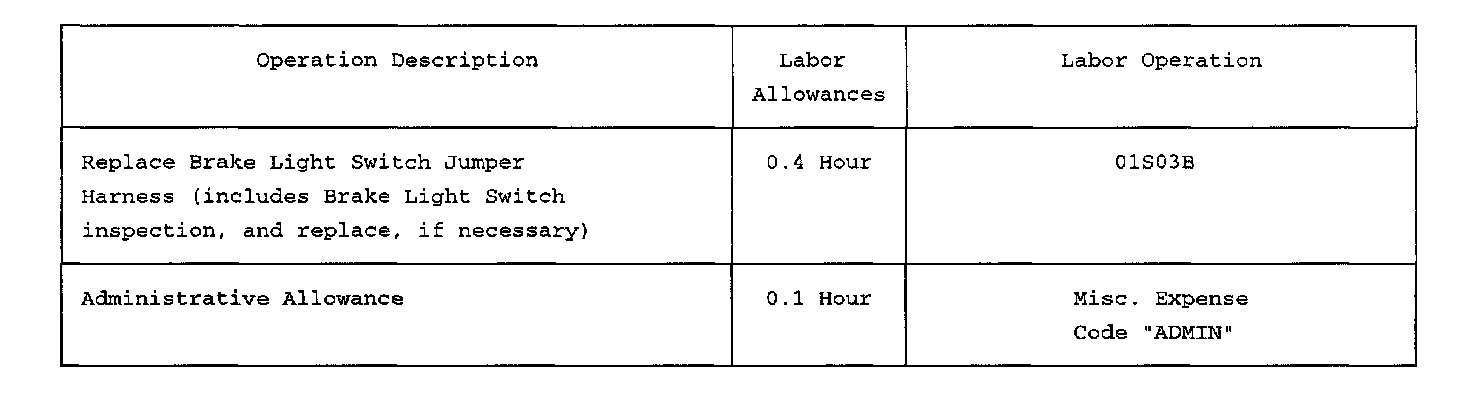

LABOR ALLOWANCES

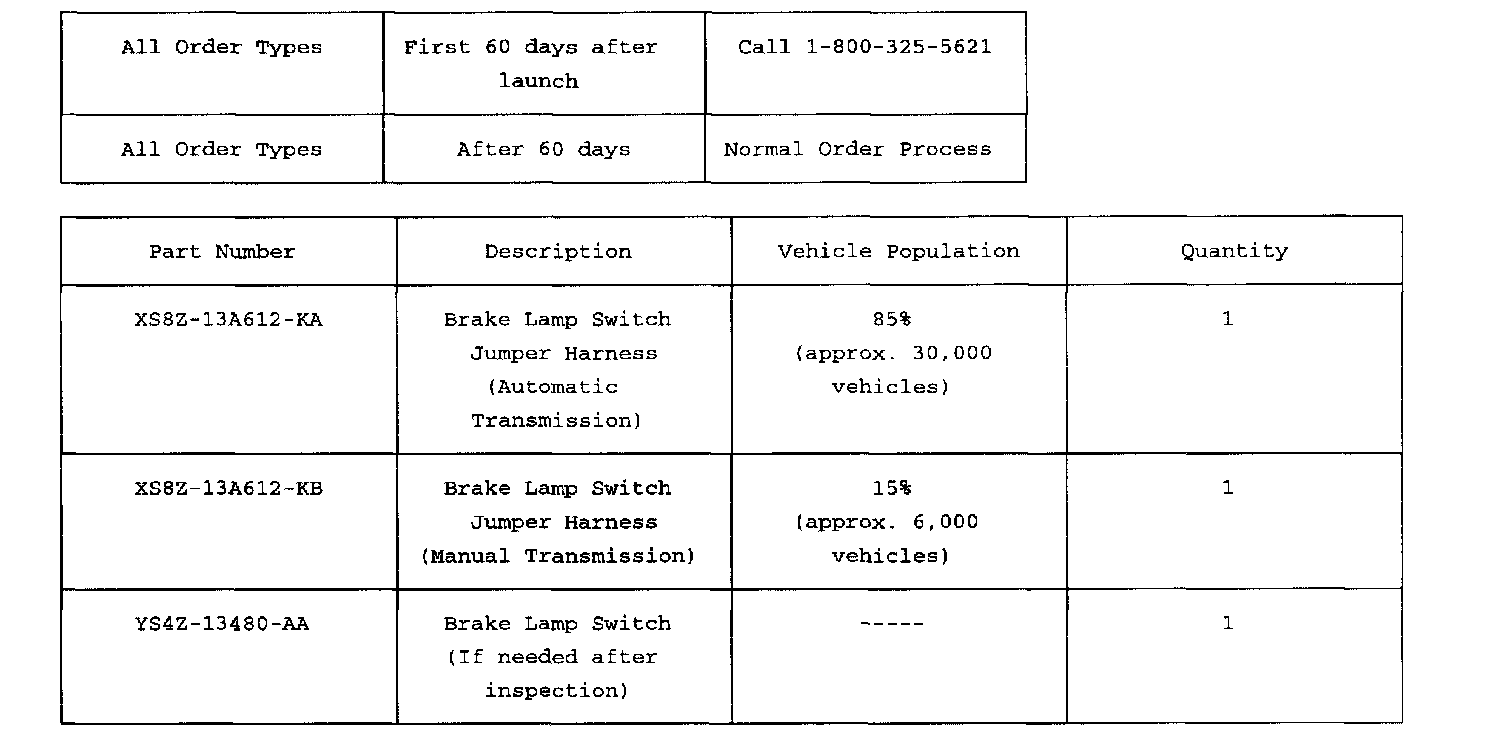

PARTS REQUIREMENTS

Parts Ordering Information





Parts will not be direct shipped for this recall. Dealers must call the Recall Hotline at 1-800-325-5621 to order parts. When calling for parts, be prepared to provide your P&A code and the VIN of the vehicle. Each vehicle involved will need either the harness for automatic transmission (85% of the population) or the harness for the manual transmission (only 15% of the population). After the specified inspection is completed, it may also be necessary to install a Brake Light Switch. This process will remain in effect for 60 days after launch. After that time, normal order processing will begin.

DOR/COR

DOR/COR Number 50216 identifies parts ordered for this campaign through the Recall Hotline (1-800-325-5621).

DEALER PRICE

For latest prices, refer to:

^ DOES II

^ Updated Price Book

EXCESS STOCK RETURN

Excess stock returned for credit must have been purchased from Ford Customer Service Division in accordance with Policy Procedure Bulletin 4000.
