Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection >> Pinpoint Tests >> A

A

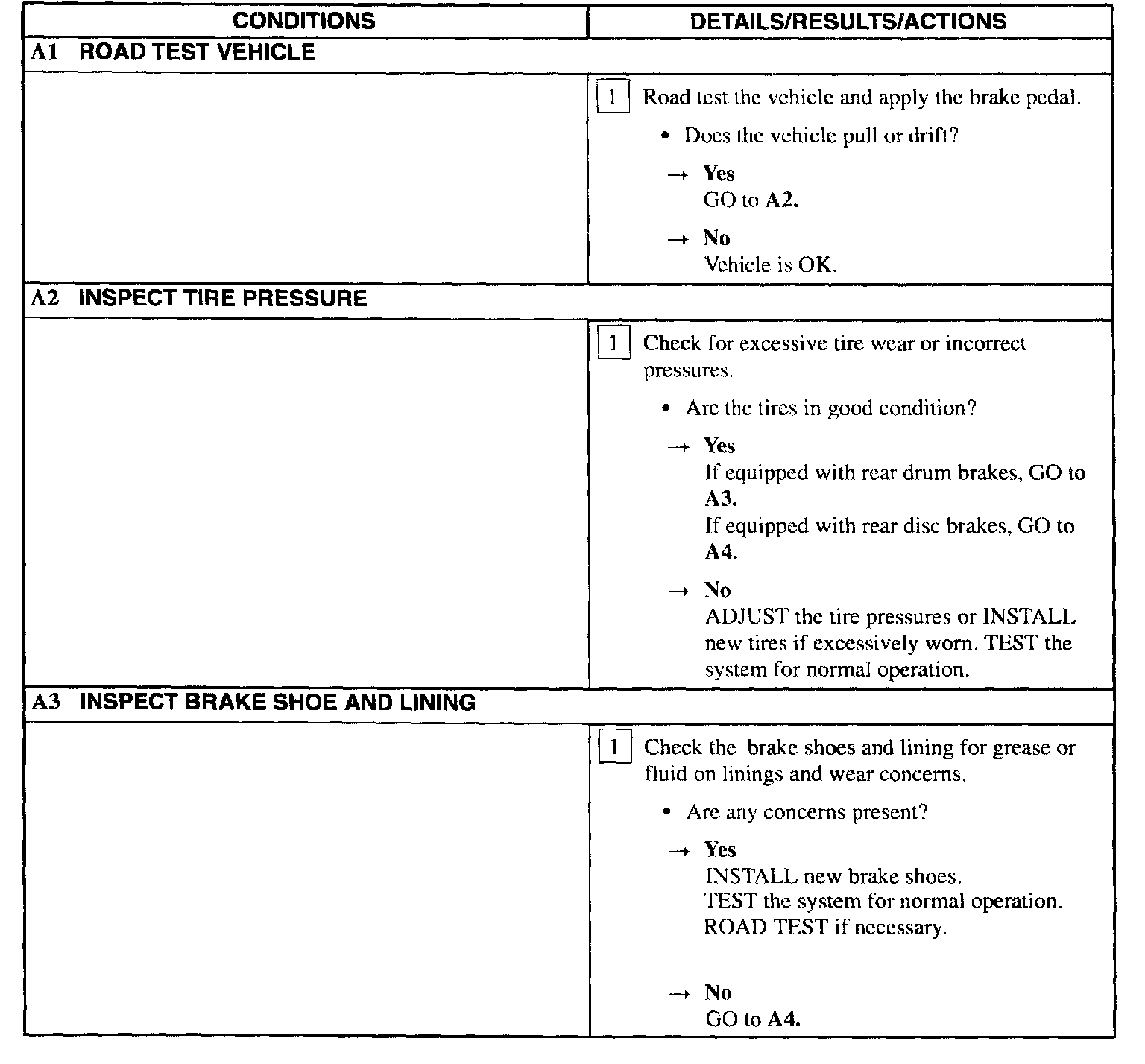

Test A1 - A3:




Test A4 - A6:

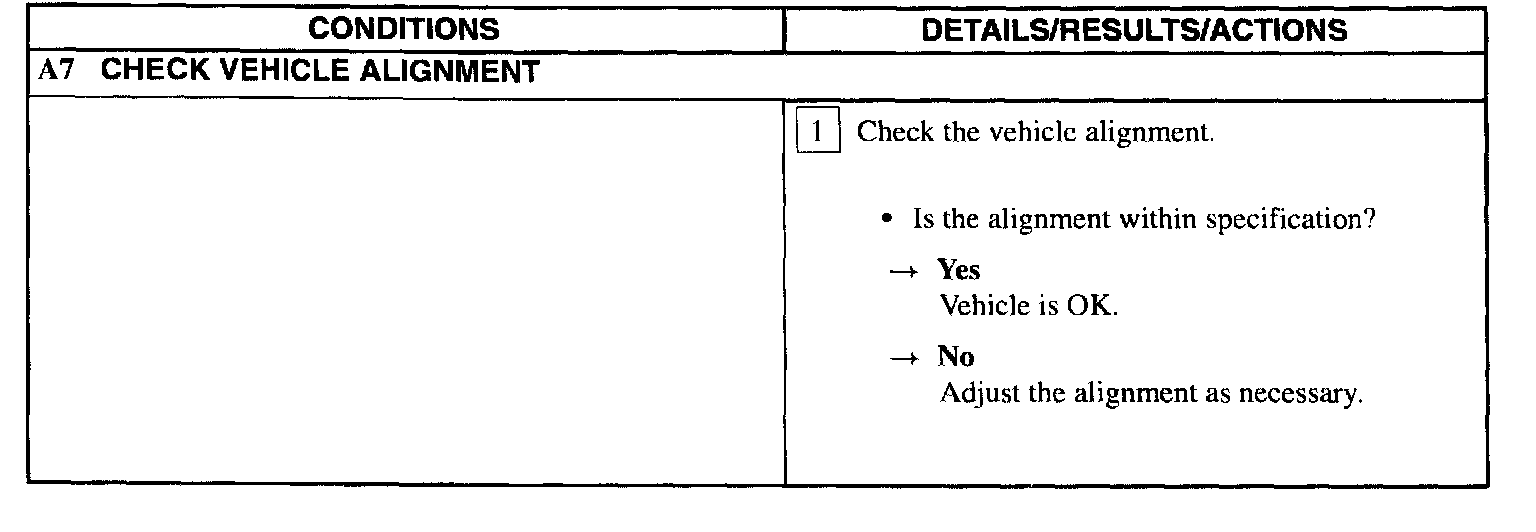

Test A7:
