Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> J Check Vehicle Component Mounting >> Without Traction Control

Without Traction Control

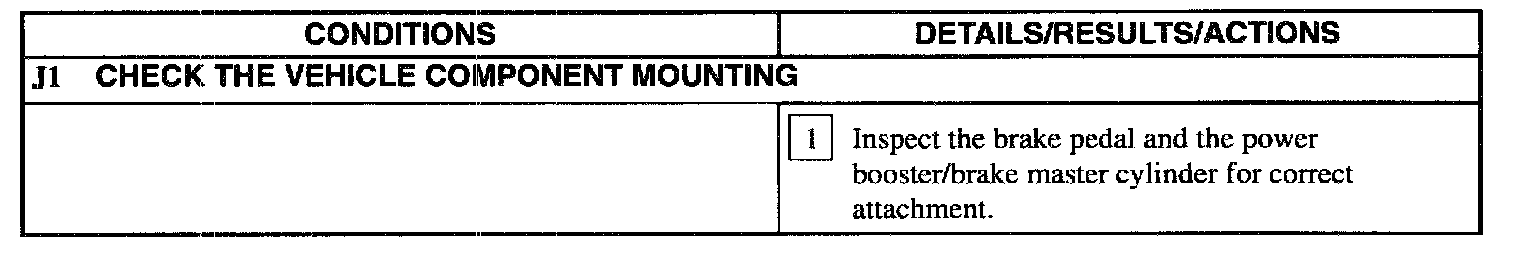

Test J1:

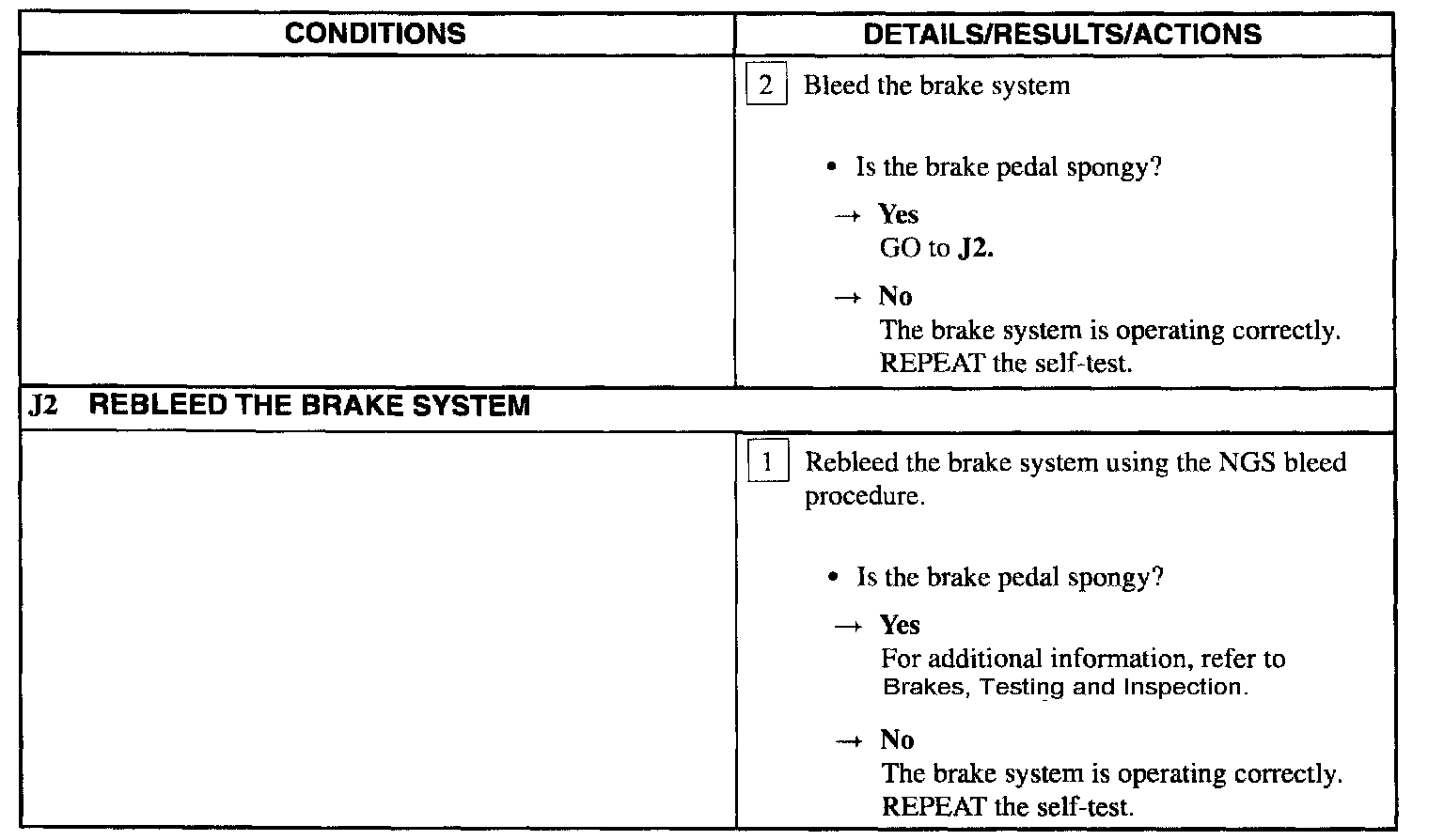

Test J1 - J2:
