Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> C Checking for Open Circuits >> Without Traction Control

Without Traction Control

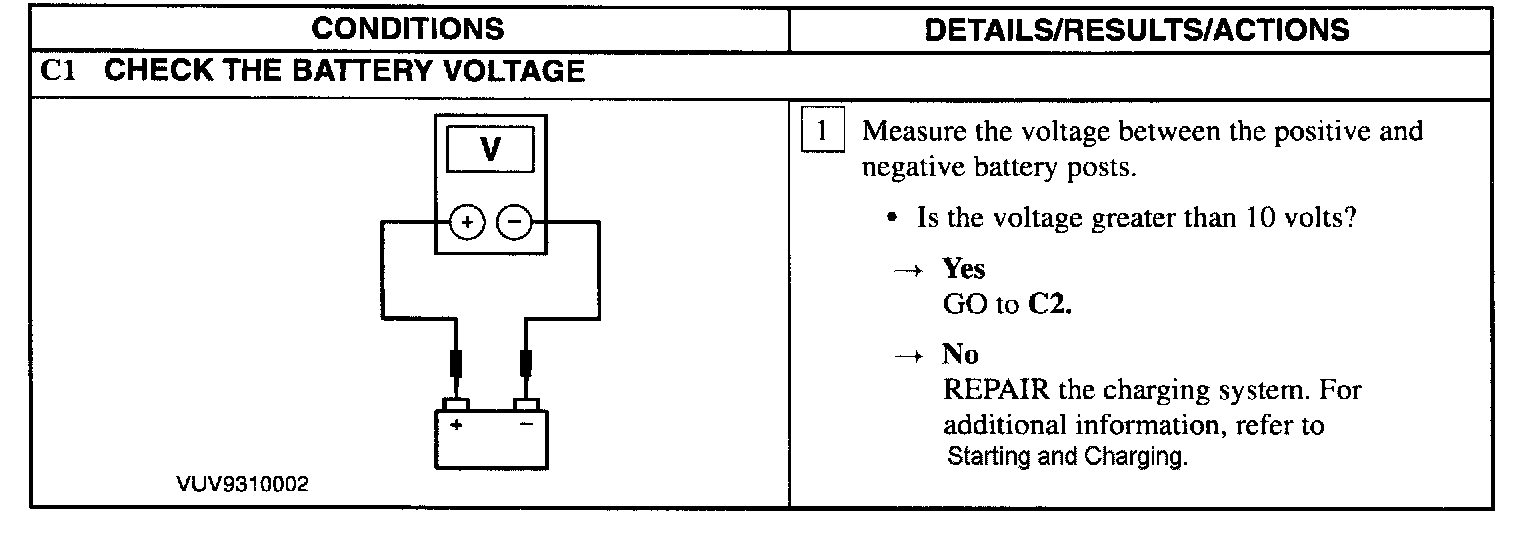

Test C1:

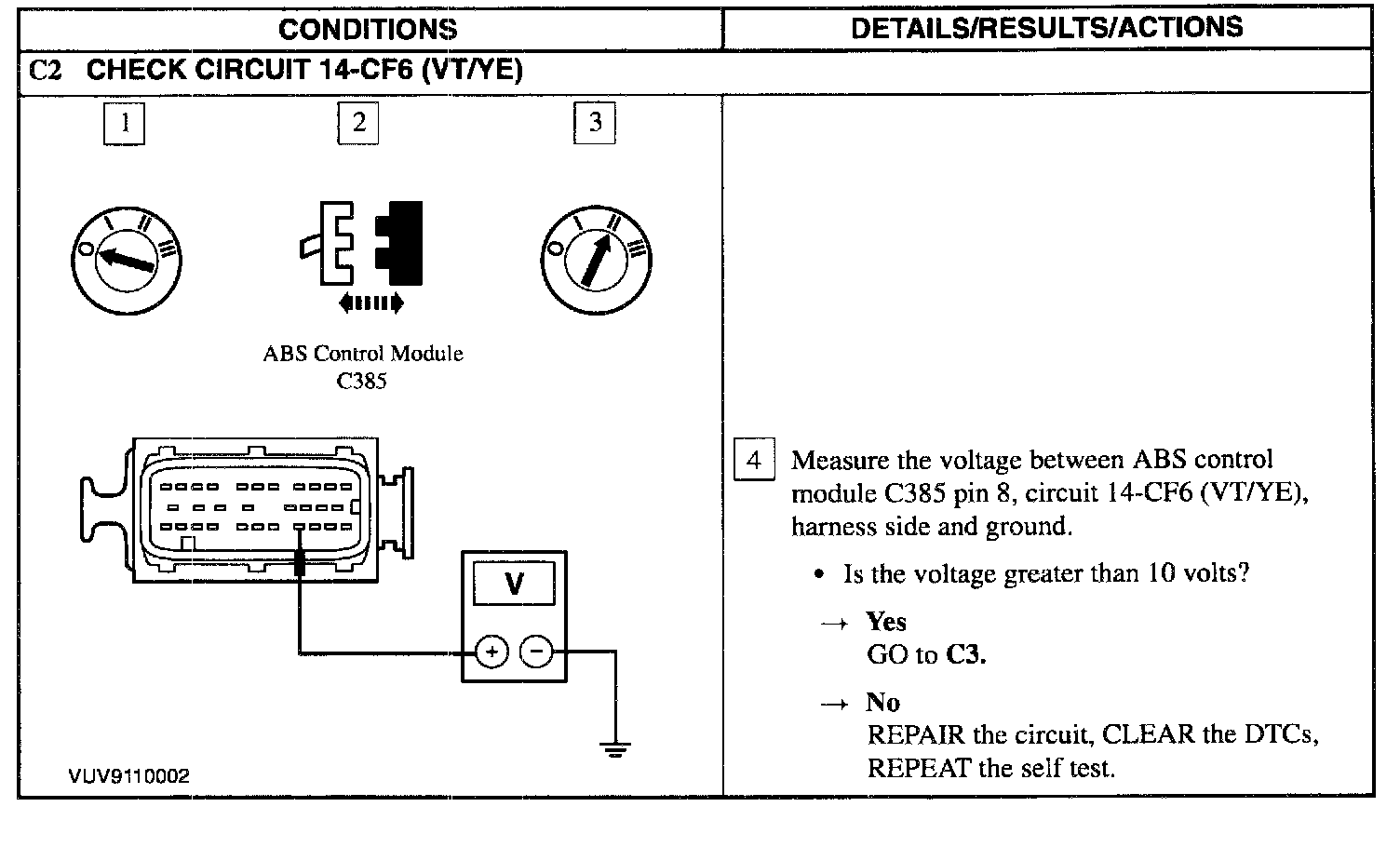

Test C2:

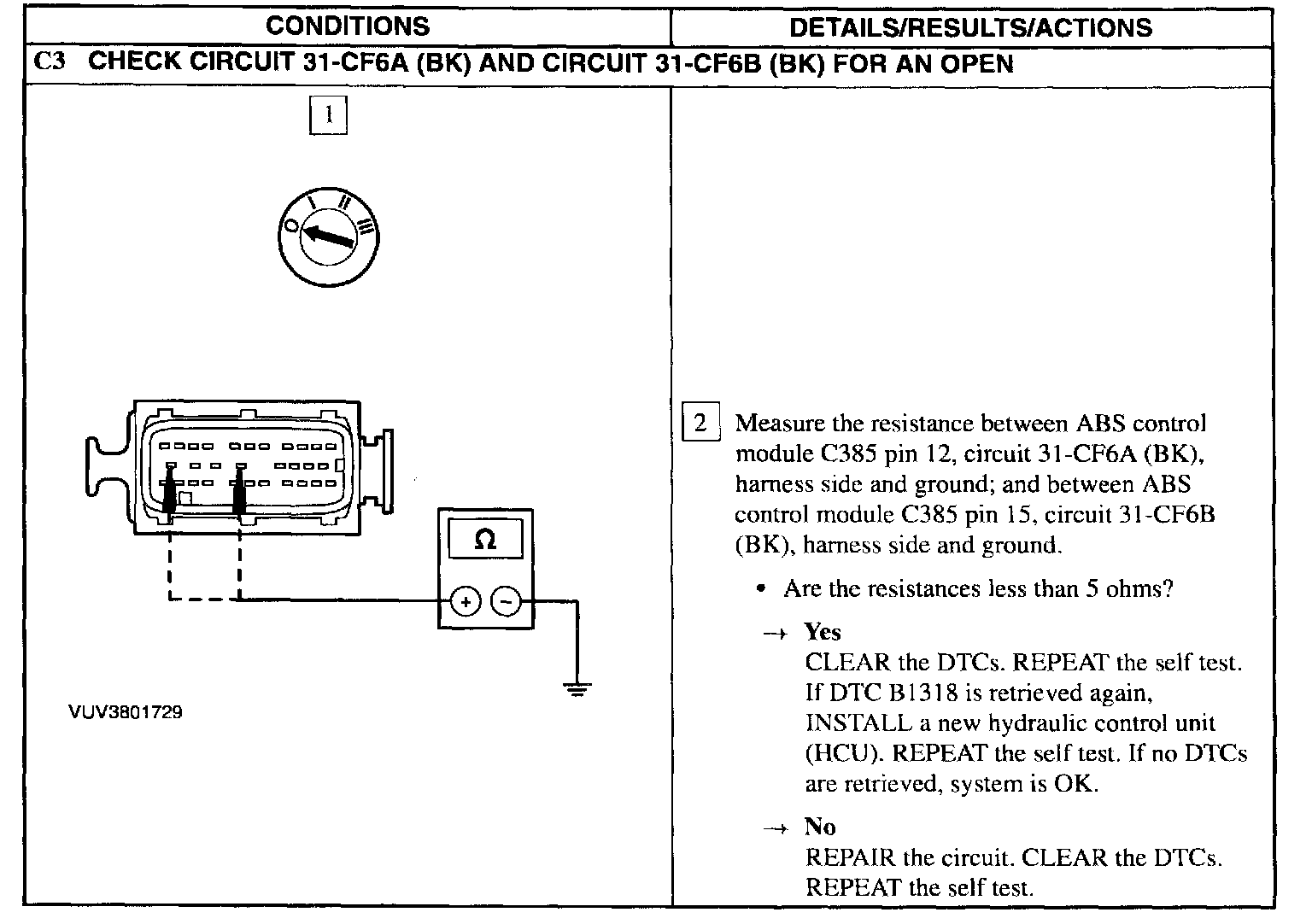

Test C3:
