Home >> Mercury >> 1999 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> E: Power Seat Does Not Move Horizontally or Vertically

E: Power Seat Does Not Move Horizontally or Vertically

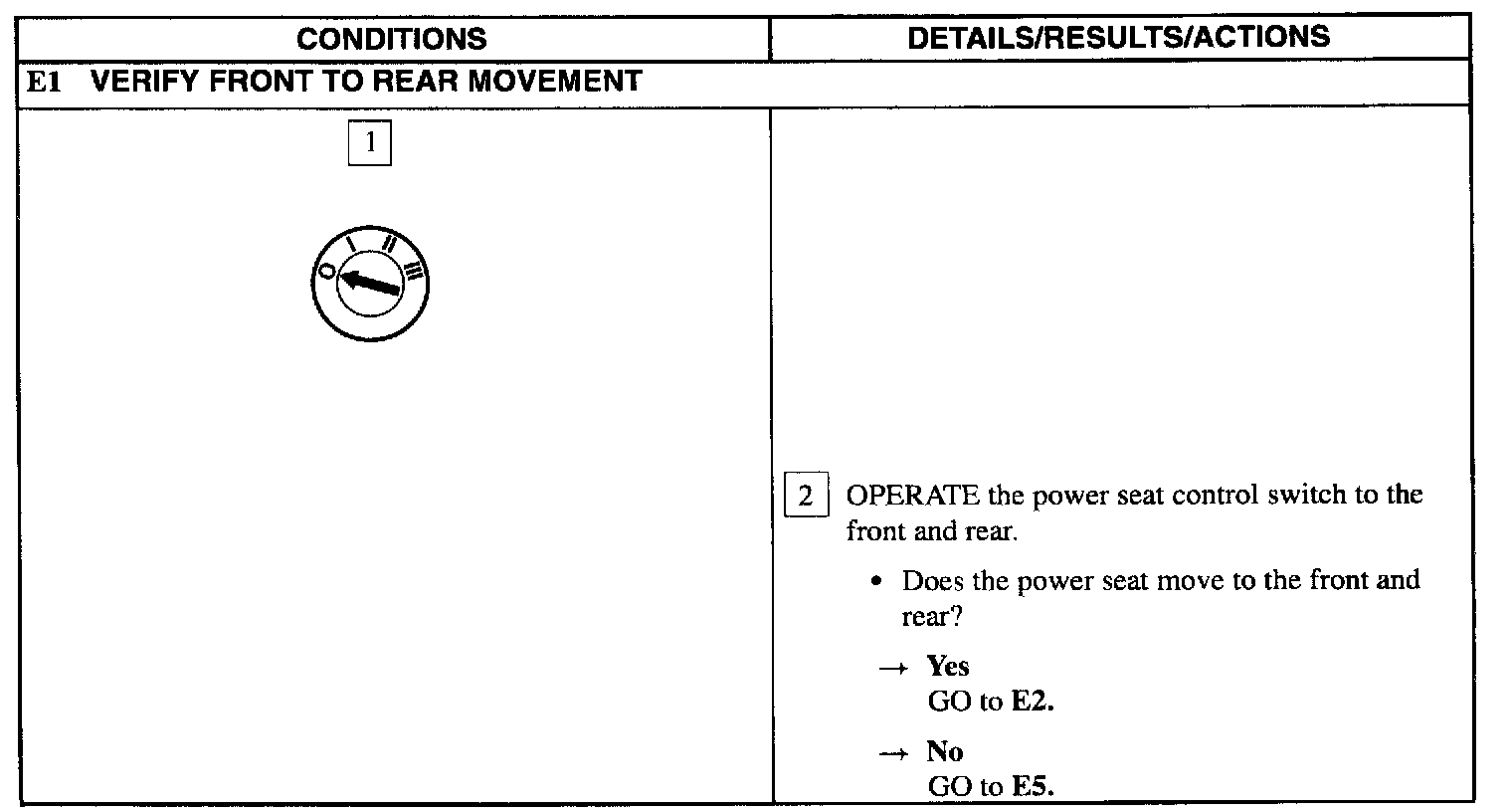

E1:

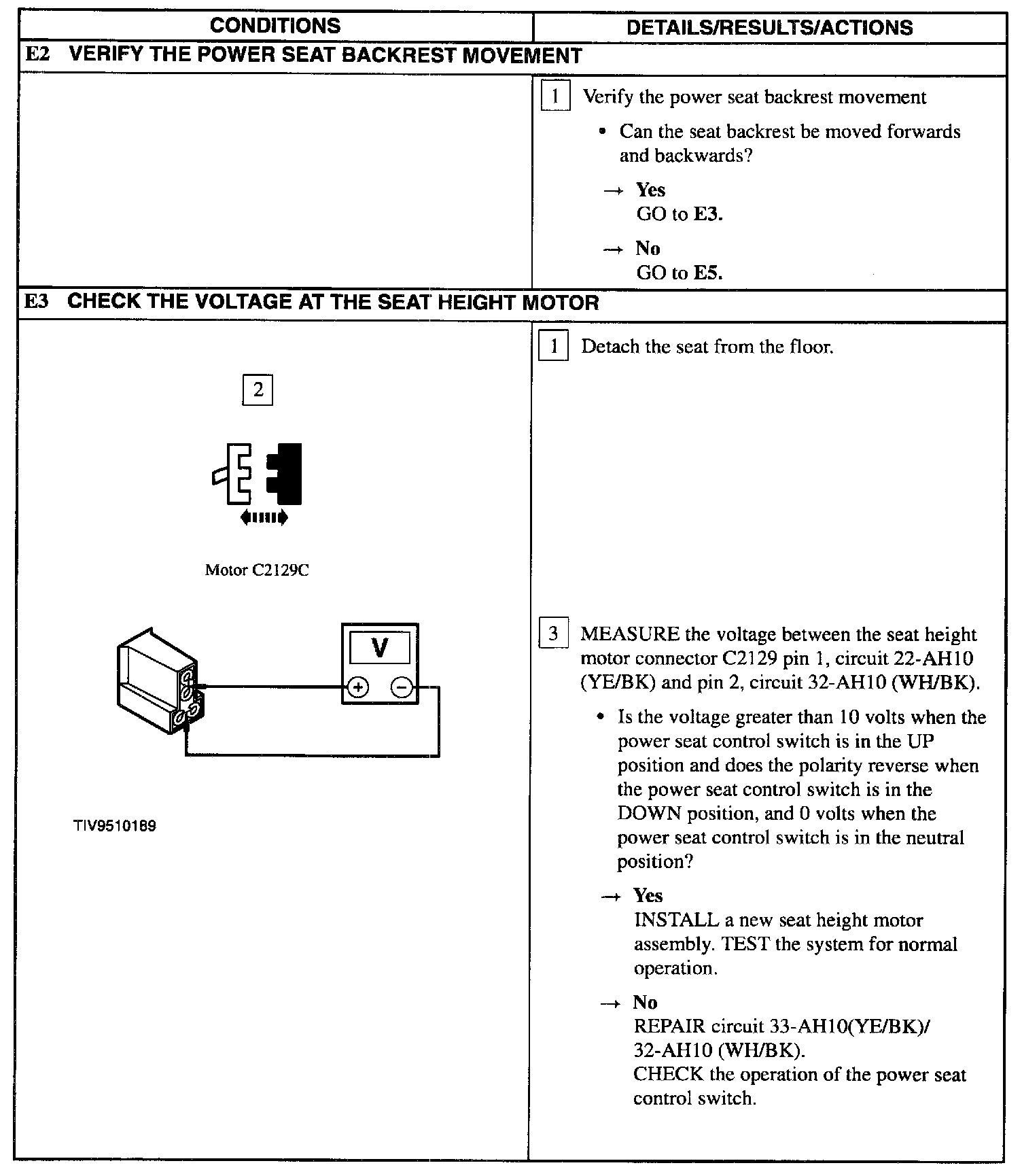

E2 - E3:

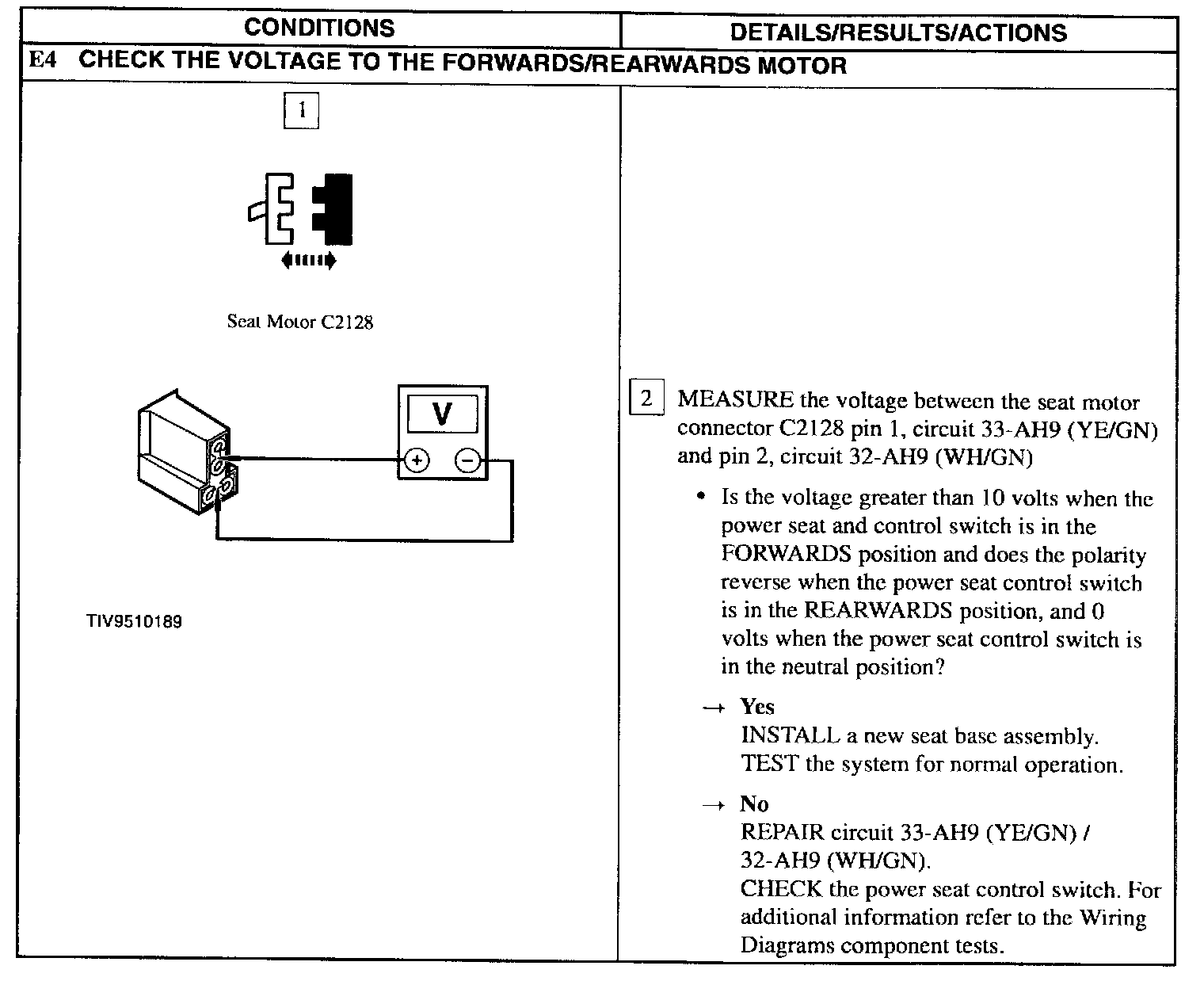

E4:






E5:
