Front

REMOVAL
1. Remove the headliner.







2. Detach the drain hose from the roof opening panel.

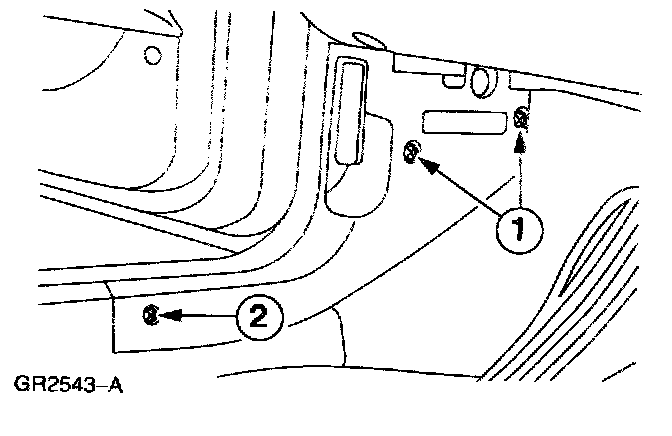

3. Detach the scuff plate.
1 Remove the clips.
2 Remove the screws.

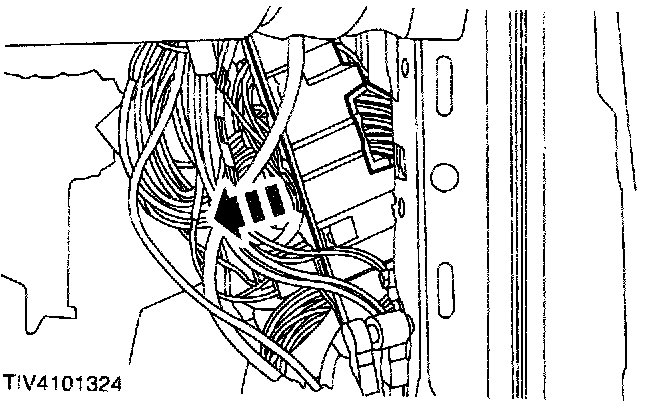

4. Detach the electrical connector box.

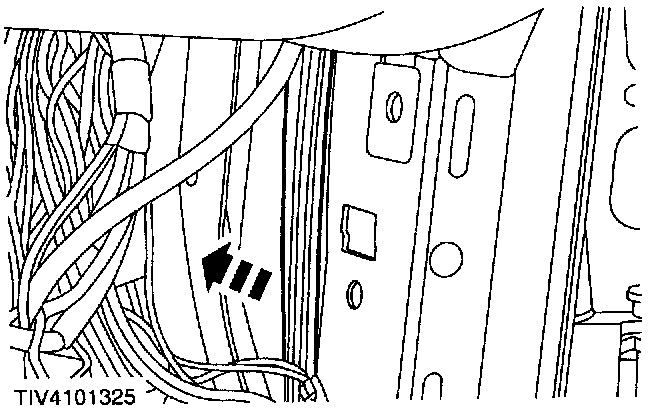

5. Detach the drain hose and remove it from the A-pillar.

INSTALLATION
1. To install, reverse the removal procedure.
