C-Pillar Trim Panel

REMOVAL
1. Remove the B-Pillar trim panel.
2. Remove the rear quarter trim panel.

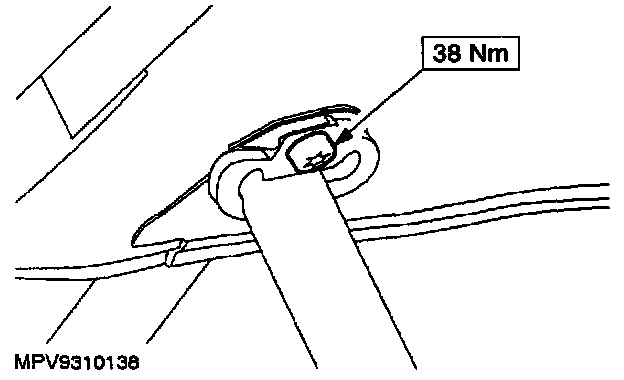

3. Detach the rear safety belt top anchor.
1 Open the cover.
2 Remove the bolt.
3 Detach the top anchor.

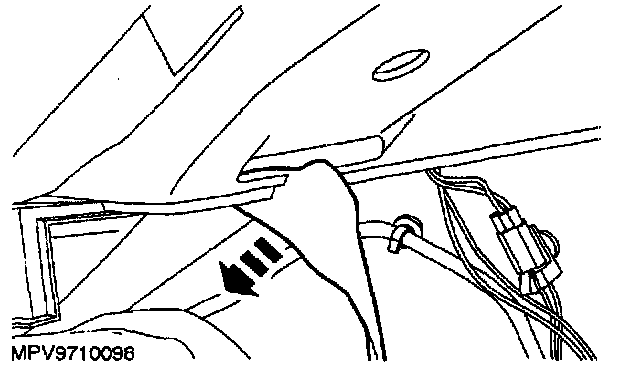

4. Remove the safety belt from the trim panel.

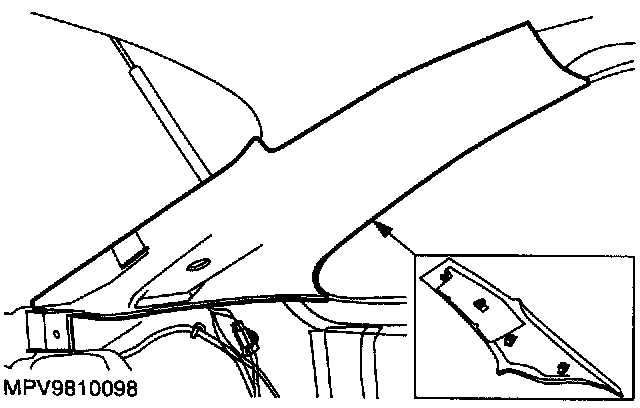

5. Remove the trim panel.

INSTALLATION







1. To install, reverse the removal procedure.
