B-Pillar Trim Panel

REMOVAL
1. Remove the A-Pillar trim panel.
2. Remove the rear quarter trim panel.

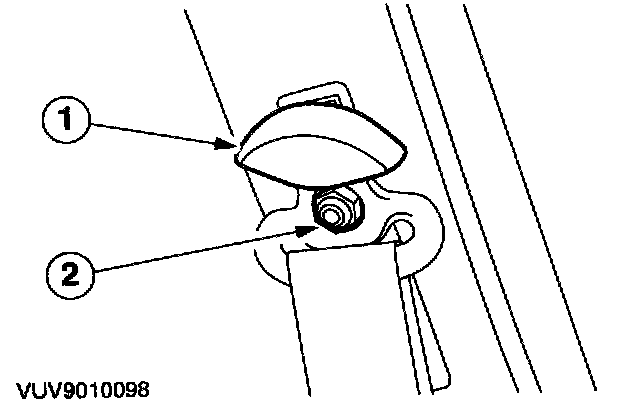

3. Detach the safety belt top anchor.
1 Remove the cover.
2 Remove the nut.

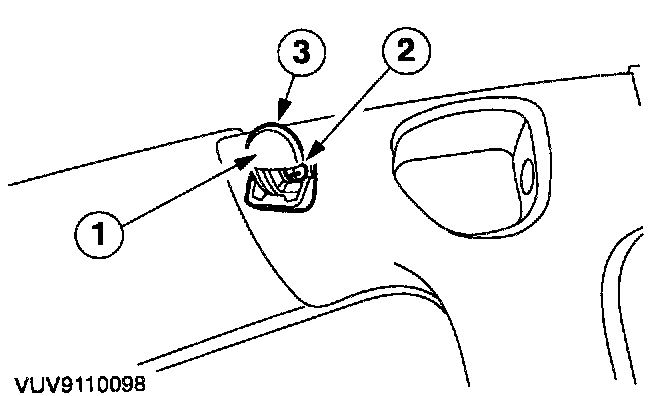

4. Remove the coat hook.
1 Depress the hook.
2 Remove the screw.
3 Remove the hook.

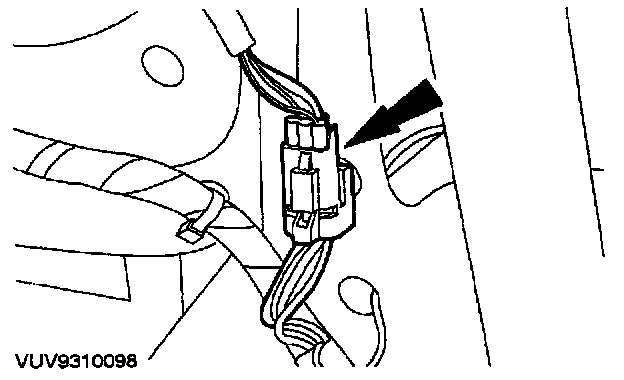

5. Disconnect the interior scan sensor electrical connector (if equipped).

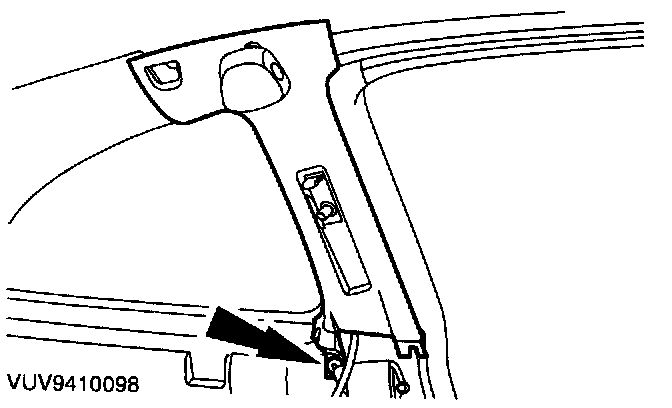

6. Remove the B-pillar trim panel screw.

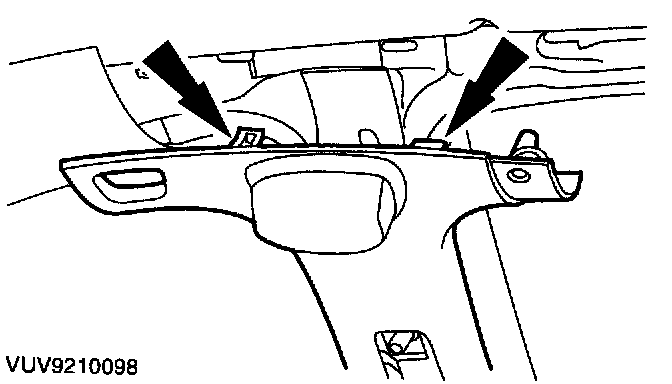

7. Remove the B-pillar trim panel.

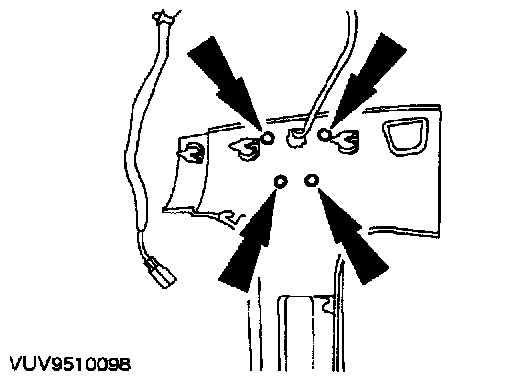

8. Remove the interior scan sensor (if equipped).

NOTE: Carefully pass the wiring harness through the trim panel.

INSTALLATION

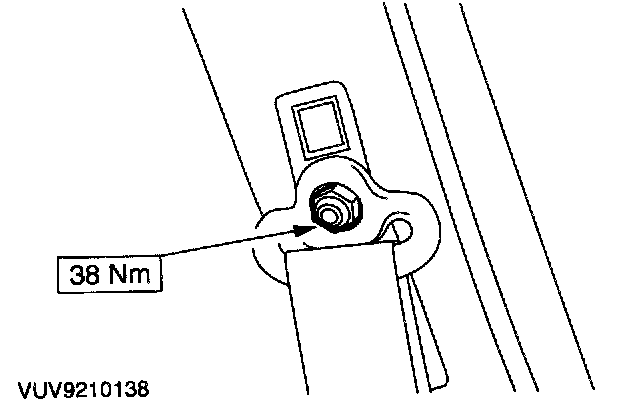

1. To install, reverse the removal procedure.
