A-Pillar Trim Panel

REMOVAL







1. Remove the instrument panel side trim.

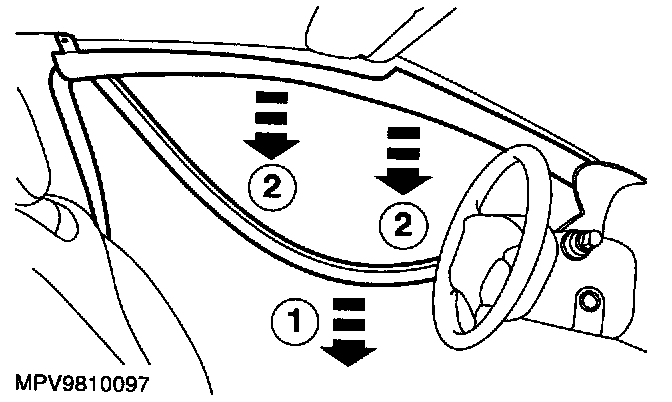

2. Remove the A-pillar trim panel.
1 Detach the door opening weatherstrip.
2 Remove the A-pillar trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
