Overhead Console

REMOVAL
1. Disconnect the battery ground cable.







2. Disconnect the electrical connectors.

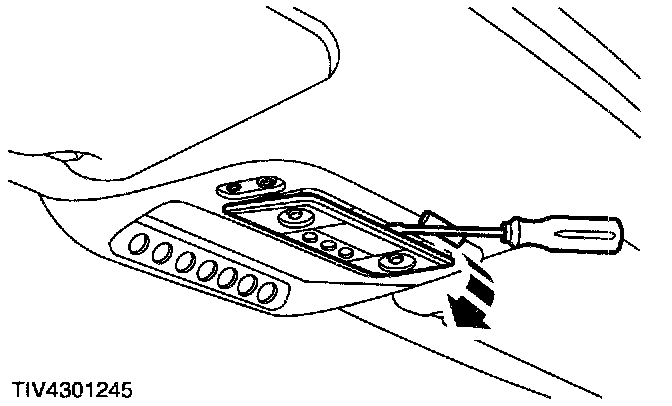

NOTE: Remove the interior lamp as a unit. Ease out the interior lamp.

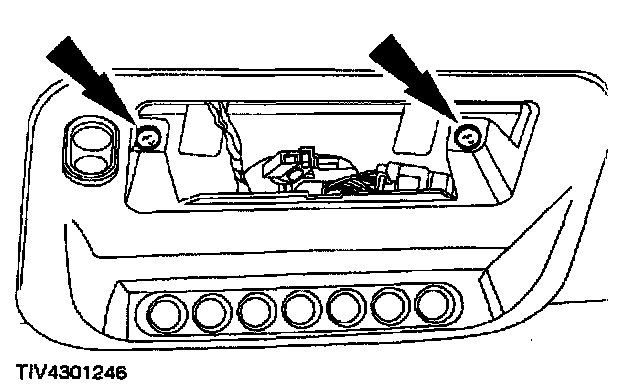

3. Remove the overhead console screws.

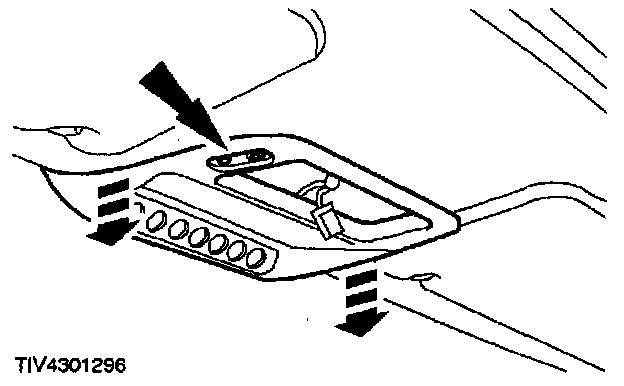

4. Remove the overhead console.
^ Apply an even downwards force to both sides of the console.
^ Disconnect the roof opening panel switch electrical connector (if equipped).
^ Disconnect the information and message center electrical connector (if equipped).

INSTALLATION
1. To install, reverse the removal procedure.
