Power Trunk / Liftgate Lock Actuator: Service and Repair

REMOVAL
1. Remove the liftgate latch.

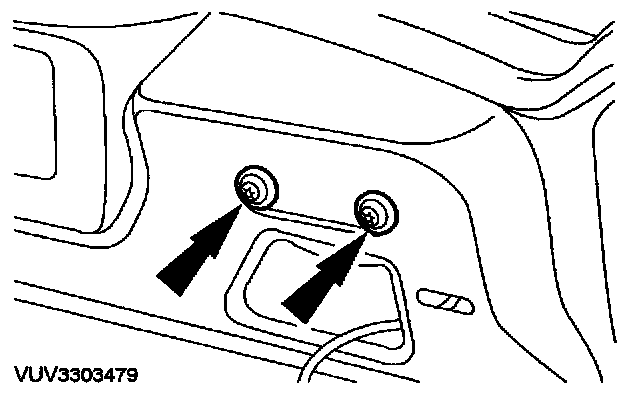

2. Remove the liftgate lock actuator bolts.







3. Remove the liftgate lock actuator.

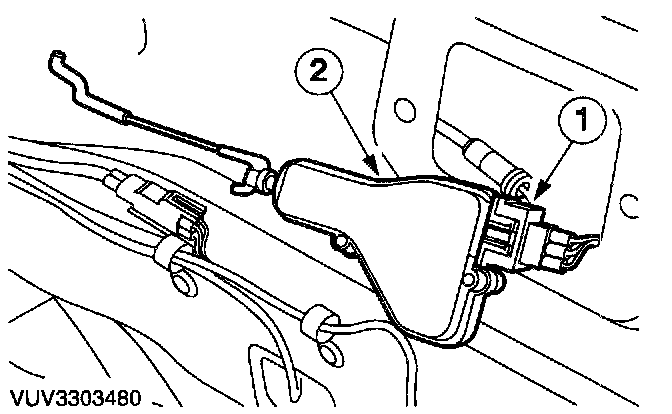

1 Disconnect the electrical connector.
2 Remove the actuator.

INSTALLATION
1. To install, reverse the removal procedure.
